Techflow Pack has been a professional automatic packaging machine manufacturer since 2006.
Product Description

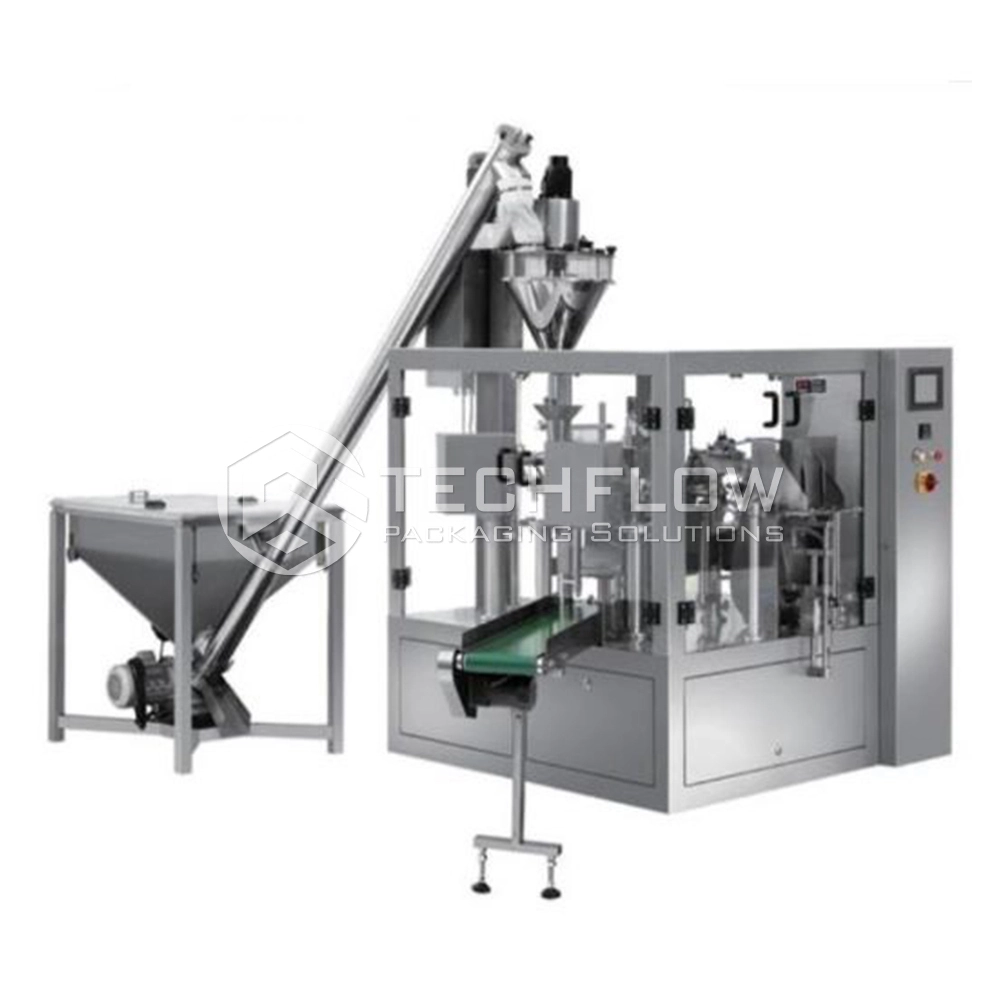

Standing Bag Powder Packing Machine also called Standing bag powder filler or Stand-up Pouch powder Packer, is mainly used for powdery or fine granule products auto forming filling sealing by the premade bags. The working method is the screw conveyor linked to the standing bag packaging machine to get powdery materials auto infeeding and conveying into Auger Filler's hopper, with screw running to auto dosing the product into pouch for auto forming filling and sealing. And the packing speed could be adjustable according to the production capacity from 10-50bags per minute.
Applications
Automatted Premade Standing Bag Powder Packing Machine is the most common dosing equipment in the powder metering and powder packaging industry. It's suitable for filling and dosing a variety of powders or fine particles such as flour, coffee powder, milk powder, tapioca flour, seasoning powder, chemical powder and other materials into preformed standing bags or gusset bags or Doypack bags with auto forming and sealing. It's widely used in food, condiments, seasoning,coffee, beverage, pharmaceutical and other industries.
Technical Features 01

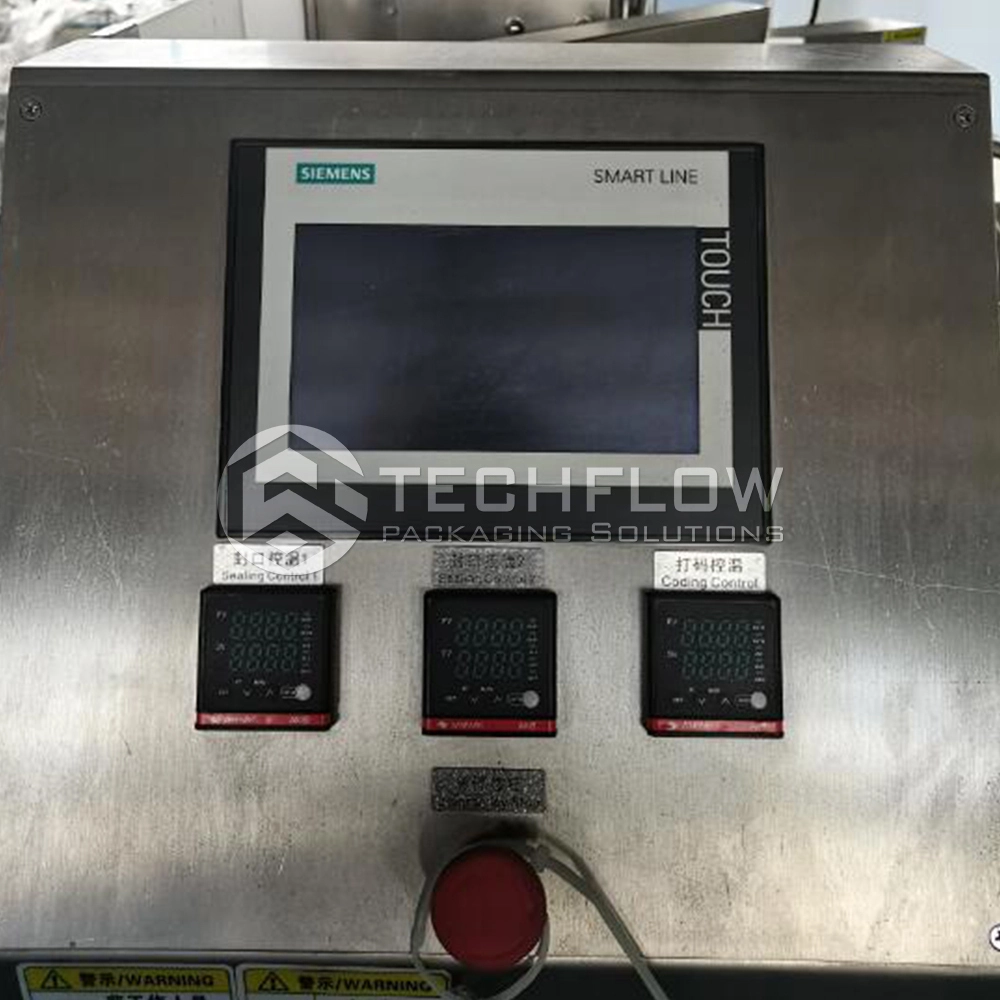

Use PLC Servo System and pneumatic control system and super touch screen to compose the drive control center which maximize the whole machine's control precision,reliability and intelligentized level.
Technical Features 02
The machine has the device with avoiding sealing empty bag and controls the non-sealing empty bag and don't waste the packaging bags.
Technical Features 03
Equipped with safety protection, comply with firm's safety management requirements.
Technical Features 04
Touch screen can store the technical parameters of various kinds of products ,it is unnecessary to reset while products changing.
Technical Parameters
Machine Model |
TFP-SP300 |
Metering method |
Screw quantitative |
Bag's application size |
(L)100-350mm, (W)80-230mm |
Production capacity |
Max 50pcs/min |
Filling volume |
100-5000ml(by screw changover) |
Gas pressure |
6-8 kg/cm2 0.3m3/min |
Power supply |
220/380V 50-60Hz, 3.5Kw |
Machine dimension |
2850x1500x175mm |
Machine weight |
800Kg |
Basic Configuration
No |
Items |
Brand |
1 |
PLC |
INOVANCE |
2 |
HMI |
INOVANCE |
3 |
Photo sensor |
SICK |
4 |
Servo motor |
INOVANCE/Delta |
5 |
Electronic parts |
Schneider |
6 |
Pneumatic parts |
Airtac |
7 |
Main structure |
S.S304 |
Company Advantages
· With carefully selected materials, our powder packaging machine have received much fame until now.
· Its quality meets the design specifications and customer's requirements.
· Through years of producing powder packaging machine, Techflow Pack can guarantee providing the most reliable products.
Company Features
· 上海利湃机械设备有限公司 focuses on the design, manufacture, sales, and service of powder packaging machine.
· The powder packaging machine production process uses intelligent technology for precise control.
· 上海利湃机械设备有限公司 continuously improves product quality and service quality in the process of accumulating experience.
Application of the Product
powder packaging machine of Techflow Pack can be widely used in various fields.
Techflow Pack always provides customers with reasonable and efficient one-stop solutions based on the professional attitude.
No.99#Shenmei Road, Pudong District, Shanghai,China
