Top Auger Capsule Filling Machine

Inquiry

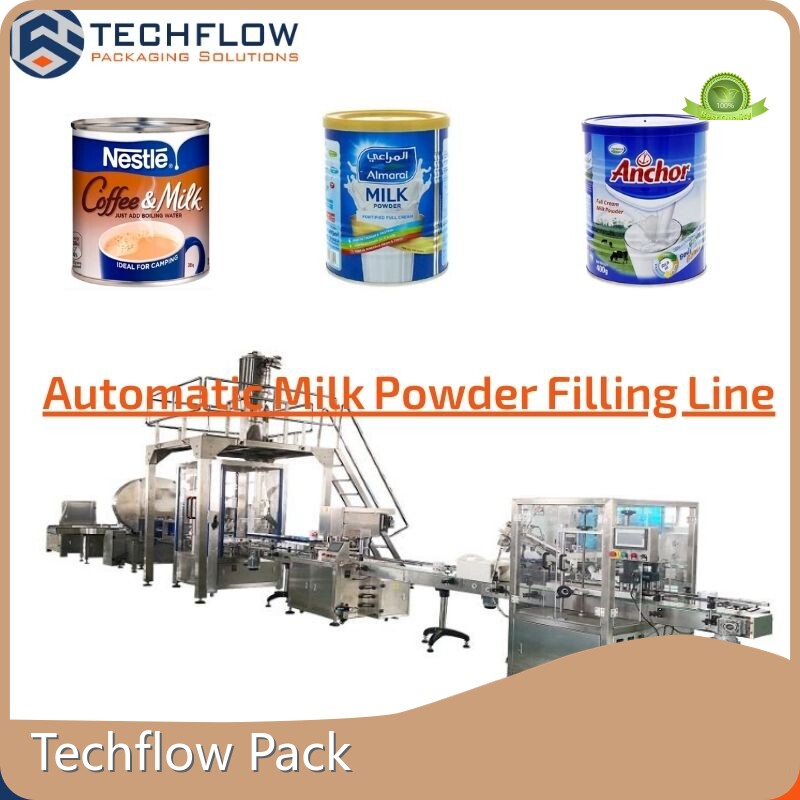

Milk Powder Filling Line

Product Description

Automatic Double Auger Filler Milk Powder Filling Line is the end of powder packing line for Canned products. This milk powder filling line is composed of powdery or fine granular material conveying&handling system, auger fillers, Cans seamer&capper, Metal detector, Data printer etc. The blended milk powder enters the double-head milk powder filling machine through screw conveyor or vacuum conveyor to realize automatic measuring and feeding, and then complete the function of automatic sealing, capping and coding.

Product Specifications

Techflowpack is committed to helping customers deliver and build cost-effective milk powder filling lines

Machine model	TFP-2B3
Metering method	Screw quantitative
Filling range	Max5000ml
Filling accuracy	<0.3%-1%
Packaging Speed	Max50 pcs/min(according to dosing weight and material's flowing ability)
Hopper volume	50L+16L
Power supply	220V/380V, 50-60Hz
Machine weight	3500kg
Air Source	0.5-0.7Mpa
Cans application size	D:50-180; H:50-350mm
Total power of the line	20Kw around
Main frame	S.S304

Product Application

Automatic Double Auger Filler Milk Powder Filling Line is mainly for Coffee powder, milk powder, Protein powder industries end of line packaging.This filling line is designed and constructed by TECHFLOWPACK. Client contacts with one window only from the contract signature, normal production and after service. It's mostly used for milk powder, protein powder canning(bottling) production.

PRODUCT STRENGTH

Products Advantages

Techflowpack's milk powder filling lines are known for their high filling accuracy and wide range of applications. Whether it is whole milk powder, baby milk powder, goat milk powder or camel milk powder, it can realize high precision filling from 200-2000 grams and control the precision within one thousandth.

High Quality

We have a stable Milk powder filling line supply chain with high quality and more than 10 years of cooperation, such as: SIEMENS/SEW/SICK.The main members of the design team all graduated from the domestic first-class university majoring in mechanical automation, and the average experience is more than 10 years

Reasonable Prices

We know the millk powder packaging machine market well, without compromising on after-sales service, we offer reasonable and competitive price quotations, and OEM/ODM and regional agency are also our business scope with more attractive price

Rigorous Quality Control

Whether it is internal processing parts or outsourcing processing parts must be strictly controlled by the quality inspection department, so that the large error is directly scrapped, and the large tolerance is not assembled.

Humanized Design

Our milk powder filling line wiring adopts a quick-plug mechanism for easy on-site installation. The control part is embedded with remote control communication module, which is easy to update or reset the PLC system at a later stage.

WHY CHOOSE US?

Product Characteristics

Normally, our technicians will visit the customer's site to take measurements and give an optimal layout of the production line according to the safety standards of the dairy industry. Techflowpack's milk powder filling line has the following features

The main structure of machine in the line is made of S.S304,English is displayed in touch screen(customized),the machine is designed in term of National "QS" and "GMP" with European designing ideas.

It's available to store 10 kinds of working parameters in the machine for flexible product changeover. For the dusty materials, we can add a vacuum device to keep the workplace clean.

By changing the Screw model to scale different dosing weight. The machine has second weighting and filling after the first filling to make sure high accuracy and packing speed.Automatic and circulative empty cans peeling off. Automatic twice check, circulative reinforce.

1678351521878-radiobuttoncheckedfill0wght400grad0o

Filling system is driven by three sets of servo motor, accurate positioning, high precision and settable rotary speed. Reasonable mechanical structure, easy to change parts and clean up.

Working Flow

Cans unscrambler→Cans sterilization →Powders vacuum feeding→powder horizontal conveying (control the level of powder metering machine)→powder filling →electronic scale→injection Nitrogen unit →Cans seaming&capping →Cans cleaning→code printing

Product Details

GMP standard material

The main frame of all the equipments in this line is food grade stainless steel 304, and the conveying part of the empty tank is equipped with food grade dust cover.

Dual Auger Filler

Adopting main and auxiliary dual-head metering and weighing sensor design to ensure more accurate measurement.

Vacuum Feeder

Vacuum suction and feeding to ensure a clean environment and avoid material waste.

S.S316L as optional

For some special materials or special requirements of customers, the part of the material in direct contact with the material can be optional S.S316L, such as screw selection, silo and so on.

Wholesale Bottling Seasoning Powder Filling Produc

Techflowpack's Dual Auger Milk Powder Filling Line

Configuration list

This Milk powder filling line is based on a regular production schedule and a relatively stable market supply and demand. Under special circumstances, some brands will be replaced with other brands of equivalent quality. The lowest prices in the indicated prices are based on domestic market configurations.

PLC	INOVANCE/SIEMENS
HMI	INOVANCE/SIEMENS
Photo sensor	SICK
Main motor	SEW
Electronic parts	Schneider
Servo motor	INOVANCE/SIEMENS
Pneumatic parts	SMC/AIRTAC
Invetor	Danfoss

Related Cases display

Tell

Company Advantages

· Techflow Pack auger capsule filling machine is designed by professional designers who have researched a lot of design methods.

· Its quality is highly valued in our factory.

· auger capsule filling machine is world-wide renowned for high quality.

Company Features

· Techflow Pack has gained success in the market by manufacturing a remarkable gamut of auger capsule filling machine.

· 上海利湃机械设备有限公司 has professional technical personnel to undertake auger capsule filling machine solutions.

· We are committed to reducing the negative effect of packing waste on the environment by reducing the use of packaging material and increasing the use of recycled material.

Application of the Product

auger capsule filling machine is one of the main products of Techflow Pack. With wide application, our product can be applied to different industries and fields. And it is deeply loved and favored by customers.

With rich manufacturing experience and strong production strength, Techflow Pack is able to provide professional solutions according to customers' actual needs.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
