Product details of the powder packaging machine manufacturer
Product Introduction
Every detail of Techflow Pack powder packaging machine manufacturer is exquisitely crafted to up to the international standards. Being a quality centric firm well-known in the market, the quality of our product is fully guaranteed. As we continue to make product improvement to better satisfy customers, this product will be more welcomed by the market in the future.
Screw metering principle

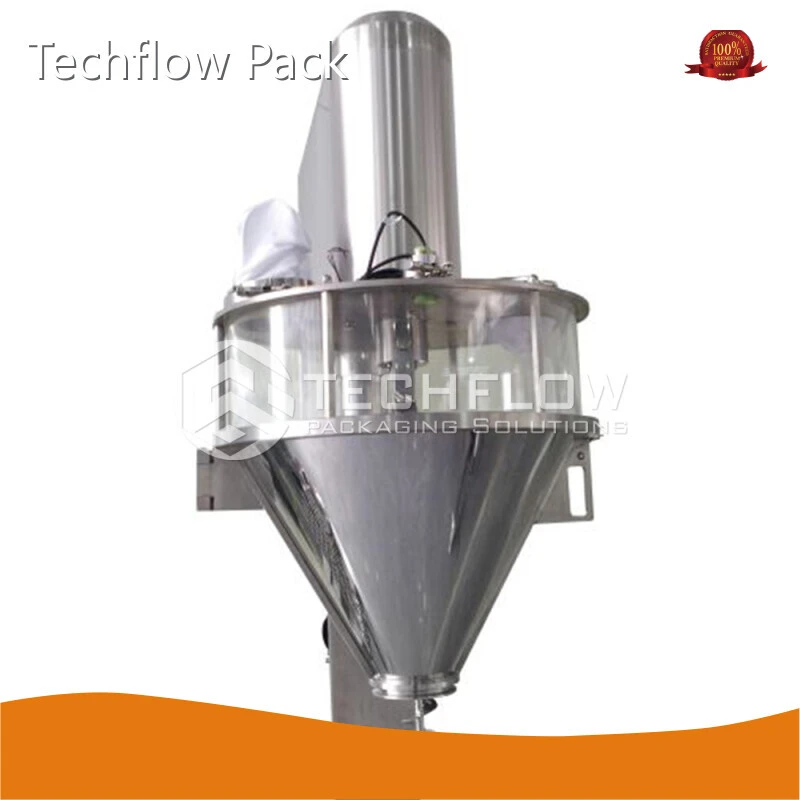

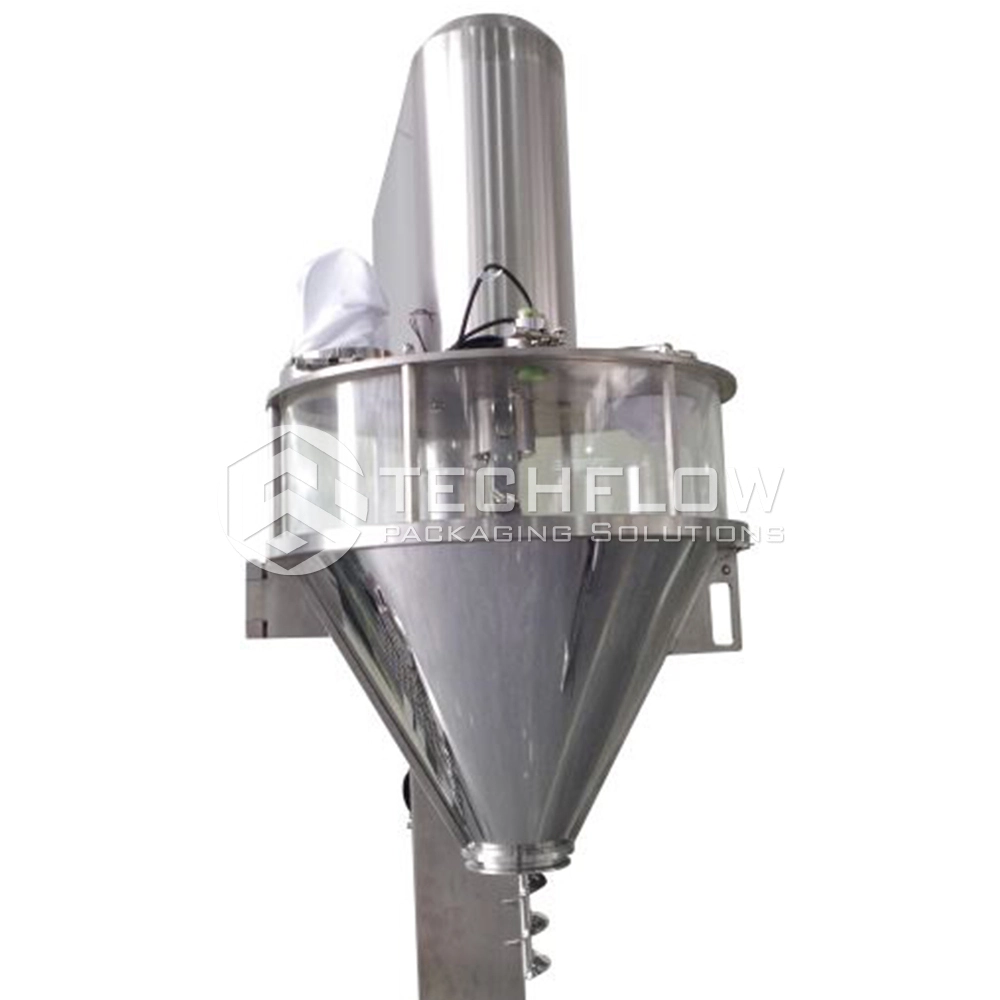

Auger Filler Head is mainly composed of drive motor, hopper, screw, shaft, agitator, screw mounting sleeve, etc. The rotary feeding of the screw is powered by the servo motor, and the control signal of the number of rotation turns of the screw is calculated by the PLC according to the set weight value and material density to obtain the corresponding pulse signal, and then transmitted to the servo motor drive, and then driven by the servo drive according to the input signal of the PLC to rotate the corresponding number of turns, and drive the screw rotation by the synchronous belt to complete each filling feeding process, which can accurately control the number of rotation turns of the screw, thereby improving the accuracy of feeding.
Applications
The auger head is the most common feeding device in the powder metering and powder packaging industry, which can be applied to the quantitative measurement of a variety of powders or fine particles such as flour, coffee powder, milk powder, tapioca flour, seasoning powder, chemical powder and other materials. The head is usually assembled into the FFS pouch packaging machine or Powder Filler for quantitative metering and dispensing of materials.
Technical Features 01
The structure of whole machine is made by stainless steel material except of motor,in particular the application of GMP,food sanitation certification.
Technical Features 02
Servo motor driving screw is characteristics of high-precision orientation,high-speed,stable performance.
Technical Features 03
Weight feedback and proportion track get rid of the shortage of variable packaged weight for various proportion of different material.
Technical Features 04
It can match a variety of packaging equipment, such as vertical machine, horizontal machine, linear filling machine, rotary filling machine, etc
Technical Parameters
Machine Model |
TFP-3AL |
Metering method |
Screw quantitative |
Filling range |
Max500ml |
Filling accuracy |
<0.3%-1% |
Dosing speed |
Max70 pcs/min(according to dosing weight and material's flowing ability) |
Hopper volume |
25L |
Power supply |
380/220V 50-60Hz, 0.8Kw |
Machine weight |
100kg |
Machine size |
1050x800x850mm |
Basic Configuration
No |
Items |
Brand |
1 |
Photo sensor |
SICK |
2 |
Main motor |
GPG |
3 |
Servo motor |
INOVANCE/SIEMENS |
4 |
Main structure |
S.S304 |
Company Feature
• Techflow Pack adheres to the service concept to be customer-oriented. We are widely recognized in the market due to quality products and excellent services.
• Techflow Pack's Auger Filler,Pouch Case Packer,Case Packer/Carton Packaging Machine,Case Erector/Carton Erector,Packing Line feature stable performance, high quality, and easy operation. Besides, they are reasonably-priced and well-designed.
• Techflow Pack was founded in For many years, we have been making progress and advancing with the times. We have constantly learned advanced manufacturing technology at home and abroad and have introduced professional production equipment. This enables us to maintain our leading position in the fierce competition.

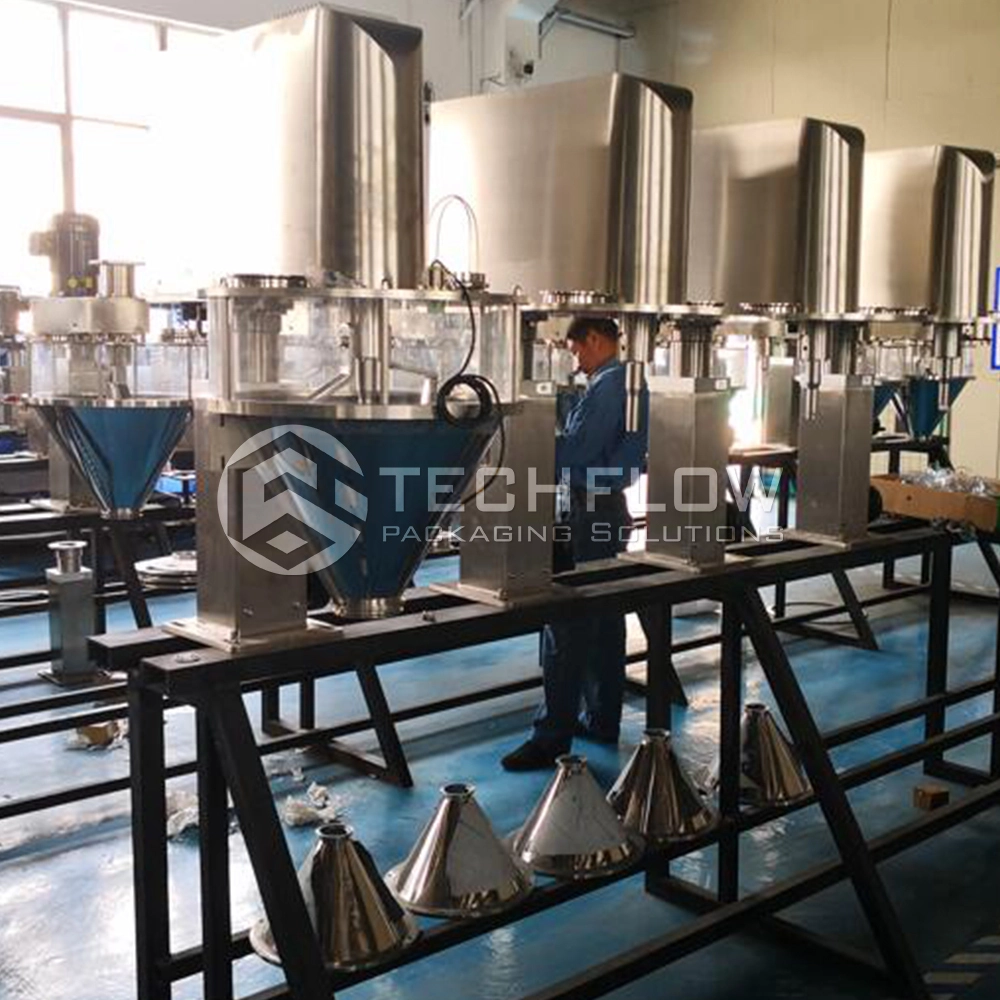

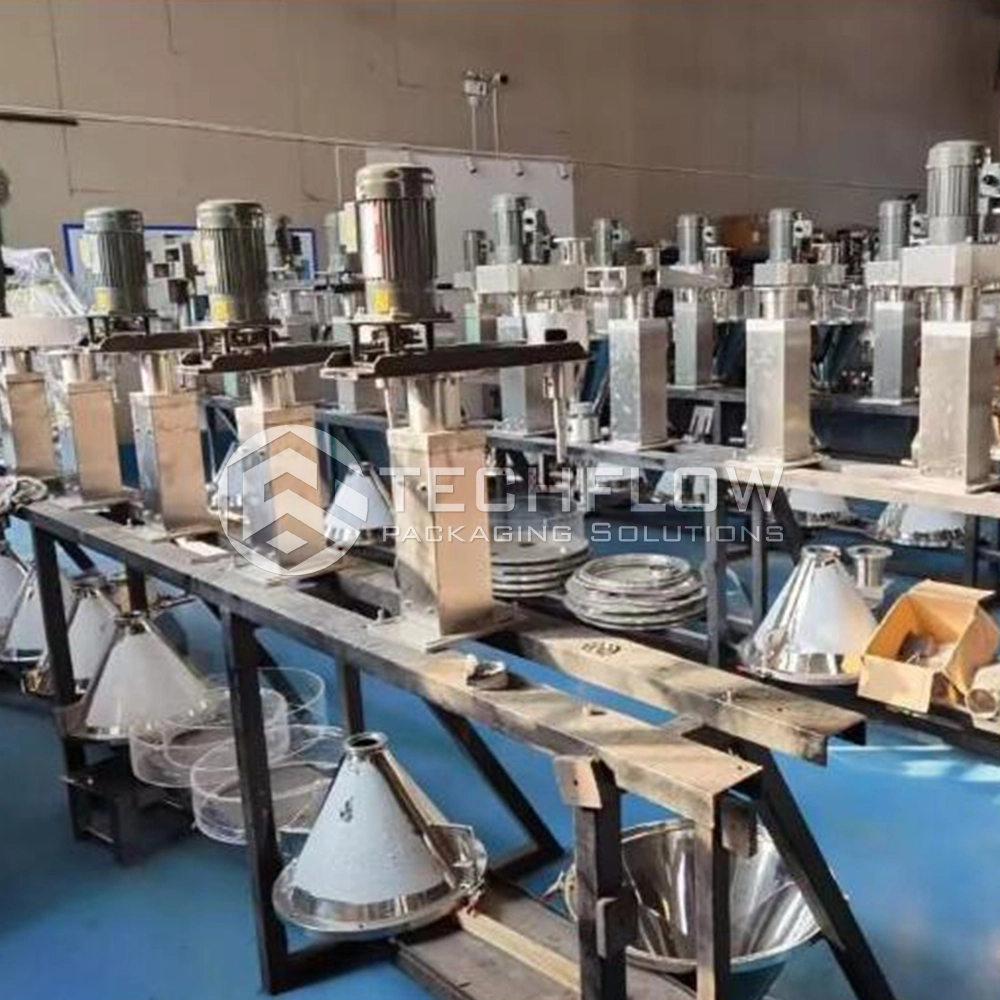

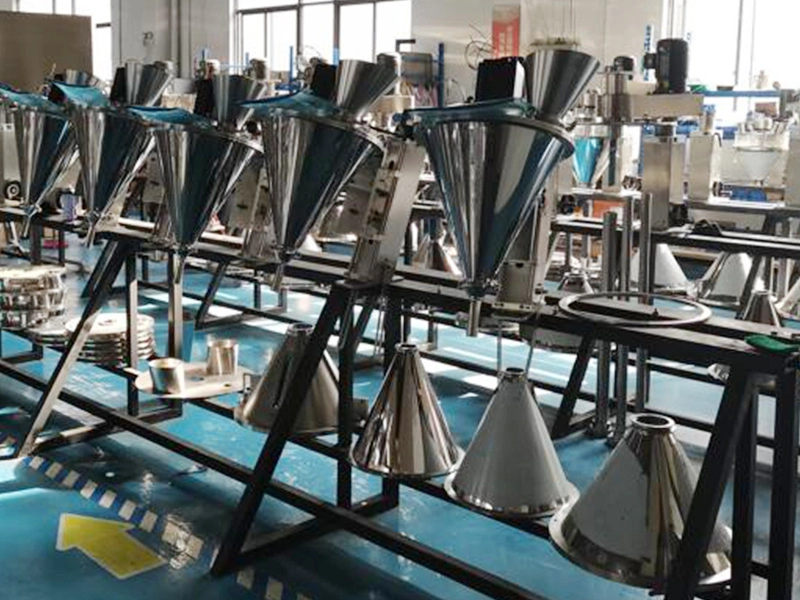

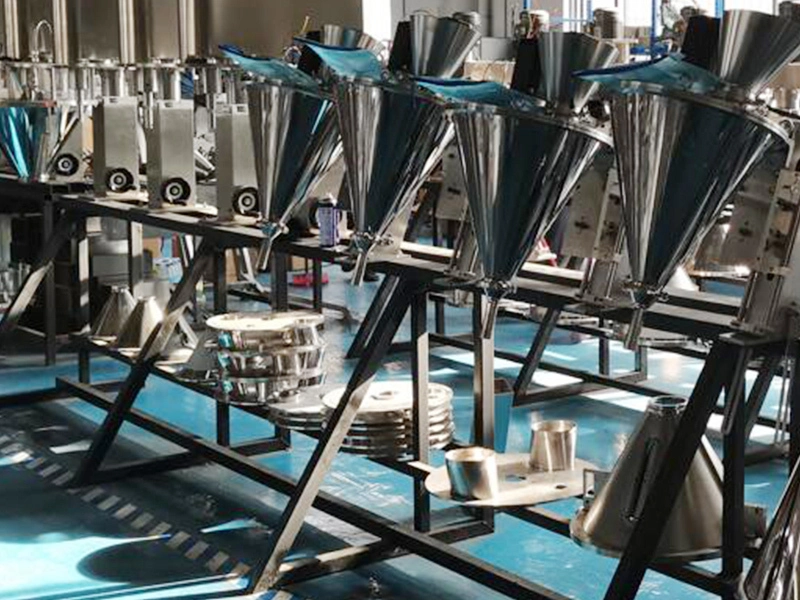

• Techflow Pack has multiple production lines and advanced production equipment. Based on the highly-automated production, we could provide efficient and high-quality custom services.
• Our products gain a large market share in China, and they are also exported to Africa, Southeast Asia and other countries and regions.
Techflow Pack focuses on your needs. We insist on providing all kinds of Auger Filler,Pouch Case Packer,Case Packer/Carton Packaging Machine,Case Erector/Carton Erector,Packing Line of excellent quality and favorable price. Feel free to contact us if in need!
