Product details of the powder packaging machine manufacturer
Product Introduction
Techflow Pack powder packaging machine manufacturer is fabricated using the best grade raw material and sophisticated technology. The professional technical team conducts a comprehensive quality control for this product in the production. Techflow Pack's vision is to become a world-class leading brand and a trusted partner of customers.
Product Description

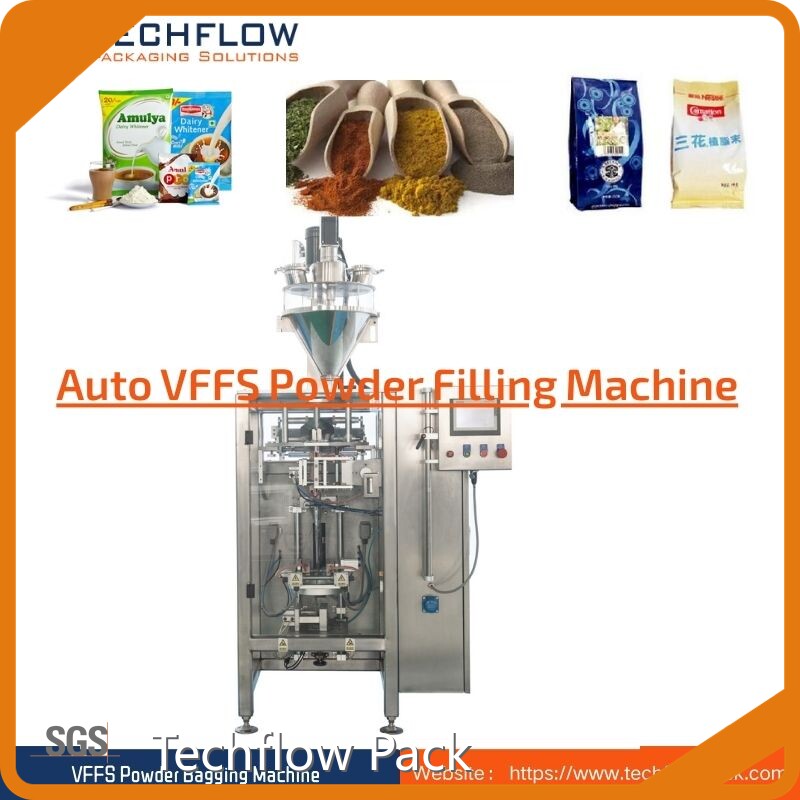

Automatic VFFS Powder Packaging Machine also called VFFS powder filler or VFFS powder packaging machine, is mainly used for powdery or fine granule products auto forming filling sealing by the packaging roll film. The working method is the screw conveyor linked to the VFFS machine to get powdery materials auto infeeding and conveying into Auger Filler's hopper, with screw running to auto dosing the product into pouch for auto forming filling and sealing. According to the pouch or bag's shape, there are some types bag to produce on the VFFS machine such as Pillow bags, Gusset Bags, Standing Box Bags. And the packing speed could be adjustable according to the production capacity from 30-80bags per minute.
Applications
VFFS Powder Packing Machine is the most common dosing equipment in the powder metering and powder packaging industry. It's suitable for filling and dosing a variety of powders or fine particles such as flour, coffee powder, milk powder, tapioca flour, seasoning powder, chemical powder and other materials into pillow bags or gusset bags with auto forming and sealing. It's widely used in food, condiments, seasoning,coffee, beverage, pharmaceutical and other industries
Technical Features 01
Use PLC Servo System and pneumatic control system and super touch screen to compose the drive control center which maximize the whole machine's control precision,reliability and intelligentized level.
Technical Features 02
Equipped with safety protection, comply with firm's safety management requirements.Use intelligent temperature controller to have accurate temperature, which ensures the artistic and neat seal.
Technical Features 03
With error indicating system , which help to handle the trouble immediately.Make pillow bags and hanging bags in terms of customers' different requirements.
Technical Features 04
The unique mechanical structure can adapt to a variety of packaging materials, especially for the single-layer PE film, which can significantly save the cost of consumables.
Technical Parameters
|
Machine Model |
VFFS420 |
|
Metering method |
Screw quantitative |
|
Bag's application size |
(L)80-300mm, (W)80-200mm |
|
Production capacity |
Max 80pcs/min |
|
Filling volume |
100-5000ml(by screw changover) |
|
Gas pressure |
6-8 kg/cm2 0.3m3/min |
|
Power supply |
220/380V 50-60Hz, 3.5Kw |
|
Machine dimension |
1650x1100x1500mm |
|
Machine weight |
350Kg |
Basic Configuration
|
No |
Items |
Brand |
|
1 |
Main motor |
GPG |
|
2 |
Vibrating motor |
CPG |
|
3 |
Material Level sensor |
SICK |
|
4 |
Vibrating inverter |
INOVANCE |
|
5 |
Vacuum pump |
Roots |
Company Advantage
• Techflow Pack's machinery is deeply favored by most customers for the following advantages: reasonable and novel design, compact structure, stable performance, and easy operation and installation.
• Having developed rapidly for years, Techflow Pack is a machinery manufacturer with a relatively large scale and great business capability.
• Techflow Pack puts customers first and make effort to provide quality and thoughtful services based on customer demand.
• Techflow Pack's Auger Filler,Pouch Case Packer,Case Packer/Carton Packaging Machine,Case Erector/Carton Erector,Packing Line are not only sold well in the domestic first- and second-tier cities, but also exported to foreign markets in Southeast Asia, Central Asia, North America, and others.
• Our company has advanced production equipment and technology and we established a sound quality management system. Therefore, we can provide customers with professional custom services.
