Techflow Pack Latest Auger Type Powder Filling Machine

Product details of the auger type powder filling machine

Quick Overview

Compact in structure, stable in performance, reliable in quality, high in cost performance and wide in application, Techflow Pack's mechanical equipment greatly improves production efficiency. Complete models of auger type powder filling machine are available with high quality. The exceptional performance and good durability keep the product ahead of the competition. 上海利湃机械设备有限公司 takes responsibility for its actions and contributes to society.

Product Information

auger type powder filling machine has the following advantages over other products in the same category.

Product Description

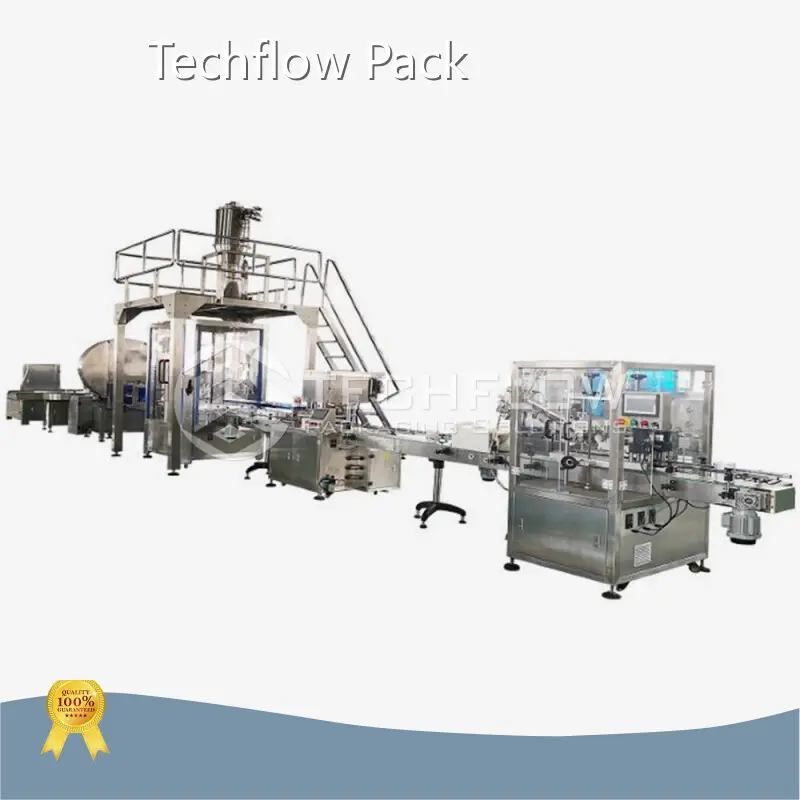

Automatic Double Auger Filler Milk Powder Filling Line is the end of powder packing line for Canned products.

This milk powder filling line is composed of powdery or fine granular material conveying&handling system, auger fillers, Cans seamer&capper, Metal detector, Data printer etc.

Applications

Automatic Double Auger Filler Milk Powder Filling Line is mainly for Coffee powder, milk powder, Protein powder industries end of line packaging.This filling line is designed and constructed by TECHFLOWPACK. Client contacts with one window only from the contract signature, normal production and after service. It's mostly used for milk powder, protein powder canning(bottling) production.

a1 (3)

a2 (3)

a3 (3)

Technical Features 01

The main structure of machine in the line is made of S.S304,English is displayed in touch screen(customized),the machine is designed in term of National "QS" and "GMP" with European designing ideas.

Technical Features 02

It's available to store 10 kinds of working parameters in the machine for flexible product changeover. For the dusty materials, we can add a vacuum device to keep the workplace clean.

Technical Features 03

By changing the Screw model to scale different dosing weight.

The machine has second weighting and filling after the first filling to make sure high accuracy and packing speed.Automatic and circulative empty cans peeling off. Automatic twice check, circulative reinforce.

Technical Features 04

Filling system is driven by three sets of servo motor, accurate positioning, high precision and settable rotary speed. Reasonable mechanical structure, easy to change parts and clean up.

Technical Parameters

Machine Model	TFP-2B3
Metering method	Screw quantitative
Filling range	Max5000ml
Filling accuracy	<0.3%-1%
Packing speed	Max50 pcs/min(according to dosing weight and material's flowing ability)
Hopper volume	50L+16L
Power supply	380/220V 50-60Hz, 3.5Kw
Machine weight	450kg
Air source	0.5-0.7Mpa
Cans applicable size	D:50-180mm; H: 50-350mm
Total power of the whole line	20Kw

Working Flow

Cans unscrambler→Cans sterilization →Powders vacuum feeding→powder horizontal conveying (control the level of powder metering machine)→powder filling →electronic scale→injection Nitrogen unit →Cans seaming&capping →Cans cleaning→code printing
