Techflow Pack Custom Packaging Machinery Manufacturers

Product details of the packaging machinery manufacturers

Product Introduction

Techflow Pack packaging machinery manufacturers provide the perfect blend of style, selection, and affordability. The product meets with the quality standards of many countries and regions. Techflow Pack both provides superior packaging machinery manufacturers and considerate service for customers.

Screw metering principle

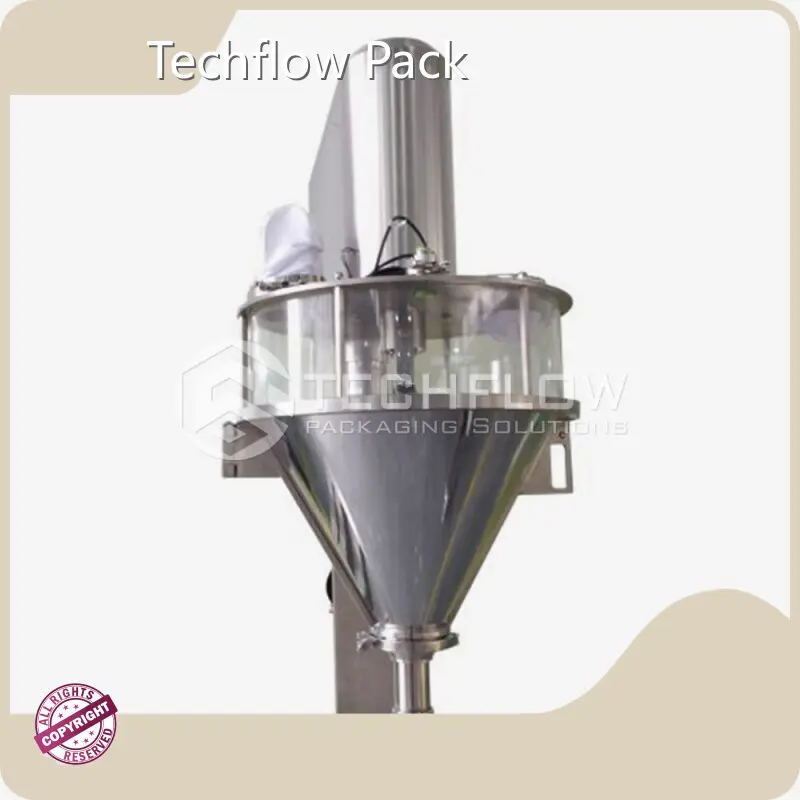

Auger Filler Head is mainly composed of drive motor, hopper, screw, shaft, agitator, screw mounting sleeve, etc. The rotary feeding of the screw is powered by the servo motor, and the control signal of the number of rotation turns of the screw is calculated by the PLC according to the set weight value and material density to obtain the corresponding pulse signal, and then transmitted to the servo motor drive, and then driven by the servo drive according to the input signal of the PLC to rotate the corresponding number of turns, and drive the screw rotation by the synchronous belt to complete each filling feeding process, which can accurately control the number of rotation turns of the screw, thereby improving the accuracy of feeding.

Applications

The auger head is the most common feeding device in the powder metering and powder packaging industry, which can be applied to the quantitative measurement of a variety of powders or fine particles such as flour, coffee powder, milk powder, tapioca flour, seasoning powder, chemical powder and other materials. The head is usually assembled into the FFS pouch packaging machine or Powder Filler for quantitative metering and dispensing of materials.

a1

a3

a2

Technical Features 01

The structure of whole machine is made by stainless steel material except of motor,in particular the application of GMP,food sanitation certification.

Technical Features 02

Servo motor driving screw is characteristics of high-precision orientation,high-speed,stable performance.

Technical Features 03

Weight feedback and proportion track get rid of the shortage of variable packaged weight for various proportion of different material.

Technical Features 04

It can match a variety of packaging equipment, such as vertical machine, horizontal machine, linear filling machine, rotary filling machine, etc

Company Advantage

• Talents guarantee Techflow Pack to develop sustainably. We have a group of professionals with rich industry experience.
• At present, our products have been sold to many foreign countries.
• Established in Techflow Pack has a development history of years. We accumulate rich professional know-how and experience in the machinery production.
• With a scientific management mode and strong production capacity, Techflow Pack adopts standardized and large-scale production. Based on that, we ensure the high quality of products and meet the large-quantity needs of customers, and we could provide custom services for customers.
• Techflow Pack's Auger Filler,Pouch Case Packer,Case Packer/Carton Packaging Machine,Case Erector/Carton Erector,Packing Line have reasonable design and compact structure. They are stable in performance as well as easy in operation and installation.
Thanks for your interest in Techflow Pack's Auger Filler,Pouch Case Packer,Case Packer/Carton Packaging Machine,Case Erector/Carton Erector,Packing Line. If you are interested in our products, please feel free to contact us to place orders. You can enjoy discounts on your first purchase!
