Latest Wrap Around Case Packing
Company Advantages
· Techflow Pack wrap around case packing is manufactured with the support of state-of-the-art technology and skilled team members.
· By using wrap around case packing we produced, some troubles can be avoided.
· wrap around case packing are produced with its best performance.
Product Description

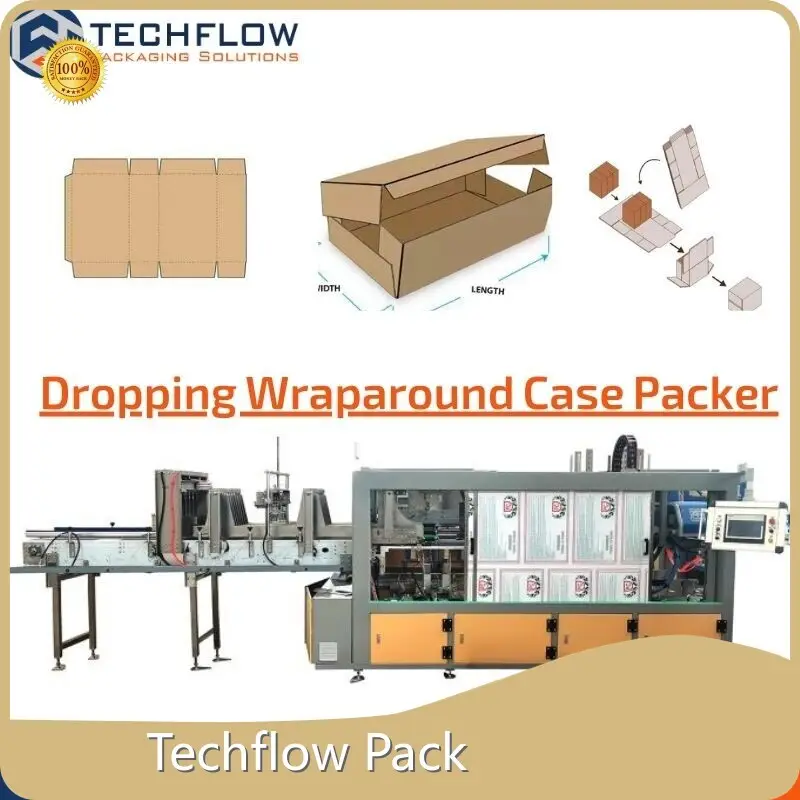

The Automatic Wrap Around Case Packer also called Wrap around Case Packaging Machine, is a compact way for bottles and cans wrap around case packaging. It's mainly used for beverage, canning food Industries. This machine integrates cans auto feeding, wrap around carton blanks auto forming, glue spraying and carton sealing in one then greatly reduce the production cost and workshop floor space. The product enters the machine via the servo divider infeed conveyor as a given group to the case packing unit, where the product is automatically dropping into the positioned wraparound blank then forming gluing.
Applications
Dropping type Wrap Around Case Packer is suitable for various bottles, cans, Jars, small boxes automatic cas packing with hotmelt glue sealing. By replacing the drop mechanism and the out-of-box mechanism, it is possible to run several products of different specifications on the same machine. The machine is widely used in food, beverage, health care products, daily chemical and other industries.
Technical Features 01
Automatic cardboard supplying system that the vacuumed sucking disk will indraft the cardboard into the guide slot, and then the belt will transport the cardboard into the main machine.
Technical Features 02
Adopt PLC to control the complete system of the machine,Man-machine interface screen control.
Technical Features 03
Cans or bottles are divided via the Servo divider then feeding into case packing station on this conveyor.
Technical Features 04
Adopt Nordson glue machine to spray hot melt glue on the folding flaps with a specific temperature,Choose the right spraying method, dot or strip, according to your needs and control the bonding time.Glue spraying is calculated by encoder, ensuring consistent glue spraying length on each carton and permits adjustment and memorizing at any time.
Technical Parameters
|
Machine Model |
TFP-WAP20 |
|
Carton application type |
wrap around carton |
|
Packing format |
2x3;3x4;4x6 |
|
Production capacity |
Max 20cases/min |
|
Gas consumption |
150NL/min |
|
Gas pressure |
0.4-0.7mpa |
|
Power supply |
380V 50-60Hz, 8Kw |
|
Machine dimension |
5200x2200x1600mm |
|
Machine weight |
1800Kg |
Basic Configuration
|
No |
Items |
Brand |
|
1 |
PLC |
SIEMENS |
|
2 |
HMI |
SIEMENS |
|
3 |
Photo sensor |
SICK |
|
4 |
Main Drive |
CPG |
|
5 |
Electronic parts |
Schneider |
|
6 |
Pneumatic parts |
SMC/FESTO |
|
7 |
Servo motor/Servo drive |
INOVANCE |
|
8 |
Hot melt glue applicator |
Nordson |
|
9 |
Main structure |
Carbon steel with painting |
Company Features
· 上海利湃机械设备有限公司 is a leading manufacturer of top-class wrap around case packing.
· Our company maintains a highly experienced and skilled engineering team. They continuously research and develop the latest manufacturing technologies to make the company keep up with market demands. We have developed multi-channel sales modes at home and abroad. In recent years, we slowly expand our export business on the basis of domestic sales, and now we have won the trust of many clients in overseas wrap around case packing markets.
· Leading the wrap around case packing industry has always been one of the aims of 上海利湃机械设备有限公司. Inquire online!
Product Details
Next, the details of wrap around case packing are shown for you.
