Working principle

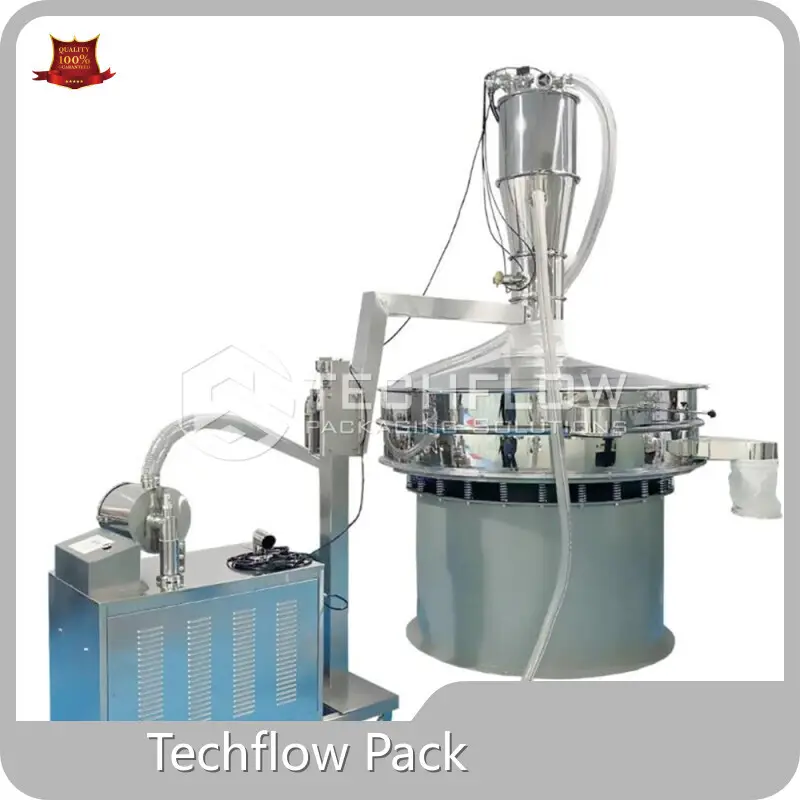

The automatic Vacuum feeder generates vacuum through the electric or pneumatic vacuum generating device, so that the pressure difference is formed externally, forming a vacuum air flow, sucking the material into the automatic feeder, the filtration system separates the material and the air, when the material fills the entire feeder, the feeder automatically stops feeding, opens the unloading valve, starts unloading, the vibration device starts to work, and assists the unloading. At the same time, the unique blowback system designed by Techflowpack will start to automatically clean the filter element, and play the role of auxiliary unloading to improve the service life of the filter element.Vacuum conveying is pipeline closed transportation, this conveying method can eliminate dust environmental pollution, improve the working environment, and reduce the pollution of the environment and personnel to materials, improve cleanliness.

Applications

Vacuum feeder, also known as vacuum conveyor, is a dust-free closed pipeline conveying equipment that transports granules and powdery materials with the help of vacuum suction, using the air pressure difference between vacuum and environmental space to form gas flow in the pipeline and drive the movement of powdery materials, thereby completing the transportation of powder.China has introduced advanced foreign vacuum technology, constantly improved, and is now widely used in chemical, pharmaceutical, food, metallurgy, building materials, agricultural and sideline industries and other light and heavy industries.

21 (27)

22 (26)

23 (23)

Technical Features 01

Automatic control: Realize automatic control, equipment action is controlled by PLC microcomputer program, graphical operation interface, simple and fast.

Technical Features 02

Convenient and fast: small land occupation, light weight, simple and convenient installation;Quick installation structure: low noise, dust-free operation, fast and convenient cleaning and material change.

Technical Features 03

Stable operation: no need to warm up, standby, low maintenance cost;Safety explosion-proof: only use air as power, no need for electric energy and other energy, no heat generation in equipment operation, safety explosion-proof and many other advantages.

Technical Features 04

Conveying characteristics: air is used as the conveying medium, and the material will not appear delamination during the conveying process;Closed conveying: the conveyed materials do not leak, so that the materials are not polluted, protect the cleanliness of the working environment, and protect the stability of the product quality.

Technical Parameters

Model	TFP-VF180	TFP-VF320	TFP-VF430	TFP-VF560
Feeding capacity	0.1-0.5Ton/hour	0.5-1.2Ton/hour	1.3-3.5Ton/hour	2.5-6Ton/hour
Vacuum hopper volume	7L	35L	56L	96L
Inside Pipe diameter	180mm	320mm	430mm	560mm
Feeding Diameter	38mm	38/51mm	51/100mm	51/100mm
Feeding Height	Max2 meter	Max3meter	Max3.5meter	Max5meter
Power Supply	380/220 50HZ	380/220 50HZ	380/220 50HZ	380/220 50HZ
Total Power	1.5Kw	2.2Kw	2.2Kw	3Kw
Machine Weight	75kg	130kg	180Kg	220Kg
Material	S.S304 or customized	S.S304 or customized	S.S304 or customized	S.S304 or customized

Basic Configuration

No	Items	Brand
1	Main motor	GPG
2	Vibrating motor	CPG
3	Material Level sensor	SICK
4	Vibrating inverter	INOVANCE
5	Vacuum pump	Roots

Company Advantages

· Techflow Pack powder packaging machine is manufactured as per the international quality norms and well-defined industry parameters.

· The product has been tested for a long time and thus has a stable performance.

· 上海利湃机械设备有限公司 pays attention to the quality of talents and intensive development of powder packaging machine.

Company Features

· Techflow Pack is skilled at producing powder packaging machine.

· The factory is equipped with a full set of modern advanced manufacturing facilities. These facilities have given great support for production, no matter in the aspects of guaranteeing product quality or the overall production efficiency.

· We not only comply with environmental legislation in daily production facilities but also encourage other businesses to do so. Besides, we also encourage our business partners to adopt green practices to further effectiveness.

Application of the Product

The powder packaging machine developed and produced by our company is widely applied to many industries and fields, and it can fully meet the diversified needs of customers.

According to different needs of customers, Techflow Pack is capable of providing reasonable, comprehensive and optimal solutions for customers.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
