Product details of the powder packaging machine manufacturer
Product Information
Techflow Pack powder packaging machine manufacturer adopts the simplified production method. It has gone through stringent test based on certain quality parameters. The obvious economic benefits of the product are well-received by customers.
Working principle

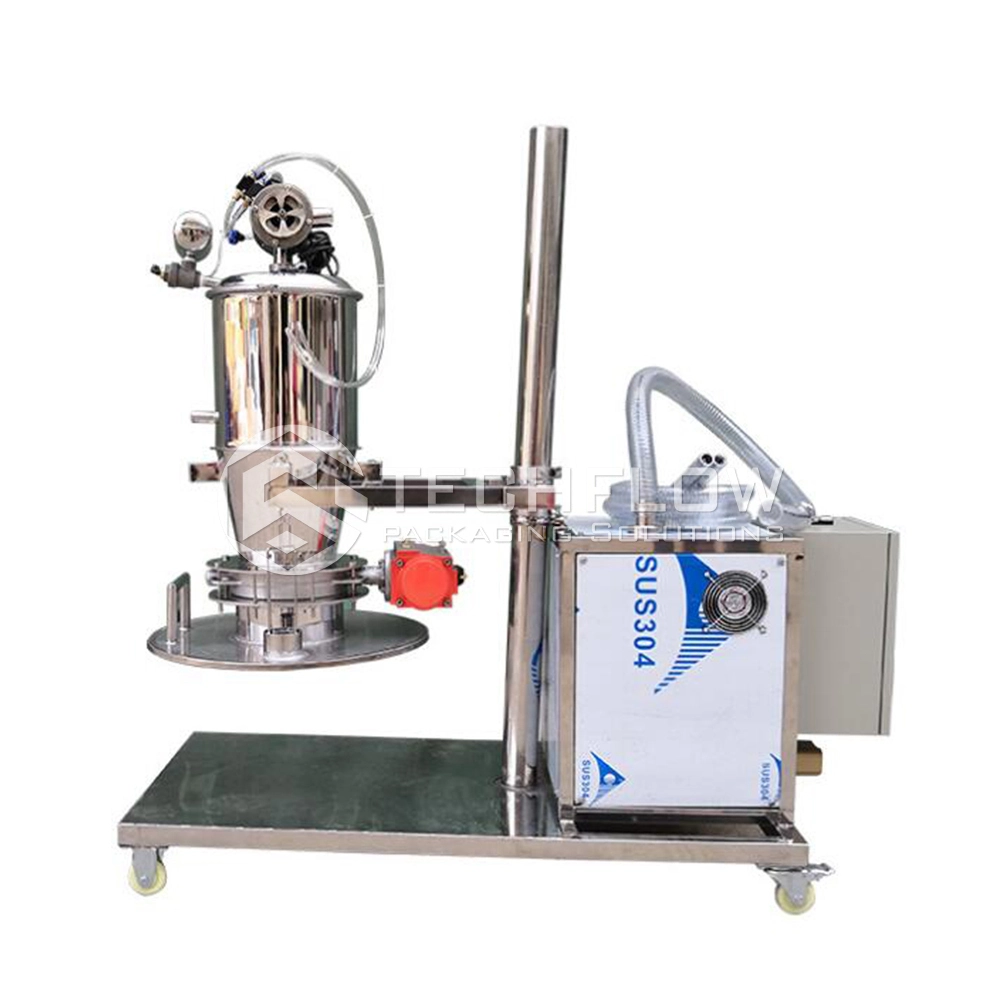

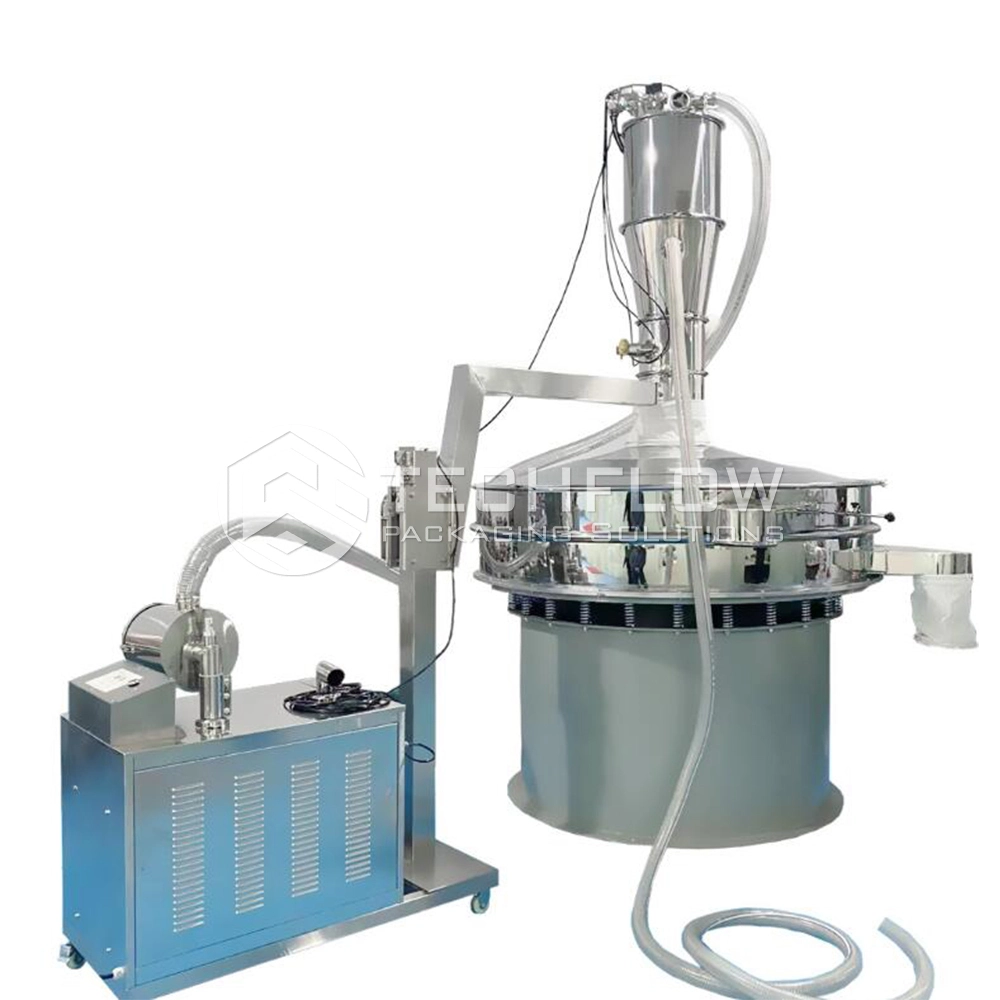

The automatic Vacuum feeder generates vacuum through the electric or pneumatic vacuum generating device, so that the pressure difference is formed externally, forming a vacuum air flow, sucking the material into the automatic feeder, the filtration system separates the material and the air, when the material fills the entire feeder, the feeder automatically stops feeding, opens the unloading valve, starts unloading, the vibration device starts to work, and assists the unloading. At the same time, the unique blowback system designed by Techflowpack will start to automatically clean the filter element, and play the role of auxiliary unloading to improve the service life of the filter element.Vacuum conveying is pipeline closed transportation, this conveying method can eliminate dust environmental pollution, improve the working environment, and reduce the pollution of the environment and personnel to materials, improve cleanliness.
Applications
Vacuum feeder, also known as vacuum conveyor, is a dust-free closed pipeline conveying equipment that transports granules and powdery materials with the help of vacuum suction, using the air pressure difference between vacuum and environmental space to form gas flow in the pipeline and drive the movement of powdery materials, thereby completing the transportation of powder.China has introduced advanced foreign vacuum technology, constantly improved, and is now widely used in chemical, pharmaceutical, food, metallurgy, building materials, agricultural and sideline industries and other light and heavy industries.
Technical Features 01
Automatic control: Realize automatic control, equipment action is controlled by PLC microcomputer program, graphical operation interface, simple and fast.
Technical Features 02
Convenient and fast: small land occupation, light weight, simple and convenient installation;Quick installation structure: low noise, dust-free operation, fast and convenient cleaning and material change.
Technical Features 03
Stable operation: no need to warm up, standby, low maintenance cost;Safety explosion-proof: only use air as power, no need for electric energy and other energy, no heat generation in equipment operation, safety explosion-proof and many other advantages.
Technical Features 04
Conveying characteristics: air is used as the conveying medium, and the material will not appear delamination during the conveying process;Closed conveying: the conveyed materials do not leak, so that the materials are not polluted, protect the cleanliness of the working environment, and protect the stability of the product quality.
Technical Parameters
|
Model |
TFP-VF180 |
TFP-VF320 |
TFP-VF430 |
TFP-VF560 |
|
Feeding capacity |
0.1-0.5Ton/hour |
0.5-1.2Ton/hour |
1.3-3.5Ton/hour |
2.5-6Ton/hour |
|
Vacuum hopper volume |
7L |
35L |
56L |
96L |
|
Inside Pipe diameter |
180mm |
320mm |
430mm |
560mm |
|
Feeding Diameter |
38mm |
38/51mm |
51/100mm |
51/100mm |
|
Feeding Height |
Max2 meter |
Max3meter |
Max3.5meter |
Max5meter |
|
Power Supply |
380/220 50HZ |
380/220 50HZ |
380/220 50HZ |
380/220 50HZ |
|
Total Power |
1.5Kw |
2.2Kw |
2.2Kw |
3Kw |
|
Machine Weight |
75kg |
130kg |
180Kg |
220Kg |
|
Material |
S.S304 or customized |
S.S304 or customized |
S.S304 or customized |
S.S304 or customized |
Basic Configuration
|
No |
Items |
Brand |
|
1 |
Main motor |
GPG |
|
2 |
Vibrating motor |
CPG |
|
3 |
Material Level sensor |
SICK |
|
4 |
Vibrating inverter |
INOVANCE |
|
5 |
Vacuum pump |
Roots |
