Automatic Powder Packing Machine Techflow Packfactory Price
Product Description

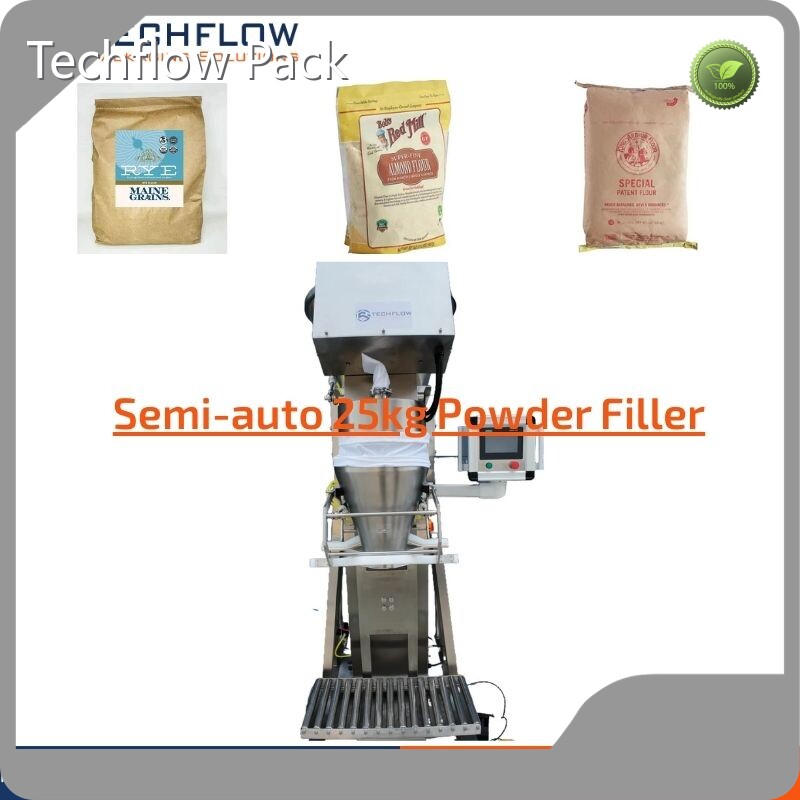

The Semi-automatic Open-mouth Bag Filling Machine also called semi-auto Auger Filler is OEM designed for Europe Agent. It can be applied to the quantitative measurement of a variety of powders or fine particles with big dosing 10-50kg such as flour, coffee powder, milk powder, tapioca flour, seasoning powder, chemical powder and other materials.
Applications
Semi-Automatic Open-Mouth Bag Powder Filling Machine is mainly used for powdery or fine granular product’s 25-50kg quantitative open-mouth bag filling and dosing such Kraft paper bag, pre-formed plastic bag, woven bag.
Technical Features 01
Adopt a new type of international popular production control system: high-precision and high-speed special metering control instrument, with strong functions, high reliability, greater flexibility and scalability characteristics, fully adapted to the production process repeated and highly continuous production.
Technical Features 02
The machine is a new type of mechatronics equipment, using computer control technology, imported high-precision load cells, and the material contact place is uniform for 304 manufacturing.It has the functions of overshoot suppression, automatic correction of drop, automatic alarm of out-of-tolerance, etc.
Technical Features 03
It adopts large and small double screw feeders and is equipped with turbo geared motors. The double spiral pipe diameter is different, and the large feeding spiral pipe diameter is 159 speed ratio 1/7.5, and the material is quickly filled. The diameter of the small feeding screw pipe is 89 speed ratio of 1/10, and the slow feeding speed is used to ensure accuracy.
Technical Features 04
Configure the top negative pressure discharge port, which is closed with a filter bag during installation to effectively reduce the air content in the packaging bag.
Technical Parameters
|
Model |
TFP-1C1 |
|
Metering Mode |
Gross weight with double screw feeding |
|
Weight Range |
15-50kg |
|
Packing Accuracy |
≤0.3% |
|
Packing Speed |
1-3bags/min |
|
Power Supply |
380/220 50HZ |
|
Total Power |
3.9KW |
|
Machine Weight |
280kg |
|
Air source |
6-8 kg/cm²; 0.2 m³/min |
Basic Configuration
|
No |
Items |
Brand |
|
1 |
PLC |
SIEMENS |
|
2 |
HMI |
SIEMENS |
|
3 |
Photoelectric |
Autonics/SICK |
|
4 |
Electronic parts |
Schneider |
|
5 |
Invertor |
DELTA |
|
6 |
Motor |
SEG |
|
7 |
Scale Sensor |
Zemic |
Company Advantages
· Using the state-of-the-art production equipment, Techflow Pack automatic powder packing machine is produced with flawless surface finishes.
· Its quality is qualified to meet the requirements of certifications.
· Techflow Pack's great advantages are created with good raw materials from abroad and international advanced equipment.
Company Features
· With a heritage of excellence for years, 上海利湃机械设备有限公司 has a sound reputation for designing and manufacturing high-quality automatic powder packing machine.
· 上海利湃机械设备有限公司 has an internationally advanced production equipment series.
· 上海利湃机械设备有限公司 constantly walks on the path to excellence in automatic powder packing machine. Get an offer!
Application of the Product
The automatic powder packing machine produced by our company can be used in many fields.
With professional service spirit, Techflow Pack always provides customers with reasonable and efficient one-stop solutions.
