Auger Filler Cost
Screw metering principle
Auger Filler Head is mainly composed of drive motor, hopper, screw, shaft, agitator, screw mounting sleeve, etc. The rotary feeding of the screw is powered by the servo motor, and the control signal of the number of rotation turns of the screw is calculated by the PLC.
According to the set weight value and material density to obtain the corresponding pulse signal, and then transmitted to the servo motor drive, and then driven by the servo drive according to the input signal of the PLC to rotate the corresponding number of turns, and drive the screw rotation by the synchronous belt to complete each filling feeding process, which can accurately control the number of rotation turns of the screw, thereby improving the accuracy of feeding.
Applications

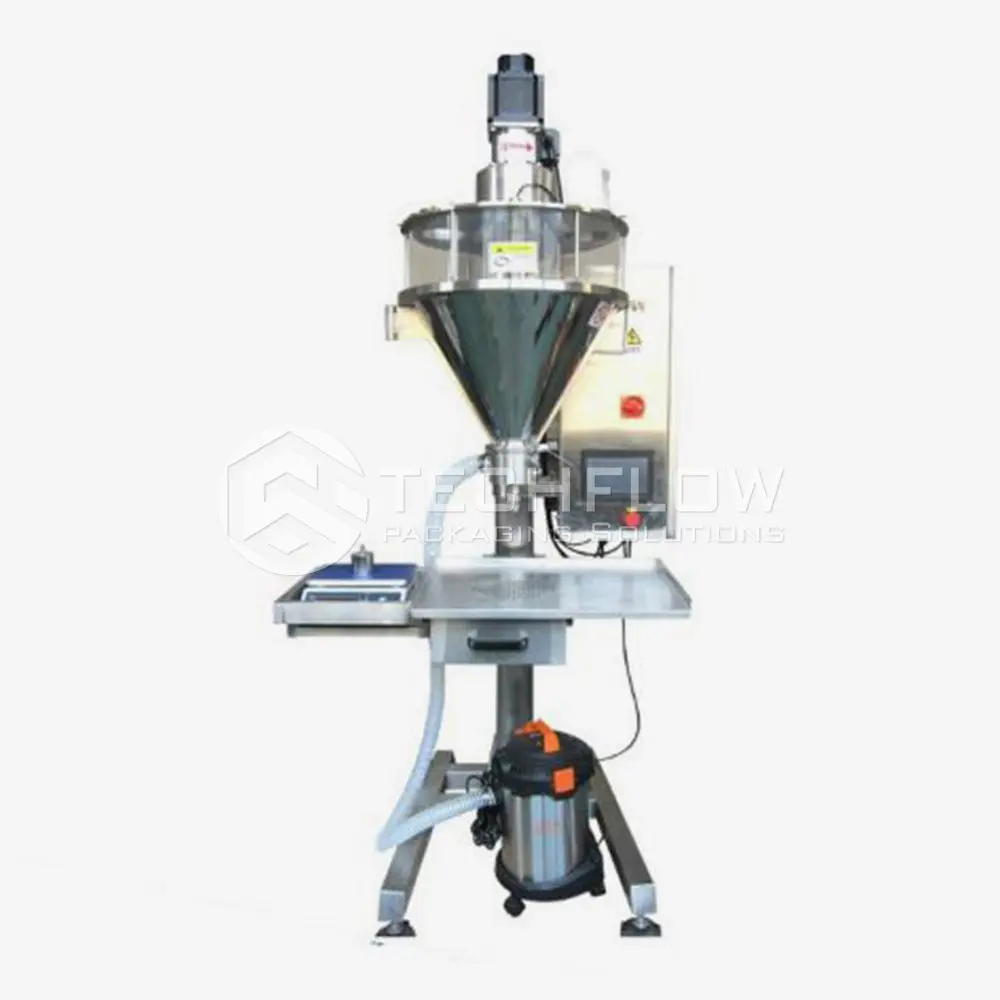

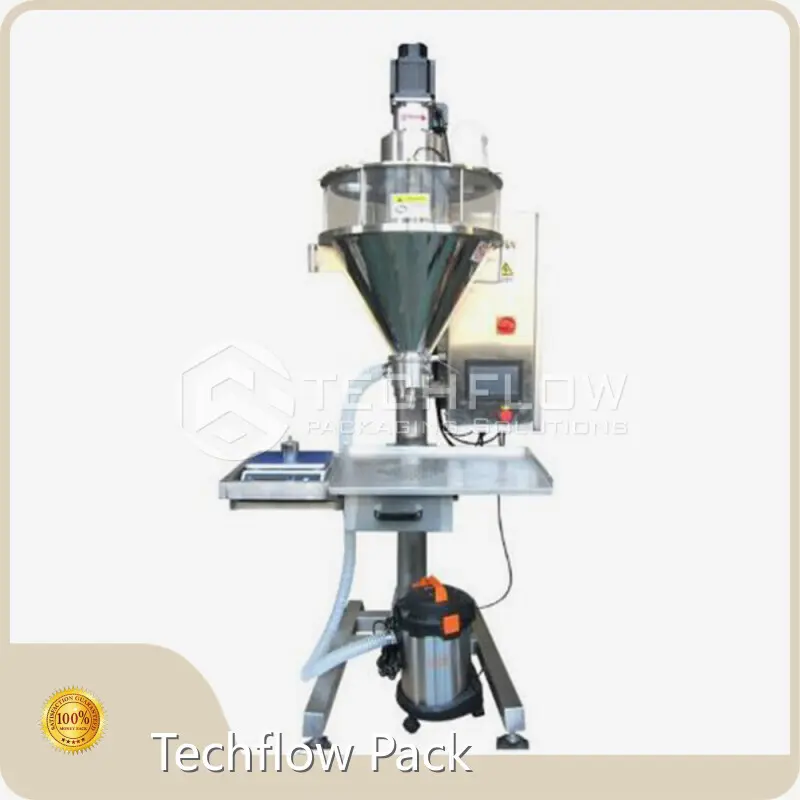

This semi-auto auger filling machine is OEM designed for our Europe Agent. It can be applied to the quantitative measurement of a variety of powders or fine particles such as flour, coffee powder, milk powder, tapioca flour, seasoning powder, chemical powder and other materials. It is suitable for bags, cans,bottles semi-auto filling.
Technical Features 01
This Free Standing Auger filler combined the European Standard with China manufacturing advantage;The whole machine is made of stainless steel 304.
Technical Features 02
English is displayed in touch screen or put customized programming in the touch screen;The machine is designed in term of National "QS" and "GMP"; Could store 10 kinds of working parameters in the machine.
Technical Features 03
Weight feedback and proportion track get rid of the shortage of variable packaged weight for various proportion of different material.
Technical Features 04
For the dusty material , we can add a vacuum device and Ball-Valve Cut-off to keep the workplace clean; The machine suitable for lot kinds of package size and powdery material through changing the screw.
Technical Parameters
|
Model |
TFP-A3 |
TFP-B3 |
|
Metering Mode |
Screw quantitative |
Screw quantitative |
|
Weight Range |
1-500ml |
10-5000ml |
|
Packing Accuracy |
≤0.3-1% |
≤0.3-1% |
|
Packing Speed |
15-60times/min |
10-45times/min |
|
Power Supply |
380/220 50HZ |
380/220 50HZ |
|
Total Power |
1KW |
1.5KW |
|
Machine Weight |
150kg |
260kg |
|
Hopper capacity |
25L |
50L |
Basic Configuration
|
No |
Items |
Brand |
|
1 |
PLC |
SIEMENS |
|
2 |
HMI |
SIEMENS |
|
3 |
Level Optonics |
SICK |
|
4 |
Electronic parts |
Schneider |
|
5 |
Servo motor |
INOVANCE |
|
6 |
Stirring motor |
GPG |
|
7 |
Main structure |
S.S304 |
Company Advantages
· All of our Techflow Pack auger filler comply with the latest industry standards.
· The product has long-lasting performance and strong usability.
· 上海利湃机械设备有限公司 has the right customer service skills.
Company Features
· 上海利湃机械设备有限公司 is the professional supplier of the international high-quality auger filler provider.
· We have a team specializing in product development. Their expertise enhances the planning of product optimization and process design. They effectively coordinate and implement our production.
· We stick to business ethics and integrity. Everything we do will be based on the highest standards of ethics and integrity.
Application of the Product
The auger filler developed and produced by our company can be widely used in various industries and professional fields.
We understand the actual situation of the market, and then combine the needs of customers. In this way, we develop the most suitable solutions for customers and effectively meet their needs.
