Product details of the wrap around cartoning machine
Product Information
Eco-friendly materials are used in the producing of Techflow Pack wrap around cartoning machine. It is in high accordance with the quality inspection standards. The product has earned good reputation and trust from clients at home and abroad.
Product Description

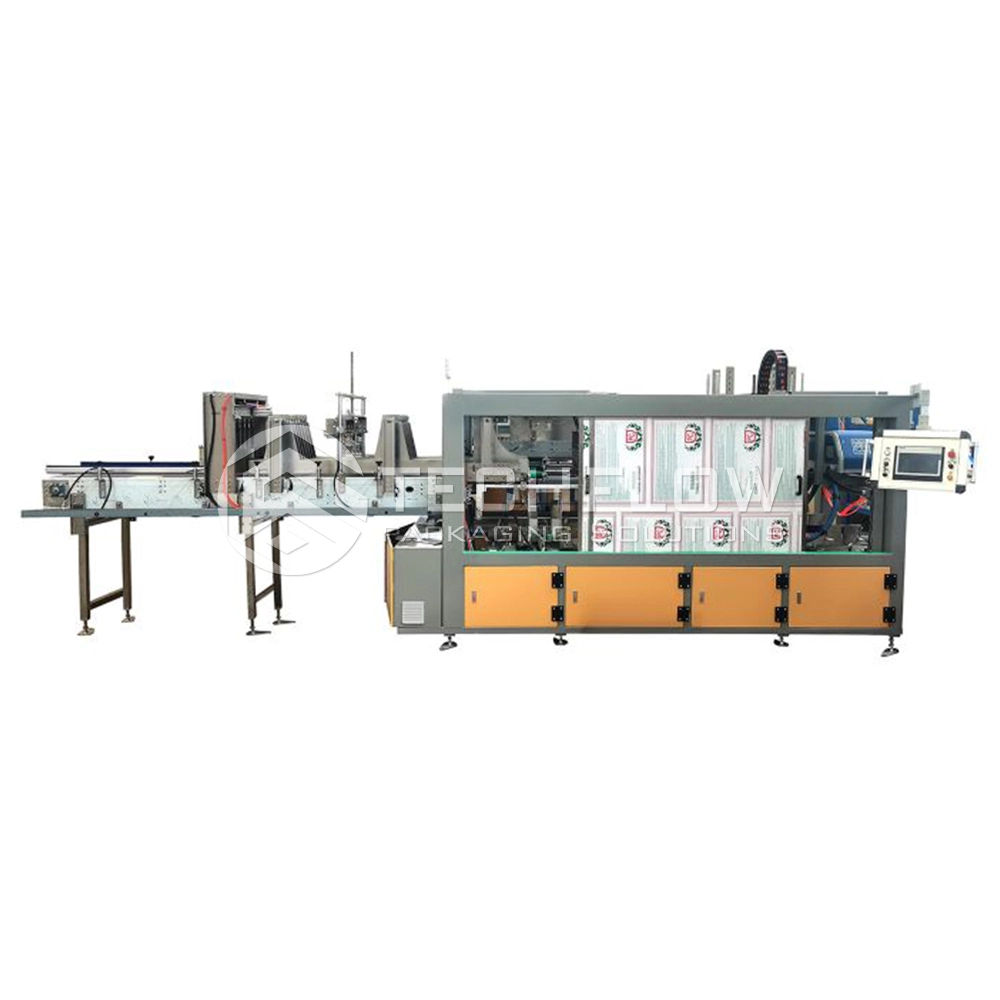

The Automatic Wrap Around Case Packer also called Wrap around Case Packaging Machine, is a compact way for bottles and cans wrap around case packaging. It's mainly used for beverage, canning food Industries. This machine integrates cans auto feeding, wrap around carton blanks auto forming, glue spraying and carton sealing in one then greatly reduce the production cost and workshop floor space. The product enters the machine via the servo divider infeed conveyor as a given group to the case packing unit, where the product is automatically dropping into the positioned wraparound blank then forming gluing.
Applications
Dropping type Wrap Around Case Packer is suitable for various bottles, cans, Jars, small boxes automatic cas packing with hotmelt glue sealing. By replacing the drop mechanism and the out-of-box mechanism, it is possible to run several products of different specifications on the same machine. The machine is widely used in food, beverage, health care products, daily chemical and other industries.
Technical Features 01
Automatic cardboard supplying system that the vacuumed sucking disk will indraft the cardboard into the guide slot, and then the belt will transport the cardboard into the main machine.
Technical Features 02
Adopt PLC to control the complete system of the machine,Man-machine interface screen control.
Technical Features 03
Cans or bottles are divided via the Servo divider then feeding into case packing station on this conveyor.
Technical Features 04

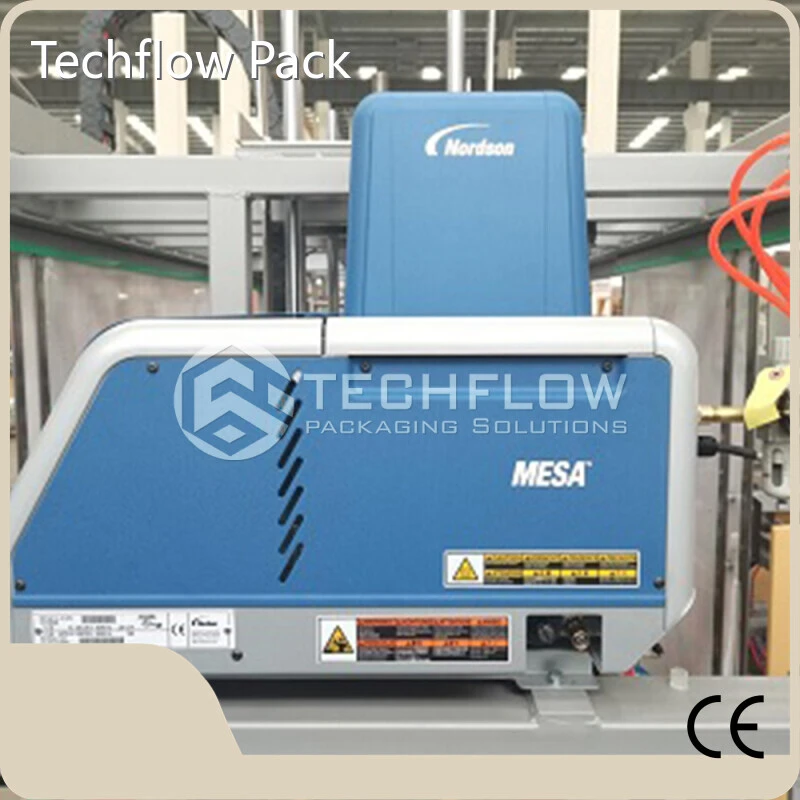

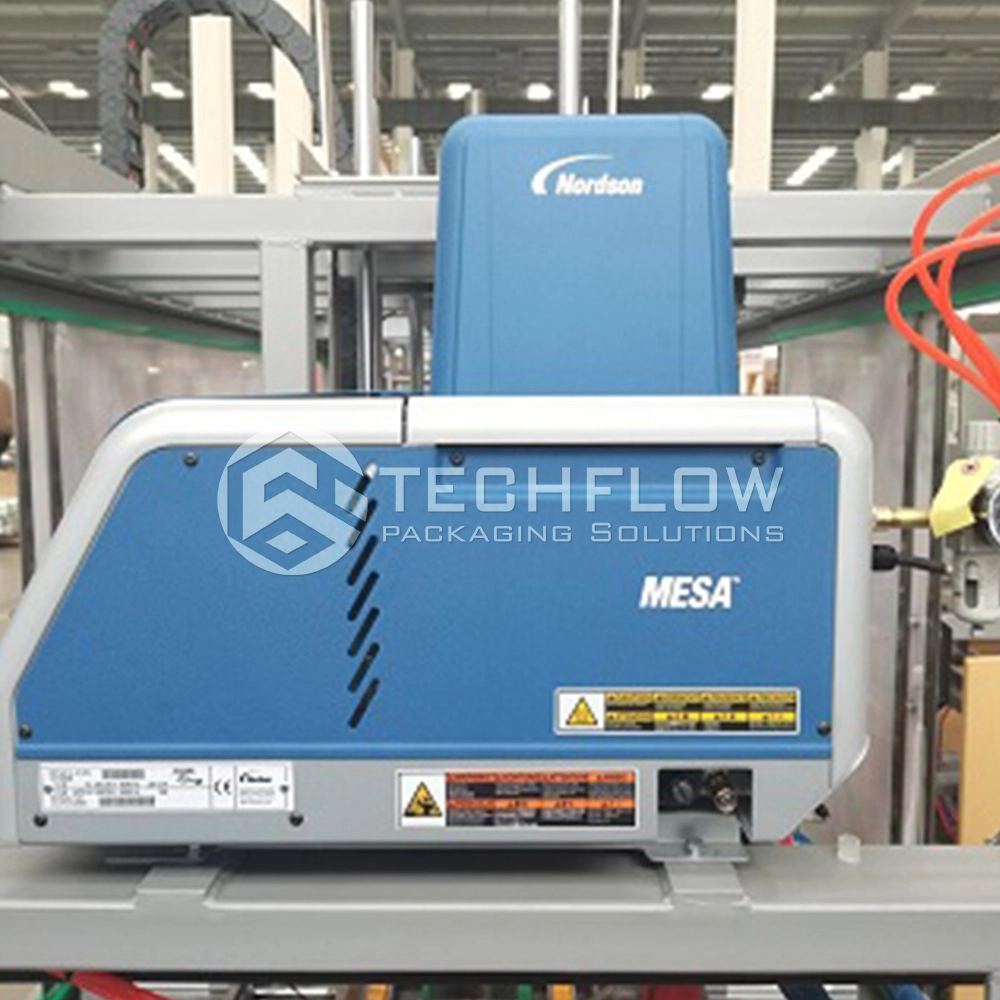

Adopt Nordson glue machine to spray hot melt glue on the folding flaps with a specific temperature,Choose the right spraying method, dot or strip, according to your needs and control the bonding time.Glue spraying is calculated by encoder, ensuring consistent glue spraying length on each carton and permits adjustment and memorizing at any time.
Technical Parameters
|
Machine Model |
TFP-WAP20 |
|
Carton application type |
wrap around carton |
|
Packing format |
2x3;3x4;4x6 |
|
Production capacity |
Max 20cases/min |
|
Gas consumption |
150NL/min |
|
Gas pressure |
0.4-0.7mpa |
|
Power supply |
380V 50-60Hz, 8Kw |
|
Machine dimension |
5200x2200x1600mm |
|
Machine weight |
1800Kg |
Basic Configuration
|
No |
Items |
Brand |
|
1 |
PLC |
SIEMENS |
|
2 |
HMI |
SIEMENS |
|
3 |
Photo sensor |
SICK |
|
4 |
Main Drive |
CPG |
|
5 |
Electronic parts |
Schneider |
|
6 |
Pneumatic parts |
SMC/FESTO |
|
7 |
Servo motor/Servo drive |
INOVANCE |
|
8 |
Hot melt glue applicator |
Nordson |
|
9 |
Main structure |
Carbon steel with painting |
Company Advantage
• Our company provides comprehensive and high-level professional services such as design solutions and technical consultations based on the actual needs of users.
• Techflow Pack's Auger Filler,Pouch Case Packer,Case Packer/Carton Packaging Machine,Case Erector/Carton Erector,Packing Line are reasonably designed. They are stable in performance and easy in operation. They are quality-reliable and use-durable.
• Techflow Pack is located in the area with traffic convenience, which is good for timely delivery of the products.
• Techflow Pack has a large number of professional talents devoted to promoting corporate development.
• Through continuous development and improvement, our own unique brand has been created with a wide range of products. Moreover, a sales network spreading to the whole country has been established. Our products are exported to North America, Eastern Europe and Southeast Asia.
If you have any questions about the products or services displayed on the website, please feel free to consult Techflow Pack.
