Product Description

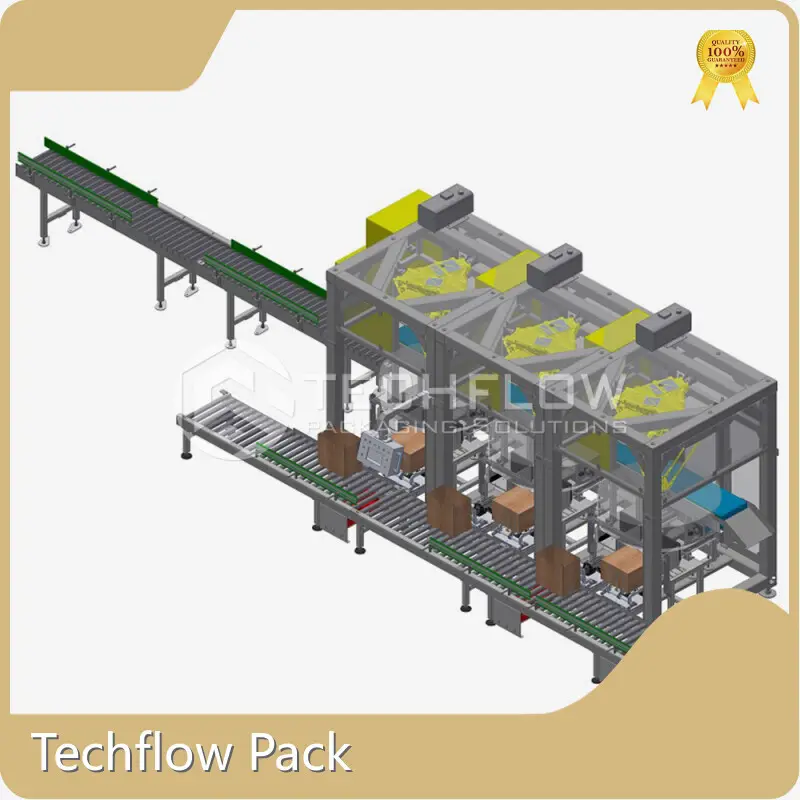

Automatic Robotic Pouch Case Packer also called Delta Robot Case Packer, as a flexible Robotic case packing solution for bagged products such as pillow bagged wheat flour, standing bagged snack food, Doypack bagged Sugar powder, is a complementary machine to the traditional mechanical case packer, which picks up the bagged product and places it in the carton by means of a Delta Robot Arm movement.

Technical Features 01

Modular designing with small footprint, it can be seamlessly connected to the bagging production line or canning production line to achieve the high efficient automatic case packing level.

Technical Features 02

The highly responsive servo drive system and highly optimised drive structure of the parallel robots, together with ourself-developed robot-specific control system, greatly increase the speed and acceleration of the movement. The robot can be operated at speeds of up to 0.3s in a standard configuration, which fully meets the requirements of high-speed production.

Technical Features 03

The rigorous design of the robot body mounting structure reduces the size of the frame considerably and avoids interference between axes and between axes and the frame during movement.

Technical Features 04

The machine controller is not only a motion controller, but also a machine control system that integrates motion control, vision processing and dynamic tracking; the motion control module is responsible for the processing of machine kinematics, path planning and other algorithms and motion control; the vision processing module contains vision calibration, stencil matching and image processing; using a fully automatic mode based on the vision feedback system, no user intervention operation is required, only a simple The dynamic tracking module matches the vision processing results with the operation of the external conveying line and carries out dynamic tracking to achieve a seamless interface between machine and vision.
