Latestauger Type Powder Filling Machine Techflow Pack Company

Product details of the auger type powder filling machine

Product Information

auger type powder filling machine is manufactured by our dexterous professionals using superior quality materials. This product is strictly controlled by professional quality check team to avoid any flaws. auger type powder filling machine is a very important part of promoting Techflow Pack's competitiveness.

Product Description

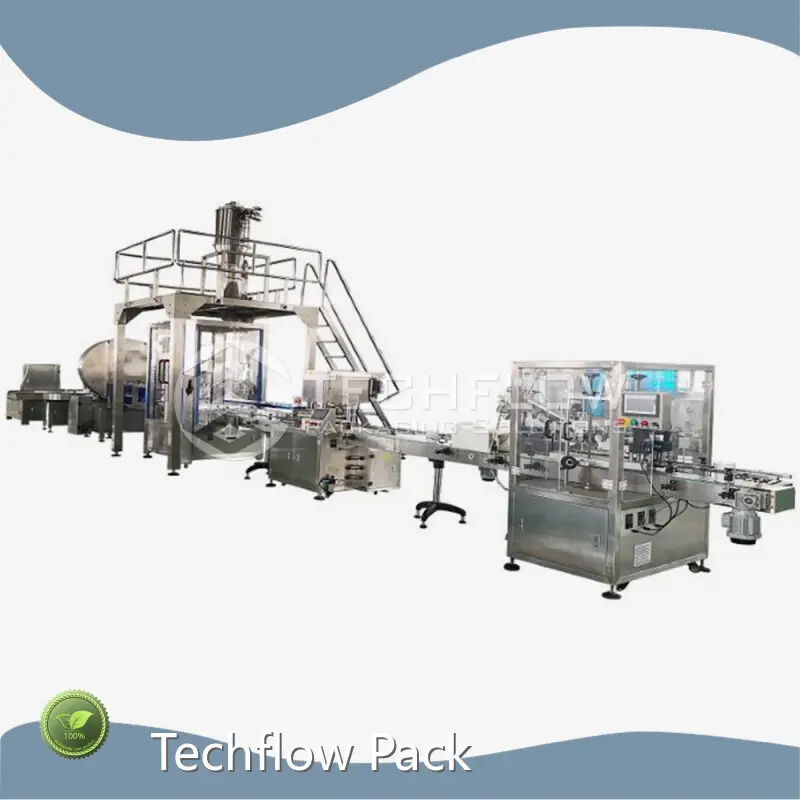

Automatic Double Auger Filler Milk Powder Filling Line is the end of powder packing line for Canned products.

This milk powder filling line is composed of powdery or fine granular material conveying&handling system, auger fillers, Cans seamer&capper, Metal detector, Data printer etc.

Applications

Automatic Double Auger Filler Milk Powder Filling Line is mainly for Coffee powder, milk powder, Protein powder industries end of line packaging.This filling line is designed and constructed by TECHFLOWPACK. Client contacts with one window only from the contract signature, normal production and after service. It's mostly used for milk powder, protein powder canning(bottling) production.

a1 (3)

a2 (3)

a3 (3)

Technical Features 01

The main structure of machine in the line is made of S.S304,English is displayed in touch screen(customized),the machine is designed in term of National "QS" and "GMP" with European designing ideas.

Technical Features 02

It's available to store 10 kinds of working parameters in the machine for flexible product changeover. For the dusty materials, we can add a vacuum device to keep the workplace clean.

Technical Features 03

By changing the Screw model to scale different dosing weight.

The machine has second weighting and filling after the first filling to make sure high accuracy and packing speed.Automatic and circulative empty cans peeling off. Automatic twice check, circulative reinforce.

Technical Features 04

Filling system is driven by three sets of servo motor, accurate positioning, high precision and settable rotary speed. Reasonable mechanical structure, easy to change parts and clean up.

Technical Parameters

Machine Model	TFP-2B3
Metering method	Screw quantitative
Filling range	Max5000ml
Filling accuracy	<0.3%-1%
Packing speed	Max50 pcs/min(according to dosing weight and material's flowing ability)
Hopper volume	50L+16L
Power supply	380/220V 50-60Hz, 3.5Kw
Machine weight	450kg
Air source	0.5-0.7Mpa
Cans applicable size	D:50-180mm; H: 50-350mm
Total power of the whole line	20Kw

Working Flow

Cans unscrambler→Cans sterilization →Powders vacuum feeding→powder horizontal conveying (control the level of powder metering machine)→powder filling →electronic scale→injection Nitrogen unit →Cans seaming&capping →Cans cleaning→code printing

Company Feature

• The traffic convenience and advantageous geographic location create a broad prospect for Techflow Pack's business development.
• Techflow Pack has an elite team with high overall quality and strong ability. At the same time, we cooperate closely with various universities and invite many experts for guidance. All this provides a good guarantee for the development.
• Techflow Pack's Auger Filler,Pouch Case Packer,Case Packer/Carton Packaging Machine,Case Erector/Carton Erector,Packing Line is available in multiple types and specifications. The quality is reliable, the price is reasonable, and the use is practical.
• Techflow Pack is provided with a number of fully automated production lines and a professional R&D and design team. According to customers' needs, we could develop and manufacture machinery that meets their needs. We provide quality custom services.
• Founded in Techflow Pack has been focusing on the R&D and manufacture of machinery for many years. We continue to provide high-quality machinery in the future.
Techflow Pack's tools are quality and affordable. Feel free to call us or visit our company. We sincerely look forward to your guidance and cooperation.
