Customized Automatic Palletizing Machine Cost
Product details of the automatic palletizing machine
Product Description
Techflow Pack automatic palletizing machine is designed to be environmentally friendly and cost efficient. automatic palletizing machine has all the features that matter on board. Our products have been approved and praised by our old and new customers.

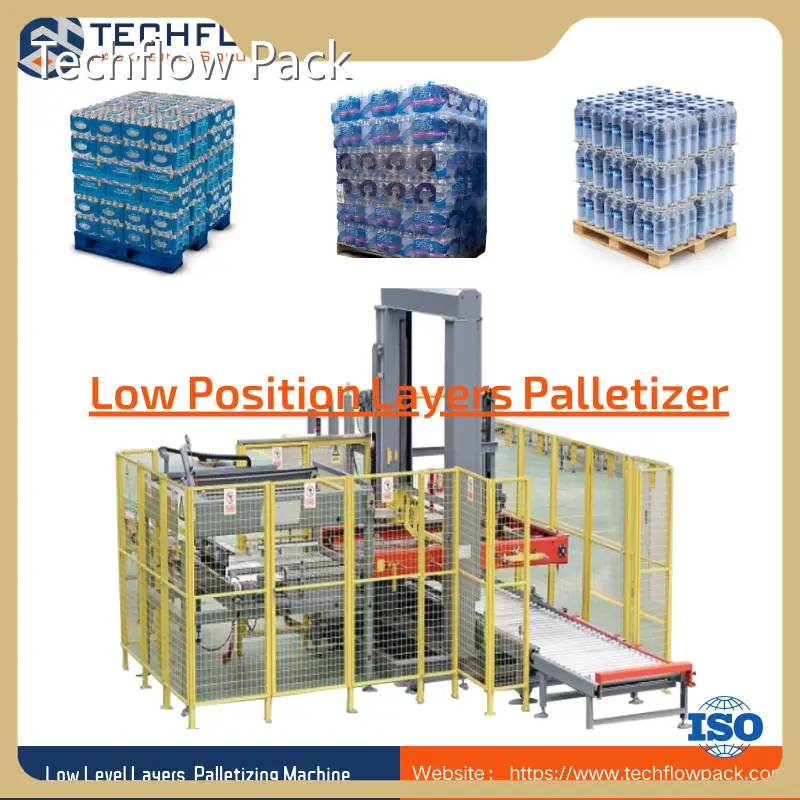

Automatic High Speed Tray Packing Case Packer Layers Palletizer
Product Description
Automatic High Speed Layers Palletizer is a kind of efficient palletizing equipment, which is mainly used for placing packaged goods on pallets according to the preset stacking method. Its structure mainly includes the main structure, driving system, control system, stacking system and other parts.The Layers Palletizer uses PLC + touch screen control, intelligent operation management, simple and easy to learn. It can greatly reduce the labor staff and reduce labor intensity. The layers palletizer is controlled by a computer program that automatically selects the appropriate stacking method and number of layers according to the type and size of the goods. The goods are fed into the palletizing area through the conveyor belt, and the palletizer automatically grips the goods and palletizes them according to the preset stacking method. After the palletizing is completed, the palletizer pushes the pallet out of the palletizing area for subsequent transportation and storage.
Product Specifications
Techflowpack is committed to helping customers achieve more optimized Packing and Palletizing solutions.
| Machine Model | TFP-LM40 |
| Production capacity | Max 40 packs/min |
| Package size range | W:150-450;H:100-350;L:200-600mm |
| Power supply | 380V, 3P,50-60Hz, 15Kw |
| Max load per layer | 150kg |
| Max load per pallet | 1500kg |
| Working gas source | 0.5-0.7Mpa |
| Air Consumption | 150NL/min |
| Machine dimenions | 7200x4050x3700mm |
| Total weight | 190Kg |
| Leg Main frame | Carbon steel with painting |
Product Application
Automatic Layers Palletizer Machine is suitable for all kinds of packaged goods, such as cartons, plastic boxes, sacks and so on. Its application scenarios include logistics centers, warehousing centers, factory production lines, etc., in which it can effectively improve the efficiency of transportation and storage of goods.
PRODUCT STRENGTH
Products Advantages
Automatic Layer palletizer has the advantages of high efficiency, automation, flexibility and stability. Compared with the traditional manual palletizing method, the layers palletizer can greatly improve the palletizing efficiency and precision, and reduce the labor cost and labor intensity. In addition, the automated layers palletizer machine can be customized according to the actual needs, adapting to different goods and stacking methods, with high flexibility.
WHY CHOOSE US?
Product Characteristics
Automatic layers palletizers have a wide range of applications and are compatible with a wide range of packaging formats such as: film-wrapped bottles/cans, American cartons, Wraparound cartons, etc. This palletizing machine also integrates product grouping, automatic stacking, pallet feeding and discharging functions, which greatly improves the packaging efficiency at the downstream of the production line.
Product Details
Safety Standard
Techflowpack Layers Palletizer
1)No operator is allowed to enter into the working range of machine. Operator and machine cannot work simultaneously within the joint operation area.
2)Guard fence shall be arranged around the working area of machine.
3)Operators who enter into the guard fence must have safety training. Safety switch of guard fence is treated as emergency stop.
4)All operable control devices of the system shall be installed outside the guard fence.
5)Necessary operating conditions must be checked before automatic start, re-start and manual operation of machine.
6)Other safety conditions must conform to relevant provisions of national laws.Other safety conditions must follow the safety regulations made by users.
Automated Layers Palletizer
Configuration List
| Main motor | SEW |
| PLC | SIEMENS |
| HMI | SIEMENS |
| Photo sensor | SICK |
| Electronic parts | Schneider |
| Pneumatic parts | SMC/FESTO |
| Invertor | Danfoss |
