Techflow Pack has been a professional automatic packaging machine manufacturer since 2006.
Custom Powder Packaging Machine Wholesale Manufacturer | Techflow Pack
Product details of the powder packaging machine
Product Overview
Techflow Pack's machinery is deeply favored by most customers for the following advantages: reasonable and novel design, compact structure, stable performance, and easy operation and installation. The application of advanced equipment gives Techflow Pack powder packaging machine a fine finished. The product is completed to the highest of standards for reliability and performance within the industry. All of 上海利湃机械设备有限公司's manufacturing facilities conform to the very latest quality management standards.
Product Description
Compared with general products, the powder packaging machine we produce have the following advantages.
Screw metering principle
Auger Filler Head is mainly composed of drive motor, hopper, screw, shaft, agitator, screw mounting sleeve, etc. The rotary feeding of the screw is powered by the servo motor, and the control signal of the number of rotation turns of the screw is calculated by the PLC.
According to the set weight value and material density to obtain the corresponding pulse signal, and then transmitted to the servo motor drive, and then driven by the servo drive according to the input signal of the PLC to rotate the corresponding number of turns, and drive the screw rotation by the synchronous belt to complete each filling feeding process, which can accurately control the number of rotation turns of the screw, thereby improving the accuracy of feeding.
Applications

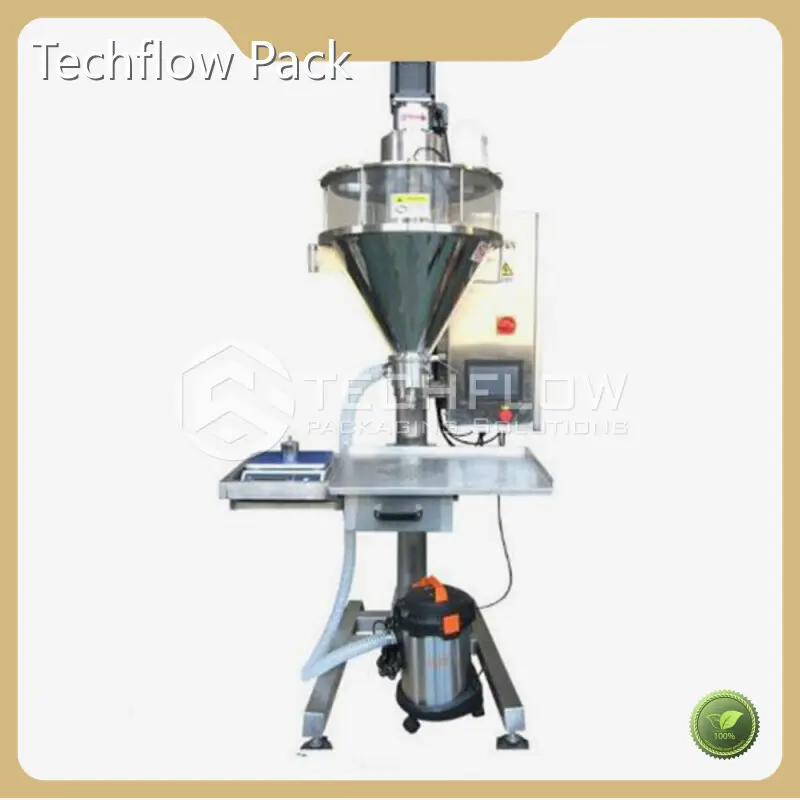

This semi-auto auger filling machine is OEM designed for our Europe Agent. It can be applied to the quantitative measurement of a variety of powders or fine particles such as flour, coffee powder, milk powder, tapioca flour, seasoning powder, chemical powder and other materials. It is suitable for bags, cans,bottles semi-auto filling.
Technical Features 01
This Free Standing Auger filler combined the European Standard with China manufacturing advantage;The whole machine is made of stainless steel 304.
Technical Features 02
English is displayed in touch screen or put customized programming in the touch screen;The machine is designed in term of National "QS" and "GMP"; Could store 10 kinds of working parameters in the machine.
Technical Features 03
Weight feedback and proportion track get rid of the shortage of variable packaged weight for various proportion of different material.
Technical Features 04
For the dusty material , we can add a vacuum device and Ball-Valve Cut-off to keep the workplace clean; The machine suitable for lot kinds of package size and powdery material through changing the screw.
Technical Parameters
|
Model |
TFP-A3 |
TFP-B3 |
|
Metering Mode |
Screw quantitative |
Screw quantitative |
|
Weight Range |
1-500ml |
10-5000ml |
|
Packing Accuracy |
≤0.3-1% |
≤0.3-1% |
|
Packing Speed |
15-60times/min |
10-45times/min |
|
Power Supply |
380/220 50HZ |
380/220 50HZ |
|
Total Power |
1KW |
1.5KW |
|
Machine Weight |
150kg |
260kg |
|
Hopper capacity |
25L |
50L |
Basic Configuration
|
No |
Items |
Brand |
|
1 |
PLC |
SIEMENS |
|
2 |
HMI |
SIEMENS |
|
3 |
Level Optonics |
SICK |
|
4 |
Electronic parts |
Schneider |
|
5 |
Servo motor |
INOVANCE |
|
6 |
Stirring motor |
GPG |
|
7 |
Main structure |
S.S304 |
Company Advantages
Since our inception, 上海利湃机械设备有限公司 has built a reputation for strong abilities in the developing and manufacturing of powder packaging machine. 上海利湃机械设备有限公司 has fully developed its own strength in developing new powder packaging machine. The kind of finest powder packaging machine and professional service shown in Techflow Pack fully manifests the uniqueness of our company culture. Get quote!
Dear customer, thanks for visiting! If you have any comments or suggestions on Techflow Pack's Auger Filler,Pouch Case Packer,Case Packer/Carton Packaging Machine,Case Erector/Carton Erector,Packing Line, please contact us. Your valuable suggestions contribute to the constant development.
No.99#Shenmei Road, Pudong District, Shanghai，China
