Custom Made Depalletizer

Product details of the depalletizer

Product Information

Techflow Pack depalletizer is provided by a strong R&D team with technical improvements. The product is of consistently high quality and performance. There is strict institution in 上海利湃机械设备有限公司 for depalletizer to ensure high quality.

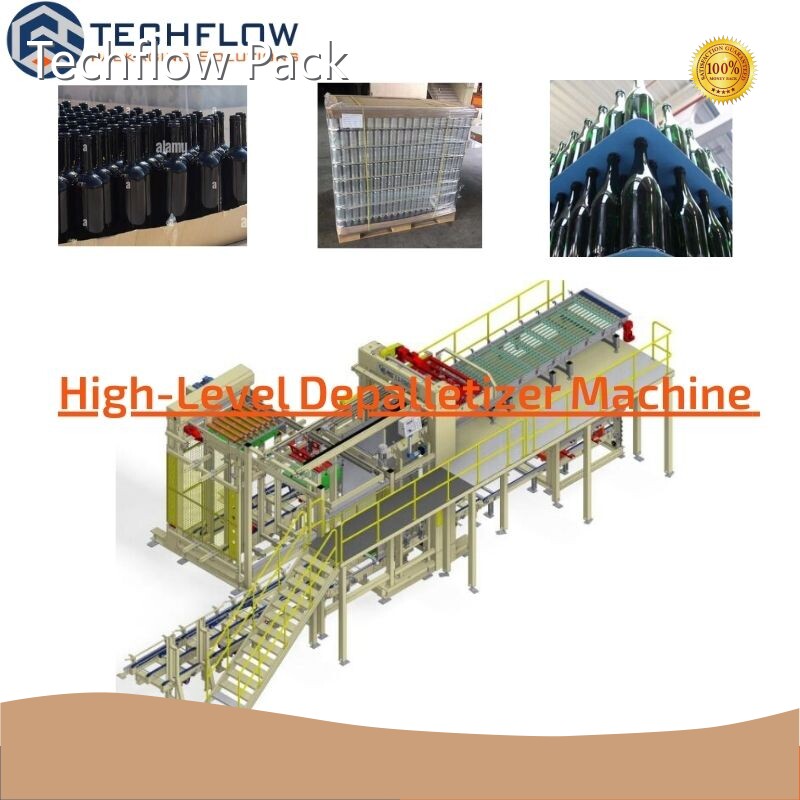

High level Depalletizer Machine

Product Description

Forklift transport the complete stack of empty bottles to the full pallet conveyor of High-level depalletizer, then the conveyor transport the full stack to the main lifting platform, the lifting platform lift up the full stack layer by layer.The interlayer collecting structure suck the interlayer and move it out of the stack, after that, the interlayer collecting mechanism will collect the interlayers and lift it down to conveyor when the interlayers is stored as one stack; the clamp of bottle grips the whole layer of bottles and moves them to empty bottle conveyors, repeat these actions until the all the layers are moved to the conveyor, then the lifting platform will down and output the empty pallet to the pallet magazine.

Product Application

The high level depalletizer is mainly used in the high-speed packaging production line of liquid, beverage, food, daily chemical and other industries for the separation of the whole stack of empty glass bottles and metal cans, the removal of partitions and pallets, and the realization of orderly conveyance of empty bottles and cans to the front part of the production line and automatic infeeding.

WHY CHOOSE US?

Product Characteristics

 Normally, our technicians will visit the customer's site to take measurements and give an optimal layout of the production line according to the safety standards of the food industry. Techflowpack's high-level depalletizer machine has the following features

Pallet magazine

main body is 150*150 H type steel，stand column is welded by 18# groove steel and painted( the same with the car painting process). The lifting of this mechanism adopts the helical gear motor with brake, when it starts to lift and stop, it is much stable and precise; the lifting chain is RS80 double raw. The clamp mechanisms of two side are drove by cylinder.

Main Part

The main lifting motor is horizontal helical gear motor with brake, so that the lifting action will be stable and precise. The fixing parts are adjustable, so that adjusting the levelness and perpendicularity. The movable doors of two sides are made of square tube welding with 3T stainless steel, which is drove by the cylinders.

The clamp of bottle

4 groups of cylinders work together to clamp the bottles, this structure are customized according the bottle shape, which is good for stability of running.

Main lifting structure

The main lifting structure is drove by the horizontal helical gear motor with brake; the lifting actions will be stable and precise. The fixing part of the main lifting structure is adjustable, so that we can adjust the levelness and perpendicularity.

Product Details

Pallets dispenser

Main part

Main Lifting Structure

Clamp of containers

Techflowpack's High-level depalletizer

Configuration list

This High-level depalletizing machine is based on a regular production schedule and a relatively stable market supply and demand. Under special circumstances, some brands will be replaced with other brands of equivalent quality. The lowest prices in the indicated prices are based on domestic market configurations.

PLC	SIEMENS
HMI	SIEMENS
Photo sensor	SICK
Motor with brake	SEW+OMT
Electronic parts	Schneider
Servo motor	INOVANCE/SIEMENS
Pneumatic parts	SMC/FESTO
Invetor	Danfoss
