Bestautomatic Auger Filler Machine Techflow Pack Company

Company Advantages

· Techflow Pack automatic auger filler machine is processed in conformity with the highest production standard.

· The product has passed strict quality testing in each procedure under the quality management system.

· 上海利湃机械设备有限公司 has set up oversea warehouse to achieve sufficient and timely supply of automatic auger filler machine.

Product Description

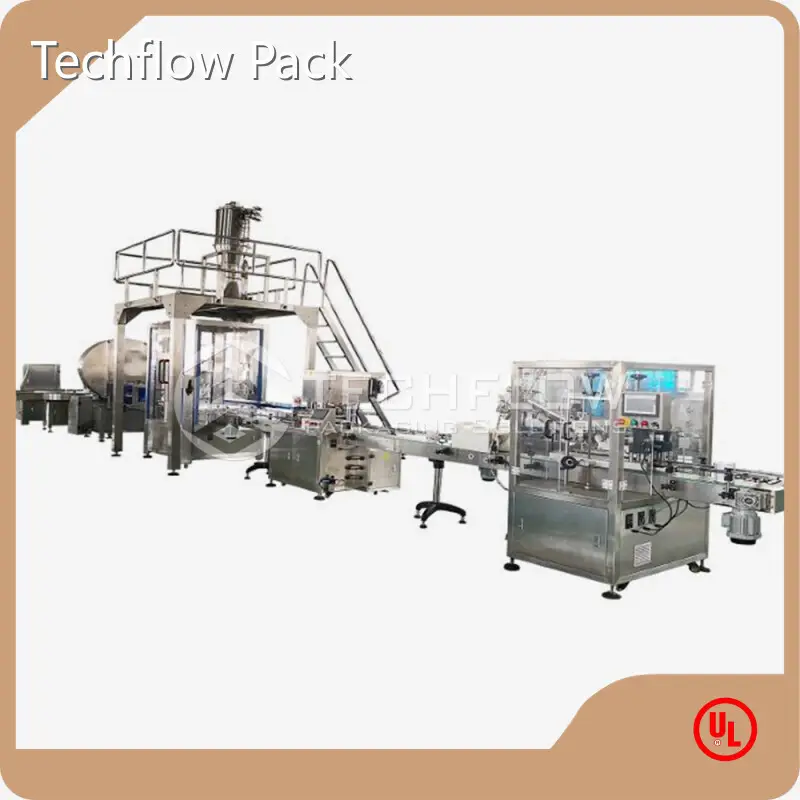

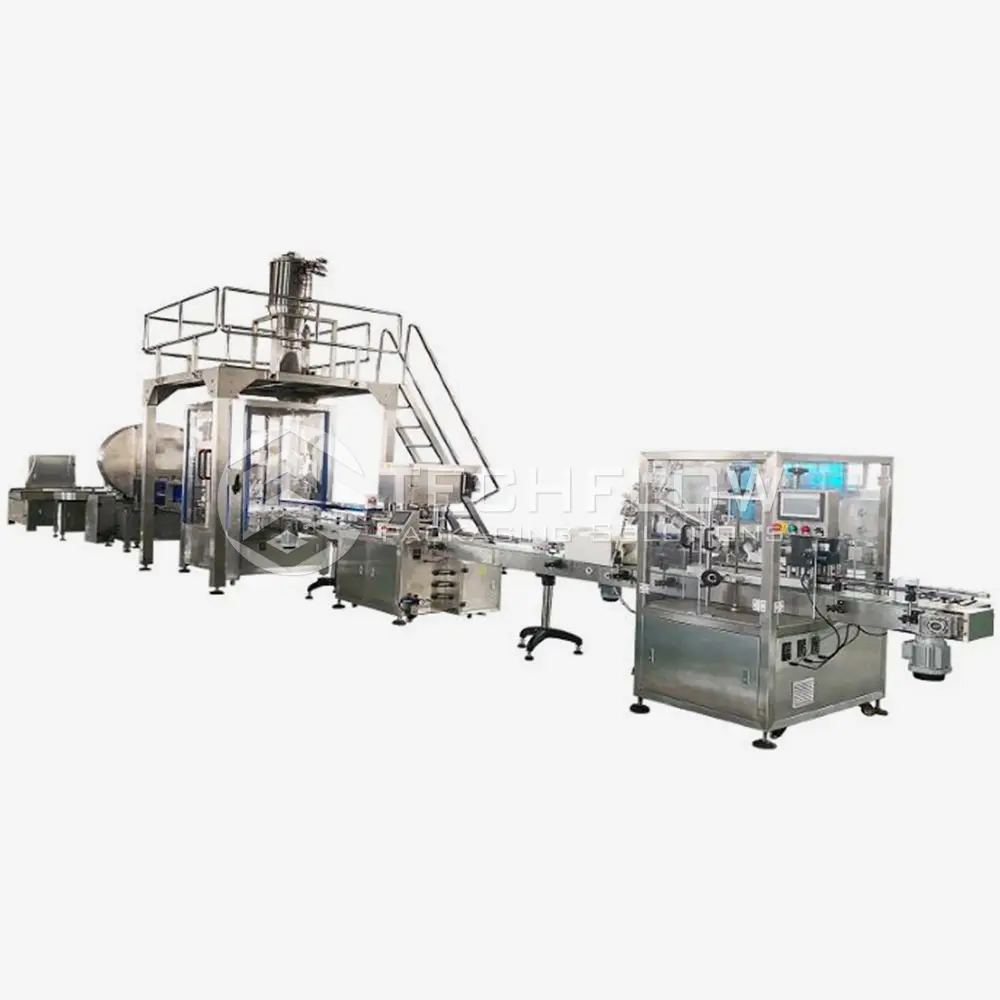

Automatic Double Auger Filler Milk Powder Filling Line is the end of powder packing line for Canned products.

This milk powder filling line is composed of powdery or fine granular material conveying&handling system, auger fillers, Cans seamer&capper, Metal detector, Data printer etc.

Applications

Automatic Double Auger Filler Milk Powder Filling Line is mainly for Coffee powder, milk powder, Protein powder industries end of line packaging.This filling line is designed and constructed by TECHFLOWPACK. Client contacts with one window only from the contract signature, normal production and after service. It's mostly used for milk powder, protein powder canning(bottling) production.

a1 (3)

a2 (3)

a3 (3)

Technical Features 01

The main structure of machine in the line is made of S.S304,English is displayed in touch screen(customized),the machine is designed in term of National "QS" and "GMP" with European designing ideas.

Technical Features 02

It's available to store 10 kinds of working parameters in the machine for flexible product changeover. For the dusty materials, we can add a vacuum device to keep the workplace clean.

Technical Features 03

By changing the Screw model to scale different dosing weight.

The machine has second weighting and filling after the first filling to make sure high accuracy and packing speed.Automatic and circulative empty cans peeling off. Automatic twice check, circulative reinforce.

Technical Features 04

Filling system is driven by three sets of servo motor, accurate positioning, high precision and settable rotary speed. Reasonable mechanical structure, easy to change parts and clean up.

Technical Parameters

Machine Model	TFP-2B3
Metering method	Screw quantitative
Filling range	Max5000ml
Filling accuracy	<0.3%-1%
Packing speed	Max50 pcs/min(according to dosing weight and material's flowing ability)
Hopper volume	50L+16L
Power supply	380/220V 50-60Hz, 3.5Kw
Machine weight	450kg
Air source	0.5-0.7Mpa
Cans applicable size	D:50-180mm; H: 50-350mm
Total power of the whole line	20Kw

Working Flow

Cans unscrambler→Cans sterilization →Powders vacuum feeding→powder horizontal conveying (control the level of powder metering machine)→powder filling →electronic scale→injection Nitrogen unit →Cans seaming&capping →Cans cleaning→code printing

Company Features

· Techflow Pack is a competitive company in automatic auger filler machine field.

· Our company is replete with many technical experts. Their professional attitude, rich engineering customization experience, and profound insight into the automatic auger filler machine market trend enable us to be recognized by many customers. Our products including automatic auger filler machine have enjoyed great popularity in the world markets. They have been extensively exported to many countries, such as the Canada, South Asia, Germany, and America.

· We are a company with a keen sense of environmental responsibilities and a determination to follow a policy of sustainable development. Every stage of the manufacturing processes in our facilities has been studied and reassessed to see if there is any way in which it can be made more energy-efficient. Sustainability is built into the way we work.

Application of the Product

The automatic auger filler machine produced by Techflow Pack is very popular in the market and is widely used in industry.

Techflow Pack insists on providing customers with comprehensive solutions based on their actual needs, so as to help them achieve long-term success.

Product Comparison

After being improved greatly, Techflow Pack's automatic auger filler machine is more advantageous in the following aspects.

Enterprise Advantages

Our company has not only a technical team with excellent professional knowledge, but also a business team with strong business capabilities. Thus, we guarantee that our products have high technical value and sufficient market supply.

Techflow Pack always insists on the principle to be professional and responsible. We are dedicated to providing quality products and convenient services.

With spirit of 'integrity, innovation, active service and excellence', the sincere Techflow Pack is willing to cooperate with you for a better future!

Techflow Pack was founded in After years of development, we accumulate a wealth of production experience and professional technical knowledge.

Based on the local market, our company has now established a nationwide marketing network. And we strive to enter the international stage depending on self advantages.
