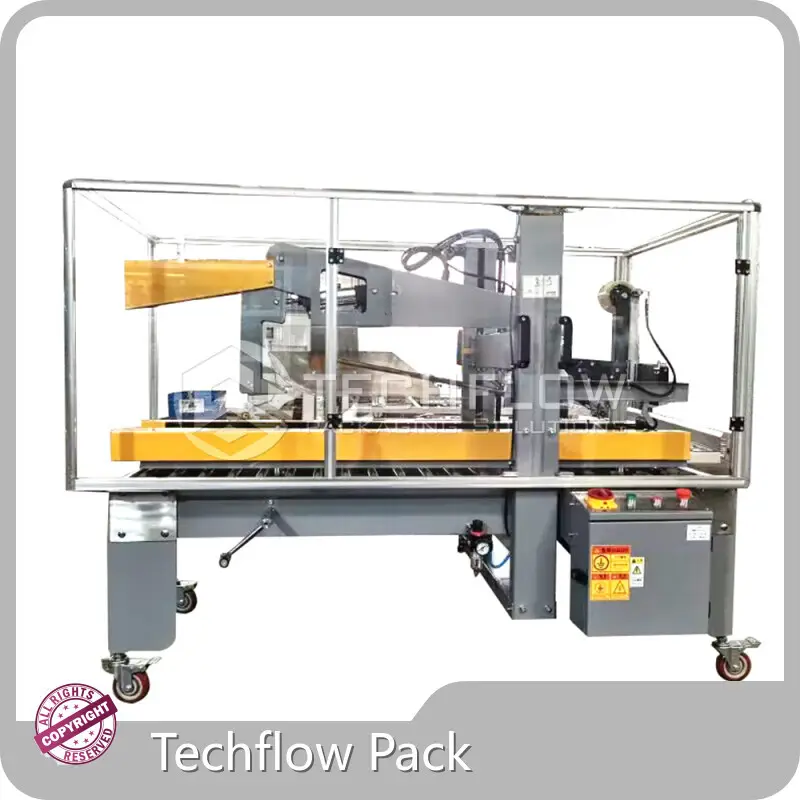

Semi Automatic Case Erector by Techflow Pack
Product details of the semi automatic case erector
Product Information
The design of Techflow Pack semi automatic case erector is practical, which adopts advanced and innovative design concepts. It is believed to provide unmatched performance. The product has been universally recognized with a bright development prospect.
Product Description
Automatic case sealing machine is one of the components of automatic case packing production line, its working principle like the following: product is sent to the sealing machine through the conveyor chain (belt, roller), and handed over to the box delivery mechanism, and the two sides of the carton are clamped by the clamping belt and move forward. After the folding mechanism receives the photoelectric signal, the folding pages at the front and rear ends of the carton are automatically bent back by the folding mechanism, the folding covers at the left and right ends are automatically bent to the middle through the guide rod, and the tape is automatically pasted along the center line, at the same time, the press box belt pulls the carton forward to run forward to complete the sealing action.
Applications
Automatic Flap Folding Carton sealing machine is mainly suitable for sealing and packaging of cartons, which can be operated stand-alone or used with assembly lines, and is widely used in household appliances, textiles, food, department stores, medicine, chemical and other industries. The sealing machine adopts tape to seal the carton, which is economical and quick and easy to adjust, and can complete the automatic sealing action at one time, such as the use of printing tape, which can improve the product image.
Technical Features 01
Using imported sealing machine accessories new patented tape applicator, no blower blowing tape, the use of patented tablet pressing device, so that the tape will stand up without bending and causing it to not be pasted, and the sealing packaging is convenient.
Technical Features 02
Sealing tape manufacturers independently innovate large-scale transmission wheel design, increase the bending arc, increase the belt contact area, the belt will not slip, and the service life increases, and the sealing machine technology is very mature. The main drive mechanism of the professional sealing machine uses a special peling seat with high precision and low noise to increase the service life of the belt.
Technical Features 03
Flexible changeover for different carton sizes, very short time to complete mechnical structure changeover(3mins);Easy fit for current existing lines to get production automation upgrading.
Technical Features 04
Easy fit for current existing lines to get production automation upgrading;safety door as optional,out of tape with alarm alert.Automatic error message display provides convenient shooting trouble.
Technical Parameters
|
Machine Model |
TFP-CS30 |
|
Tray/Box Size |
(200-650)x(150-480)x(120-450)mm |
|
Production capacity |
Max30 pcs/min |
|
Gas consumption |
150NL/min |
|
Gas pressure |
0.4-0.7mpa |
|
Power supply |
380V/220V;50-60Hz, 0.3Kw |
|
Machine dimension |
1800x1150x1200mm |
|
Machine weight |
200Kg |
Basic Configuration
|
No |
Items |
Brand |
|
1 |
Photo sensor |
SICK |
|
2 |
Main motor |
GPG |
|
3 |
Electronic parts |
Schneider |
|
4 |
Pneumatic parts |
Airtac/SMC |
|
5 |
Main structure |
Carbon steel with painting |
Company Advantage
• Our company has advanced production equipment and professional management team. Based on the strong R&D and production strength, we can provide customers with professional custom services.
• In the past years, Techflow Pack has been focusing on the R&D and manufacturing of machinery. Our machinery gains the trust and recognition for high cost performance, good quality, and favorable price.
• Techflow Pack has set up an experienced and knowledgeable team to provide all-around and efficient services for customers.
• Techflow Pack has a large number of outstanding professional talents, which lays a solid foundation for the development.
• Techflow Pack is located in a place with traffic convenience. There are highways, railways, and airports.
Dear customer, if you are interested in Techflow Pack's Auger Filler,Pouch Case Packer,Case Packer/Carton Packaging Machine,Case Erector/Carton Erector,Packing Line and would like to know more details, please feel free to contact us. We will provide professional services!
