Hot Automated Palletizing Equipment Techflow Pack Brand
Product Description
Palletizer is according to a certain code on the Pallet, automatic stacking, stacking multiple layers can then launch, easy forklift transport to warehouse storage.
This equipment uses PLC + touch screen control, intelligent operation management, simple and easy to learn. It can greatly reduce the labor staff and reduce labor intensity.
Applications

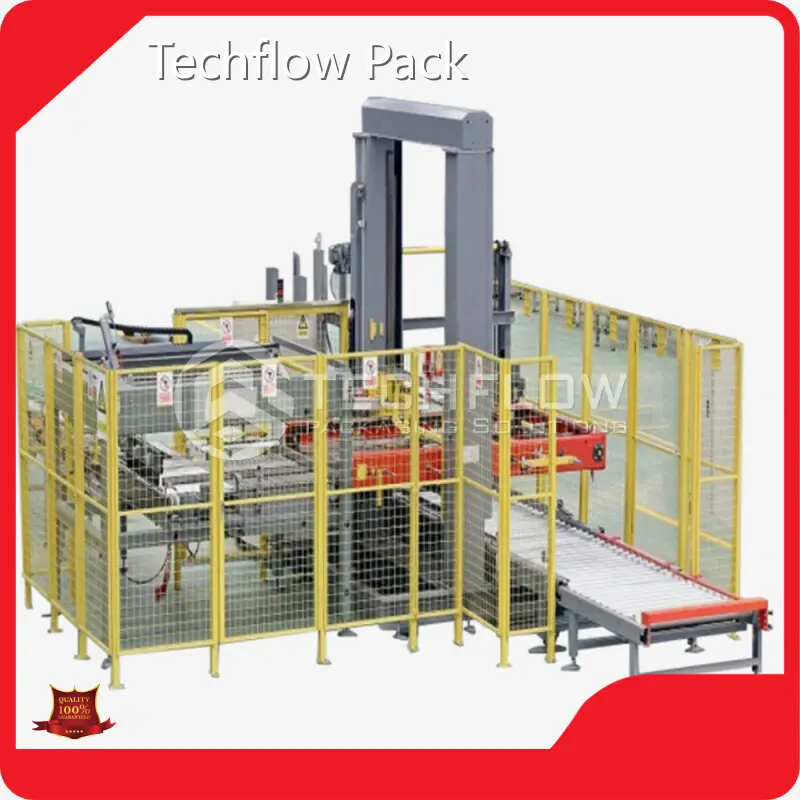

The Automatic Layers Palletizer is also called Low-position palletizer machine according to a certain code on the Pallet to automatic feed the products and empty pallets then automatic stacking multiple layers products on the pallet for output. This palletizer is mostly used for high capacity production line such as the water bottling line, beverage filling line, oil filling line and high capacity food product packing line.
Technical Features 01
The Lifting platform moves up and down by the driving force of the main motor. It is compacted by a SMC cylinder at three sides and by a hanging plate at the back to avoid the cracking of stack. A flexible roller is added on the movable plate, which can reduce the friction of boxes bottom and prevent boxes moving out of the lifting platform.
Technical Features 02
Cartons are transferred to arrangement&buffer system through the roller conveyor. In order to better meet customers' requirements for arrangement, an adjustable stop bar is installed under the system, which can be freely adjusted by hand and provide various modes of arrangement, thereby increasing the efficiency.
Technical Features 03
Using touch screen man-machine dialogue, the production speed can be displayed, and the cause of the fault location, high degree of automation. It adopts PLC programmable carton sorting stacking layers, pallet supply and discharge can be programmed to control.
Technical Features 04
Guard fence, safety gate and protective device: square carbon steel tubes and round steel meshes are welded together and varnished.Necessary operating conditions must be checked before automatic start, re-start and manual operation of machine.
Technical Parameters
|
Model: |
TFP-LM40 |
|
Case Size |
width150mm-450mm |
|
height: 100mm-350mm |
|
|
Length: 200mm-600mm |
|
|
Packaging Capacity |
Max 40 packs/min |
|
Power supply |
380V 50-60Hz 3P |
|
Power |
15.3Kw |
|
Maximum load per layer |
150Kg |
|
Maximum load per pallet |
1500kg |
|
Working Gas Source |
0.5-0.7MPa |
|
Air Consumption |
150NL/Min |
|
Machine Dimensions |
L7200*W4050*H3700mm |
|
Weight |
1900kg |
|
Main frame |
Carbon steel with printing |
Basic Configuration
|
No |
Items |
Brand |
|
1 |
Main motor |
SEW |
|
2 |
PLC |
Siemens |
|
3 |
HMI |
Siemens |
|
4 |
Photo Sensor |
SICK |
|
5 |
Electronic parts |
Schneider |
|
6 |
Pneumatic parts |
SMC/FESTO |
|
7 |
Inverter |
Danfoss |
Company Advantages
· The design of Techflow Pack automated palletizing equipment achieves a perfect balance between aesthetics and functionality.
· Techflow Pack sets up an integrated series of quality assurance system to ensure its quality.
· We have the ability to supply automated palletizing equipment offered by our professional producers with the help of partners.
Company Features
· Techflow Pack is the dominant supplier with rich experience in producing automated palletizing equipment.
· 上海利湃机械设备有限公司 has a high-quality professional production team.
· Accurately grasping the pulse of the times, Techflow Pack concentrates on the innovation development to be more competitive in the market. Ask!
Application of the Product
Techflow Pack's automated palletizing equipment can be used in multiple scenes.
We can provide customers with the most professional and effective solutions based on market research results and customer needs.
