Automatic Packing Machine by Techflow Pack

Company Advantages

· Techflow Pack can quickly develop any style automatic packing machine.

· The strict quality management is conducted according to international standards.

· The product will soon become the standardized one in the field.

Product Description

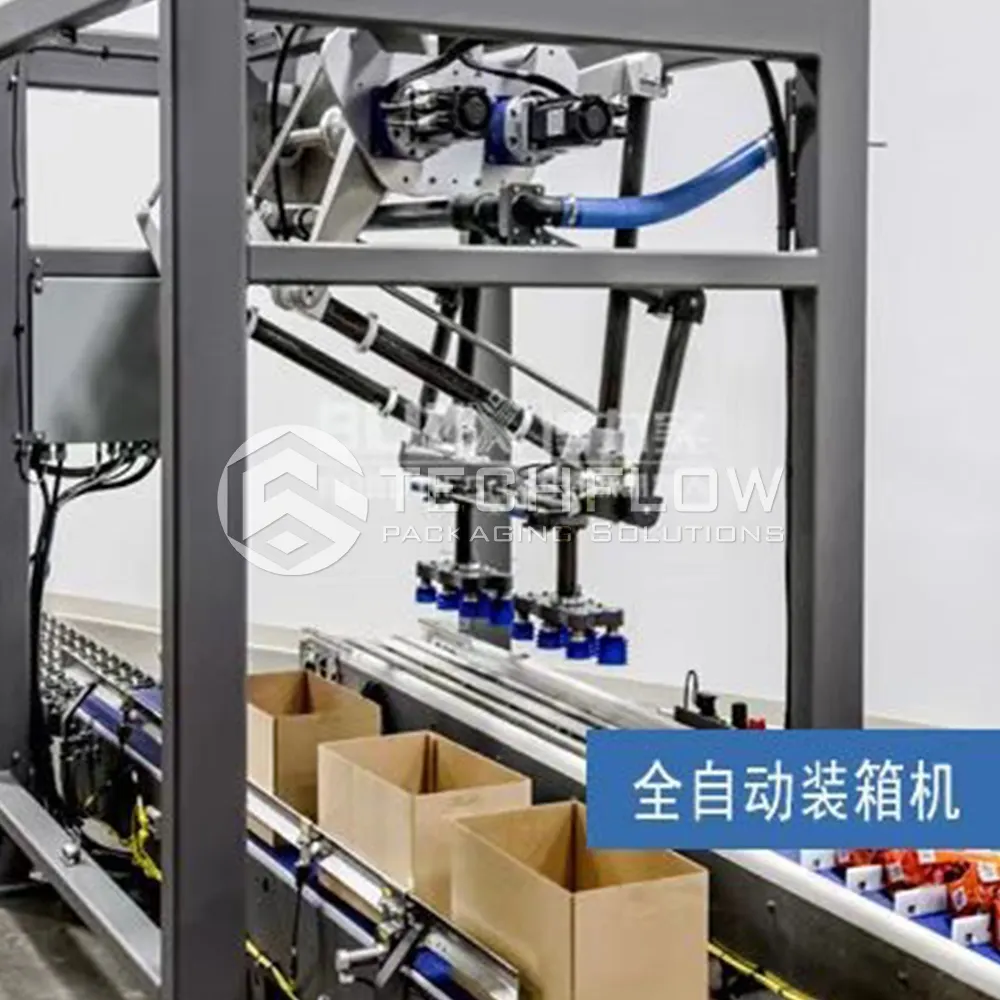

The front-end servo splitting machine will divide the products transported by a single conveyor line into multiple channels, the full-material detection mechanism on the multi-channel mesh belt line detects the full material and gives the full material signal, the back-end pressure relief mechanism acts, so that the product pulls out the predetermined number of boxes of the product on the mesh belt line, and the robot receives the pressure relief and the predetermined number of boxes. The product is in place after grabbing and placing the product into the carton then complete carton sealing.

Applications

This multi-function Pick-and-Place case packer is a smart solution for high capacity continuous production especially the Heavy-duty product such as  Jar(0.5L-2L) and bags(0.5-5kg). With strong structure and stable grapping action, this case packer has being used for Food, Beverage, Dairy, Daily Chemical Industries.It's mainly applicabale for bagged products, such as Premade standing pouches& Doypack bags, also boxed or bottled products auto carton top-laod packaging.

a1 (9)

a2 (9)

a3 (9)

Technical Features 01

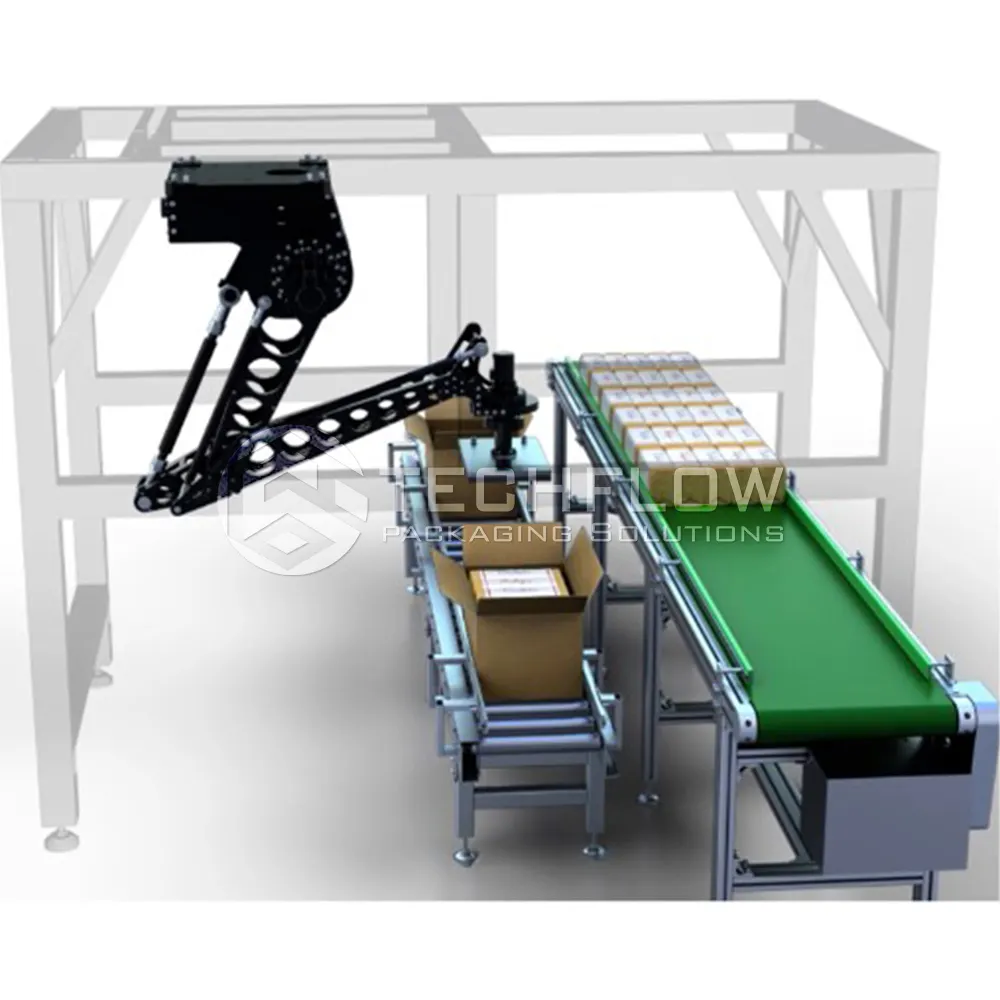

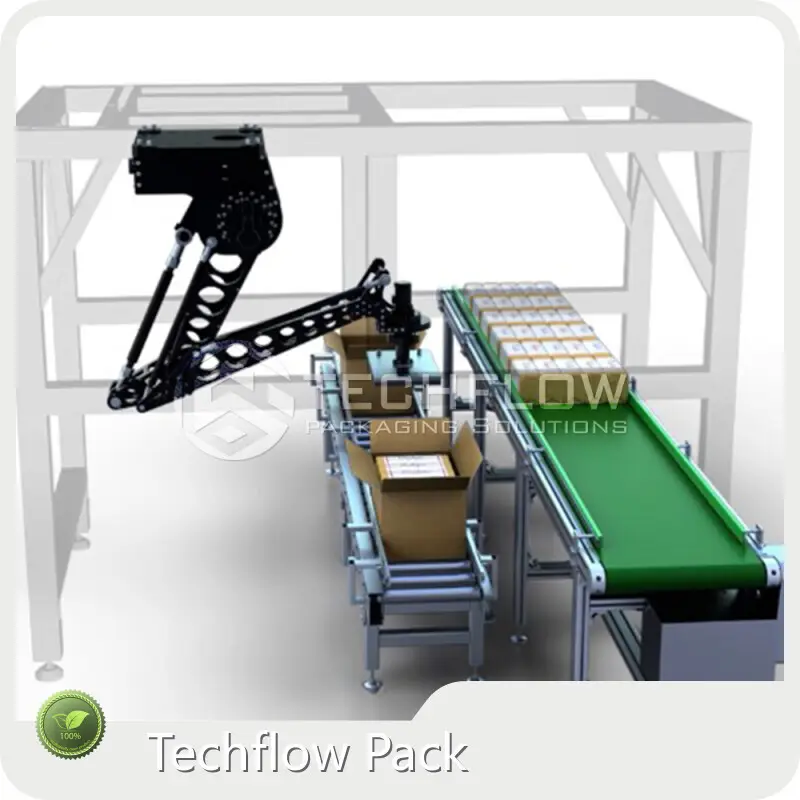

Two-axis Robot Arm’s main frame are made of aluminum profile and carbon fiber. Upside down installed on the machine's outside frame.Max loading: 60kg. Working space diameter: 1000mm, repeatability positioning: 0.02mm. The fixture adjusts according to the shape of the product.All protective door are equipped with safety switch. The machine will stop immediately when open the door, to ensure safe operation without accidents.

Technical Features 02

Main drive use of servo motor as the main drive, a series of cylinder action folding, with side spray glue and side pressure mechanism, the box moved to each station, and for a process, the final sealing box output.Servo drive control for carton loading to get products smoothly place in the carton.

Technical Features 03

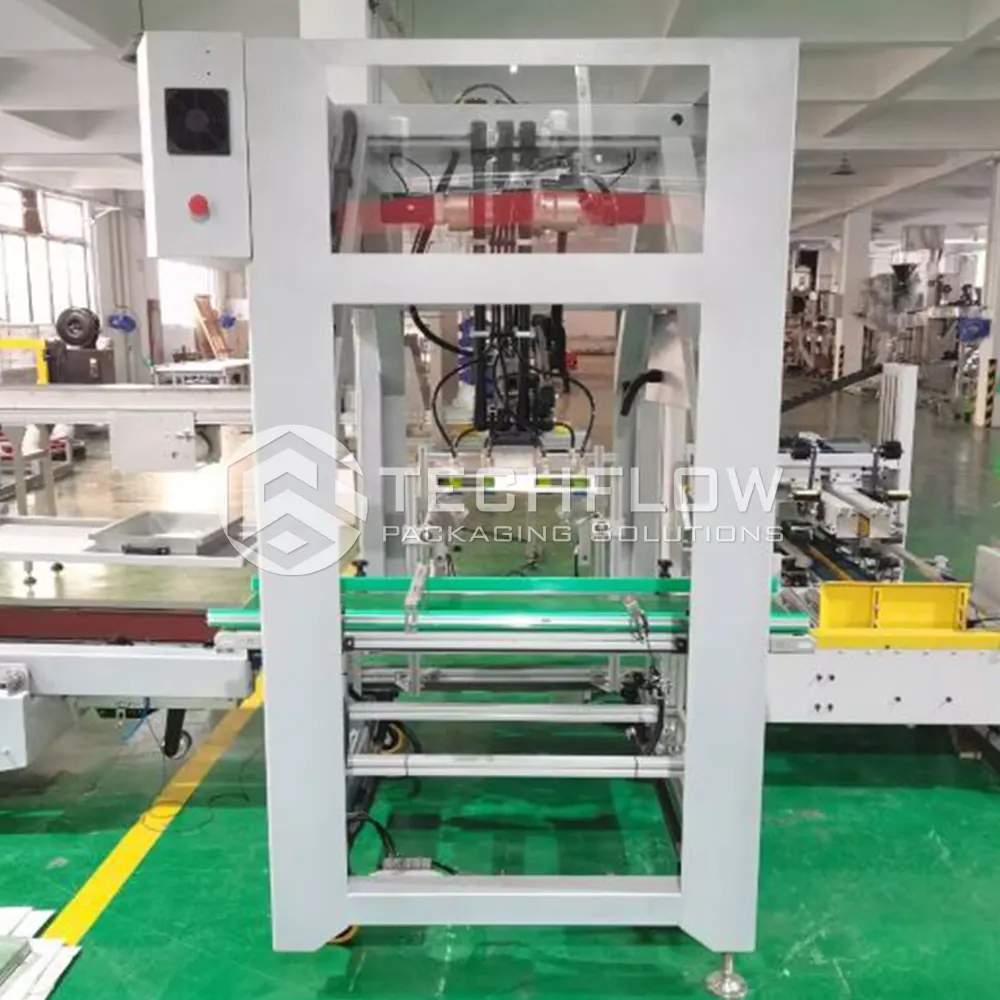

Carton formed holder is made of SUS304 and aluminum alloy, which is synchronized by two cylinders as the power of up and down lifting, and the gear rack is used to achieve synchronization with the coupling.Flexible to handle different product by changeover the clamper&fixtures.

Technical Features 04

Carton loading conveyor is made of 3mm304 stainless steel, powered by the motor, conveyed by modular mesh belt, and the two sides are limited by the guardrail, and there is a blocking mechanism in the middle, and the blocking function is realized through the cylinder action. Manually adjust the position of the blocking cylinder and the position of the conveyor guardrail to realize the production of switching carton specifications.

Company Features

· By giving quality automatic packing machine at a competitive price, 上海利湃机械设备有限公司 has been highly recognized in the worldwide industry.

· Our company attracts and retains top talent. As technical problem-solvers for us and our customers, these people have all the skills, knowledge and capabilities of the automatic packing machine industry to develop extraordinary products. Our company has designers who are proficient in designing automatic packing machine. They keep pace with the latest market needs and are able to develop products that meet their goals on time.

· Our mission is to help customers create amazing products that attract the attention of their customers. Whatever the customer does, we are ready, willing and able to help them differentiate their products in the automatic packing machine market. This is what we do for every customer.

Product Details

With a focus on product quality, Techflow Pack pursues perfection in every detail.

Application of the Product

Our automatic packing machine can be used in a variety of industries to play a certain role.

Techflow Pack is committed to providing customers with high-quality Auger Filler,Pouch Case Packer,Case Packer/Carton Packaging Machine,Case Erector/Carton Erector,Packing Line as well as one-stop, comprehensive and efficient solutions.

Enterprise Advantages

Our company operates complete management and standardized production, with the high-quality management team and experienced production team.

Under the trend of E-commerce, Techflow Pack constructs multiple-channels sales mode, including online and offline sales modes. We build a nationwide service system depending on advanced scientific technology and efficient logistics system. All these allow consumers to easily shop anywhere, anytime and enjoy a comprehensive service.

To achieve a bright future, our company takes honesty, fairness, justice, respect for science, and common prosperity as the development concept.

Our company was established in We have gone through years of rapid development, resulting in the good reputation and competitiveness.

Techflow Pack's Auger Filler,Pouch Case Packer,Case Packer/Carton Packaging Machine,Case Erector/Carton Erector,Packing Line enjoy a good reputation at home and abroad. They are not only widely sold in the domestic market, but also exported to Europe, America, Southeast Asia, Asia, and other countries and regions.
