Techflow Pack has been a professional automatic packaging machine manufacturer since 2006.
Techflow Pack Packaging Machinery Manufacturers Company
Product details of the packaging machinery manufacturers
Product Description
Techflow Pack packaging machinery manufacturers is designed and manufactured under the supervision of experts by employing the latest technology following industry standards. The product is tested by our QC team who regards the testing as an important factor of product performance. Thus, the conducted testing is highly in line with international testing standards. 上海利湃机械设备有限公司 takes 'meeting customer needs and increase customer value' as the starting point for business operations.
product description

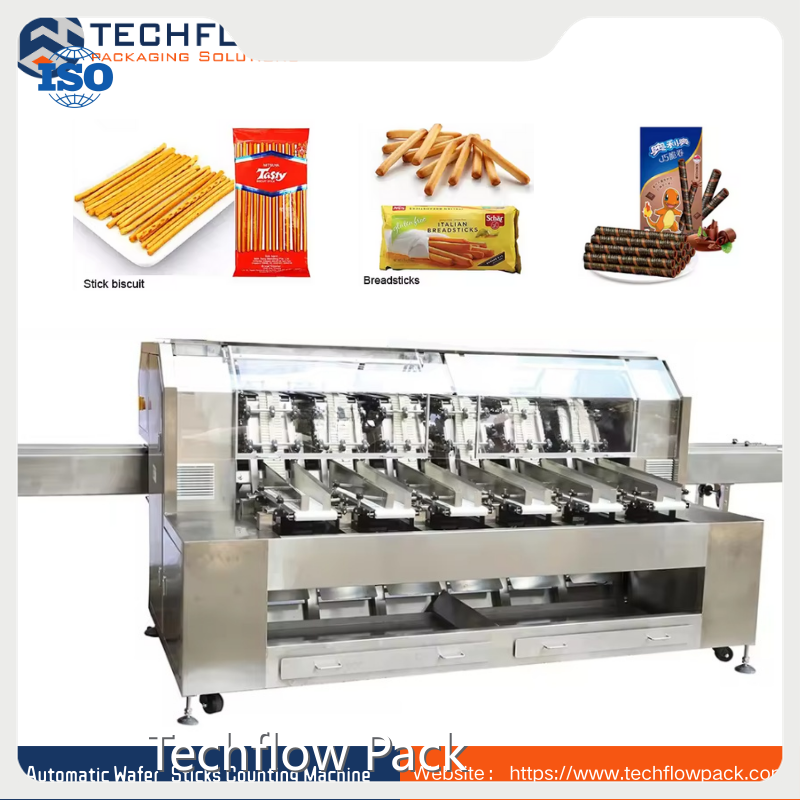

The automatic wafer sticks sorter counting machine consists of a main raw material storage bin, an equal-grid climbing belt conveyor, an integrated hopper, a photoelectric counting system, and a terminal output belt conveyor.Bulk sticks are transported from the raw material storage bin to the photoelectric counting system by the equal-grid climbing belt for counting. The quantitatively counted products load into the integrated hopper, and then enter the horizontal flow wrap packaging machine or cartoning machine station via the terminal belt conveyor.
Applications
Automatic Wafer Sorter Counting Machine is suitable for various stick shape products which need to count and pack such as breadstick, grissini, biscuit stick, chocolate dip cup, wafer roll, and ham sausage, crab stick, finger cookies, dipping stick cookies, coatedstick cookies, whole wheat bars, wafer rolls, and other stick shaped products etc.
Technical Features 01
The automatic wafer sorter counting system could finish automatically separating the tray, (biscuit stick, egg roll) counting the product and loading it into the tray automatically, sorting and packing function. No one touches the food in the whole packing process to reduce the
secondary pollution and meet the food hygiene requirement.
Technical Features 02
The process of sorting, conveying , feeding and packaging are fully automated, without manual operation.Customer can not only dump products on feeding belt by manual, but also connect with the production line Work in coordination, Speed change, automatic stop/start in case of material absence/supply and other intelligent control.
Technical Features 03
The automatic sticks sorter counting system realizing intelligently control the whole machine through the touch screen and embedded PLC real-time interactive operation. It collocates the product menu function that’s easy and quick to adjust the product.
Technical Features 04
PLC and servo control,touch screen display, packaging process visualization. Work stable, simple and convenient operation.
High precise and high sensitive SICK electric eye-tracking system to control accurately.
Technical Parameters
|
Model |
TFP-ZT300 |
|
Counting format |
Optoelectronic+ equal-grid belts |
|
Production capacity |
Max 120packs/min |
| Main belt width |
100/200 mm |
|
Power supply |
220V, 3Kw(customized) |
|
Machine dimension |
6000x1750x1300mm |
|
Machine weight |
1000Kg |
Basic Configuration
|
No |
Items |
Brand |
|
1 |
PLC |
Schneider/SIEMENS |
|
2 |
HMI |
Schneider/SIEMENS |
|
3 |
Photo sensor |
SICK |
|
4 |
Main Drive |
SEW |
|
5 |
Electronic parts |
Schneider |
|
6 |
Pneumatic parts |
SMC/FESTO |
|
7 |
Frequency converters |
Schneider/Danfoss |
|
8 |
Main structure |
Stainless steel and Aviation aluminum |
Company Feature
• Techflow Pack's machinery is deeply favored by most customers for the following advantages: reasonable and novel design, compact structure, stable performance, and easy operation and installation.
• Techflow Pack was founded in In the past years, we have been focusing on the design, production, and sales of machinery. We enjoy a good reputation in the industry.
• With a constant focus on customers, Techflow Pack is dedicated to meeting customers' needs. We effectively take their actual condition into account. We provide professional and efficient custom services.
• At the moment, our company's sales network has spread all over the country's major cities and regions. In the future, we will strive to open up a broader overseas market.
• Techflow Pack's location enjoys traffic convenience with multiple traffic lines passing through. This is conducive to the outward transportation and is the guarantee of timely supply of products.
Techflow Pack is dedicated to solving various problems for customers. Please come and contact us.
No.99#Shenmei Road, Pudong District, Shanghai，China
