Product details of the packaging machinery manufacturers

Quick Detail

The mechanical equipment produced by Techflow Pack has complete and diversified types. And it is highly practical, with reliable quality and reasonable price. Techflow Pack packaging machinery manufacturers is produced according to the high production standards through the combination of traditional craftsmanship and modern technology. With the help of advanced prodution equippment, Techflow Pack is able to produce quality products. The product has found increasingly wider application in the market due to its remarkable economic benefits.

Product Introduction

The packaging machinery manufacturers of Techflow Pack has the following advantages compared with packaging machinery manufacturers in the market.

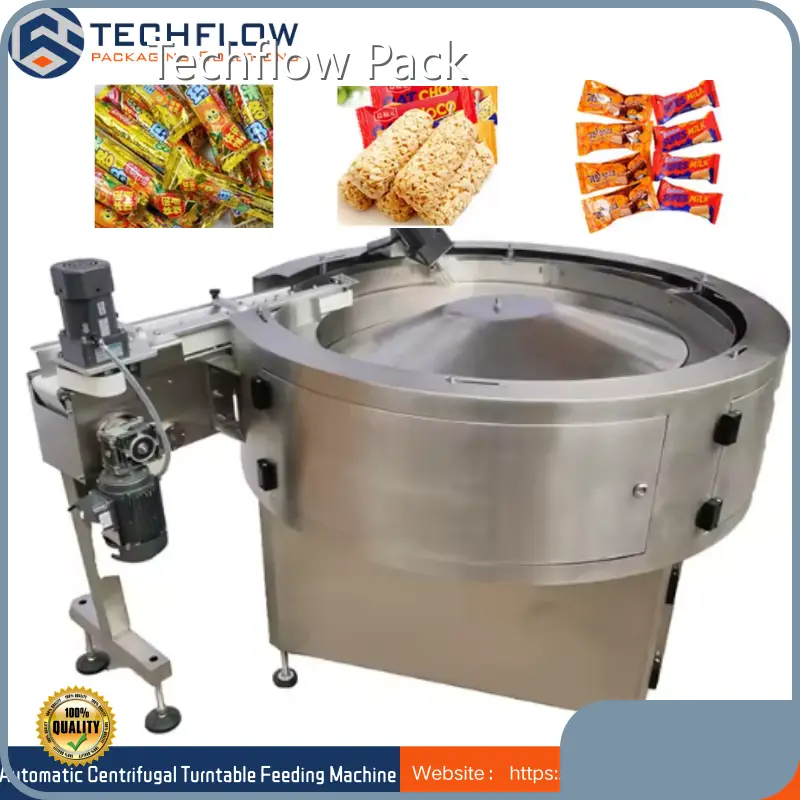

Automatic Centrifugal Turntable Sorting Machine

Product Description

The automatic centrifugal turntable sorting machine is a common industrial equipment used to transfer materials from one place to another during the production process. This centrifugal turntable machine uses centrifugal force to feed materials along the edge of the turntable rotates and pushes the material to the target location during the rotation. The centrifugal turntable usually consists of a rotating platform and a series of guide plates arranged around the edge of the platform.

Product Specifications

Techflow Pack is committed to helping customers achieve more optimized sorting and feeding solutions.

Machine model	TFP-ZP150
Products application	Regular shaped candy, cookie, snack sticks, bread etc.
Main turntable diameter	800/1000/1200mm(customized)
Construction type	Internal and external double disk
Main structure	S.S304
Production capacity	Max150packs/min
Power specifications	220/380v, 1.2Kw(customized)
Machine weight	300kg

Product Application

The centrifugal turntable machine is mainly applicable for food, daily necessities, chemical, pharmaceutical and other industries to arrange and array the transmission of the square, round, strip and other products. It can connect with production line or can also be manually fed.

PRODUCT STRENGTH

Products Advantages

Our centrifugal turntables are well-designed, with compact structure of inner and outer double centrifugal disks with speed difference, wide adjustable range and strong adaptability, which can be matched with horizontal flow wrap packaging or cartoning production lines.

Excellent quality

We have a stable supply chain with high quality and more than 10 years of cooperation, such as: SIEMENS/SEW/SICK.The main members of the design team all graduated from the domestic first-class university majoring in mechanical automation, and the average experience is more than 10 years.

Reasonable Prices

We know the centrifugal turntable machine market well, without compromising on after-sales service, we offer reasonable and competitive price quotations, and OEM/ODM and regional agency are also our business scope with more attractive price.

Strict quality control

Whether it is internal processing parts or outsourcing processing parts must be strictly controlled by the quality control department, so that the error of doing scrapping, large tolerances are not assembled.

Humanized design

The wiring adopts a quick-plug mechanism for easy on-site installation. The control part is embedded with remote control communication module, which is easy to update or reset the PLC system at a later stage.

WHY CHOOSE US?

Product Characteristics

Our centrifugal turntable sorting equipment is compact and occupies a small area, and can be flexibly laid out into the production line; it is cleverly designed, easy to clean, and easy to maintain.

radio_button_checked_FILL0_wght400_GRAD0_opsz48 (2)

The centrifugal turntable feeder can be adjusted to suit different types and sizes of materials by adjusting the speed of rotation and the angle of the guide plate as required.

Centrifugal feeding turntable are widely used in many industrial fields, such as food processing, pharmaceutical, chemical industry, etc.

Due to the centrifugal force, the material can be conveyed quickly and accurately to the target position, thus saving labor and time.

Product Details

The centrifugal turntable feeding machined is mainly composed of the main frame, double centrifugal disks, motor, sweeping brush, output slot and photoelectric system. The working principle of the centrifugal feeding turntable is very simple but very effective. When the platform rotates, the material will be pushed by the centrifugal force to the outside where the centrifugal force is the greatest. At the same time, the design of the guiding plate will make the material move along a specific path, thus ensuring that the material can be transported to the target smoothly.

Output slot

Adjustable width to accommodate a wide range of materials

Sweeping brush

Effectively reduce the stacking of materials in the process of high-speed rotation, and promote the orderly output of products.

Double Disks

Food-grade S.S304 double centrifugal disk to ensure high precise sorting

Centrifugal Turntable& Sorting Feeder

Configuration list

This configuration table is based on a regular production schedule and a relatively stable market supply and demand. Under special circumstances, some brands will be replaced with other brands of equivalent quality. The lowest prices in the indicated prices are based on domestic market configurations.

Main drive	SEW/GPG
Main frame	food-grade S.S304
Construction type	double disk
Invertor	Danfoss
Photo sensor	SICK
Electronic parts	Schneider
