Techflow Pack has been a professional automatic packaging machine manufacturer since 2006.
Packaging Machinery Manufacturers Cost
Product details of the packaging machinery manufacturers
Product Description
Techflow Pack packaging machinery manufacturers is designed and manufactured at par the market prevalent norms. The product is examined as per industry standards to make sure it is free from flaws. 上海利湃机械设备有限公司 always puts quality first and customer foremost in the first place.
product description

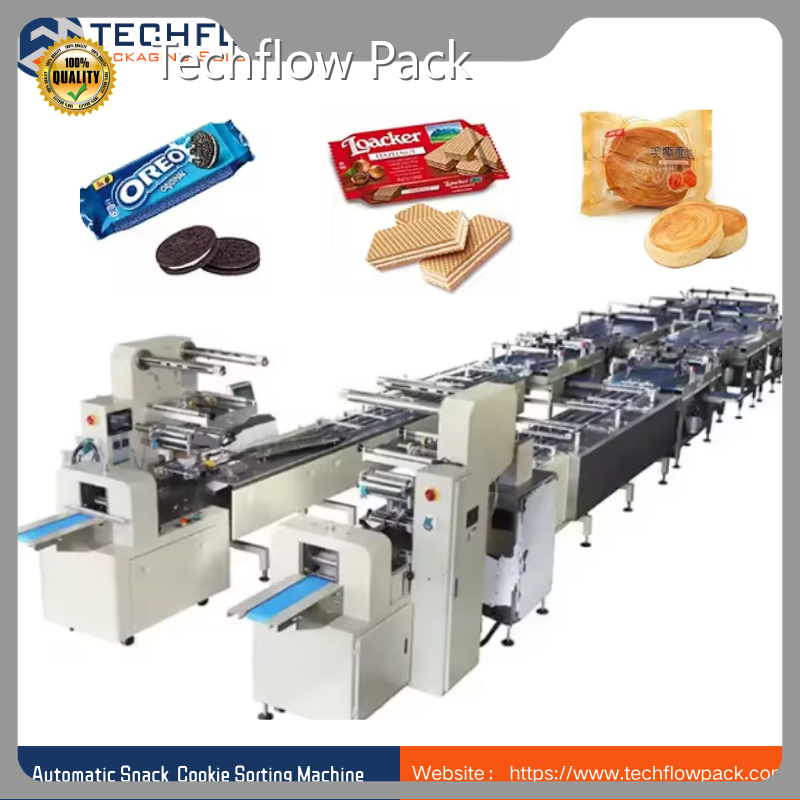

The Automatic Snack Cookies Sorting Machine adopts multi-section food-grade belt conveyor combined with multi-point photoelectric detection and tracking, and set up the corresponding multi-lane separation mechanisms according to the packaging form and output requirements of the subsequent packaging then transport the rows of biscuits to the feed end of the packaging machine in an orderly manner. This snack cookies sorting machine is usually inserted in the middle of the snack food production line with the front end connected to the biscuit making machine and the back end connected to the biscuit horizontal Flow Wrap packaging machine or cartoning machine.
Applications
This Snack cookie Sorting Machine is mainly used for automatic arraying and sorting of biscuits, cookies, bread, shortbread, candies and other products in snack food production lines.
Technical Features 01
The main belt conveyor line is industrial food grade, and the mechanical structure and frame are made of food grade 304 stainless steel and aluminum profiles, which are easy to clean and maintain.
Technical Features 02
Adopt multi-stage frequency conversion speed control, servo drive control,simple operation, stable operation and low energyconsumption.
Technical Features 03
The design of the multi-lane dividing mechanism allows the messy materials at the front to enter the next conveying station in an orderly manner according to the predetermined groups.
Technical Features 04
PLC control, multi-servo drives, multi-point photoelectric tracking, high precision and high sensitivity SICK electric eye tracking system, precisematerial position control. And optional visual recognition make material grouping, conveying, sorting and feeding more accurate and efficient.
Technical Parameters
|
Model |
TFP-SC200 |
|
Dividing format |
Electric+Pneumatic |
| Main conveyor width |
600/800/1000/1200mm |
|
Production capacity |
Max 200packs/min(single lane) |
|
Gas consumption |
50L/min |
|
Gas pressure |
0.6-08Mpa |
|
Power supply |
AC 380V, 3P 50Hz, 3.2Kw |
|
Machine dimension |
9000x950x1500mm |
|
Machine weight |
2000Kg |
Basic Configuration
|
No |
Items |
Brand |
|
1 |
PLC |
INOVANCE/SIEMENS |
|
2 |
HMI |
INOVANCE/SIEMENS |
|
3 |
Photo sensor |
SICK |
|
4 |
Main Drive |
SEW |
|
5 |
Electronic parts |
Schneider |
|
6 |
Pneumatic parts |
SMC/FESTO |
|
7 |
Frequency converters |
Schneider/Danfoss |
|
8 |
Main structure |
Stainless steel and Aviation aluminum |
Company Advantage
• Techflow Pack has many years of experience in the production of machinery. Based on the great production capability, we can provide customers with high-quality and affordable machinery as well as excellent custom services.
• Techflow Pack was founded in For many years, we have been making progress and advancing with the times. We have constantly learned advanced manufacturing technology at home and abroad and have introduced professional production equipment. This enables us to maintain our leading position in the fierce competition.
• Our company enjoys a superior geographical position, convenient transportation and developed communication. All that creates good external environment for our own development.
• Our team is composed of a group of senior staff in the industry. Each technician has a spirit of profession and dedication.
• At present, Techflow Pack constructs a huge sales network in China while actively opening up the international market.
Techflow Pack has sufficient stock of Auger Filler,Pouch Case Packer,Case Packer/Carton Packaging Machine,Case Erector/Carton Erector,Packing Line. We provide discounts for large quantity. We look forward to your consultation and contact!
