Techflow Pack has been a professional automatic packaging machine manufacturer since 2006.
Packaging Machine Supplier Factory
Company Advantages
· Techflow Pack draws inspiration from history to create packaging machine supplier.
· The product has passed a number of quality standards testing and has been certified in various aspects, such as performance, service life and so on.
· Our packaging machine supplier are of great performance for its highest quality.
product description

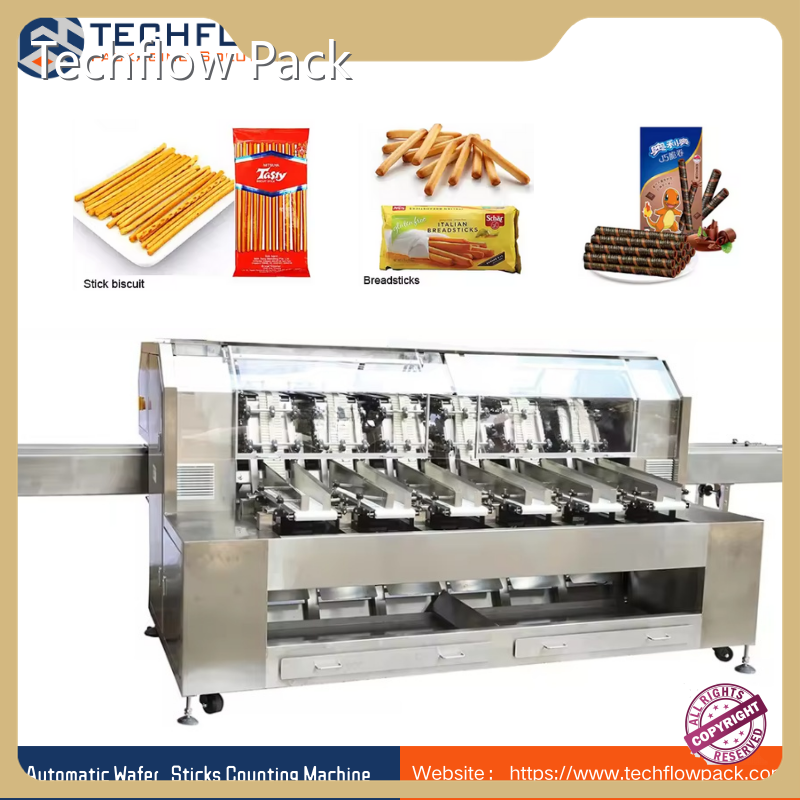

The automatic wafer sticks sorter counting machine consists of a main raw material storage bin, an equal-grid climbing belt conveyor, an integrated hopper, a photoelectric counting system, and a terminal output belt conveyor.Bulk sticks are transported from the raw material storage bin to the photoelectric counting system by the equal-grid climbing belt for counting. The quantitatively counted products load into the integrated hopper, and then enter the horizontal flow wrap packaging machine or cartoning machine station via the terminal belt conveyor.
Applications
Automatic Wafer Sorter Counting Machine is suitable for various stick shape products which need to count and pack such as breadstick, grissini, biscuit stick, chocolate dip cup, wafer roll, and ham sausage, crab stick, finger cookies, dipping stick cookies, coatedstick cookies, whole wheat bars, wafer rolls, and other stick shaped products etc.
Technical Features 01
The automatic wafer sorter counting system could finish automatically separating the tray, (biscuit stick, egg roll) counting the product and loading it into the tray automatically, sorting and packing function. No one touches the food in the whole packing process to reduce the
secondary pollution and meet the food hygiene requirement.
Technical Features 02
The process of sorting, conveying , feeding and packaging are fully automated, without manual operation.Customer can not only dump products on feeding belt by manual, but also connect with the production line Work in coordination, Speed change, automatic stop/start in case of material absence/supply and other intelligent control.
Technical Features 03
The automatic sticks sorter counting system realizing intelligently control the whole machine through the touch screen and embedded PLC real-time interactive operation. It collocates the product menu function that’s easy and quick to adjust the product.
Technical Features 04
PLC and servo control,touch screen display, packaging process visualization. Work stable, simple and convenient operation.
High precise and high sensitive SICK electric eye-tracking system to control accurately.
Technical Parameters
|
Model |
TFP-ZT300 |
|
Counting format |
Optoelectronic+ equal-grid belts |
|
Production capacity |
Max 120packs/min |
| Main belt width |
100/200 mm |
|
Power supply |
220V, 3Kw(customized) |
|
Machine dimension |
6000x1750x1300mm |
|
Machine weight |
1000Kg |
Basic Configuration
|
No |
Items |
Brand |
|
1 |
PLC |
Schneider/SIEMENS |
|
2 |
HMI |
Schneider/SIEMENS |
|
3 |
Photo sensor |
SICK |
|
4 |
Main Drive |
SEW |
|
5 |
Electronic parts |
Schneider |
|
6 |
Pneumatic parts |
SMC/FESTO |
|
7 |
Frequency converters |
Schneider/Danfoss |
|
8 |
Main structure |
Stainless steel and Aviation aluminum |
Company Features
· 上海利湃机械设备有限公司 is fully regarded as a powerful company in the field of packaging machine supplier.
· We have been awarded the honor of "Name Brand of China", "Advanced Export Brand", and our logo is rated with "Famous Trademark". This demonstrates our ability and credibility in the packaging machine supplier industry. So far, we have exported products to most parts of Asia and America. And we have got lots of appreciation from those customers based on our long-term stable cooperation. In recent years, our company's businesses have shown a steadily rising trend with yearly increasing profits, mostly due to the increased revenue in overseas packaging machine supplier markets.
· Our company strives for excellent customer service. We will continuously seek to improve each customer's experience by listening and striving to exceed our commitments.
Product Details
We will show you more detailed information of packaging machine supplier.
Application of the Product
Multiple in function and wide in application, packaging machine supplier can be used in many industries and fields.
Techflow Pack is dedicated to solving your problems and providing you with one-stop and comprehensive solutions.
Product Comparison
Compared with general products, the packaging machine supplier we produce have the following advantages.
No.99#Shenmei Road, Pudong District, Shanghai，China
