Techflow Pack has been a professional automatic packaging machine manufacturer since 2006.
Packaging Machine Supplier Cost-2
product description

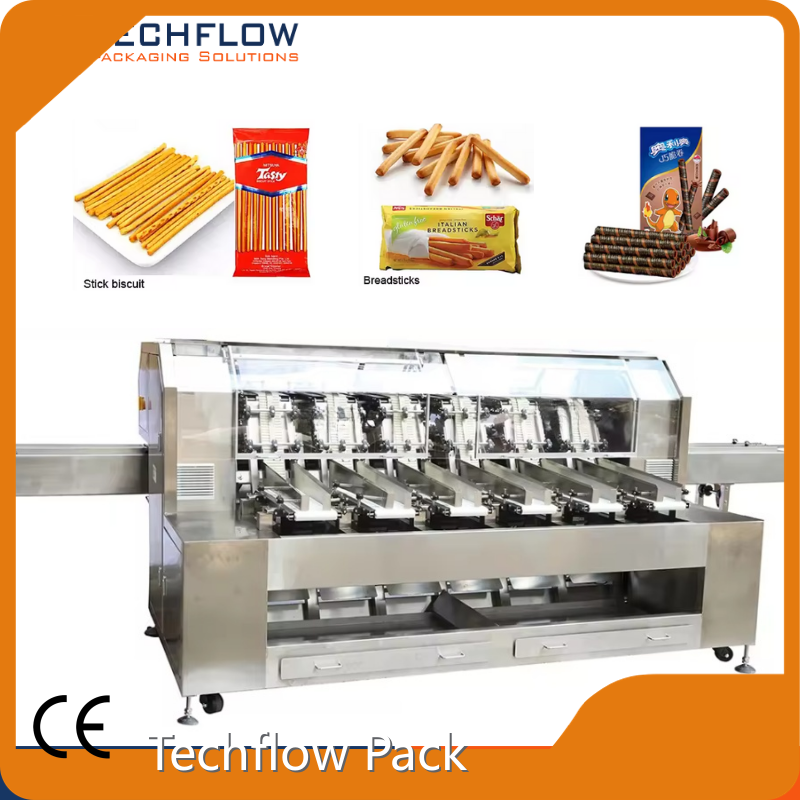

The automatic wafer sticks sorter counting machine consists of a main raw material storage bin, an equal-grid climbing belt conveyor, an integrated hopper, a photoelectric counting system, and a terminal output belt conveyor.Bulk sticks are transported from the raw material storage bin to the photoelectric counting system by the equal-grid climbing belt for counting. The quantitatively counted products load into the integrated hopper, and then enter the horizontal flow wrap packaging machine or cartoning machine station via the terminal belt conveyor.
Applications
Automatic Wafer Sorter Counting Machine is suitable for various stick shape products which need to count and pack such as breadstick, grissini, biscuit stick, chocolate dip cup, wafer roll, and ham sausage, crab stick, finger cookies, dipping stick cookies, coatedstick cookies, whole wheat bars, wafer rolls, and other stick shaped products etc.
Technical Features 01
The automatic wafer sorter counting system could finish automatically separating the tray, (biscuit stick, egg roll) counting the product and loading it into the tray automatically, sorting and packing function. No one touches the food in the whole packing process to reduce the
secondary pollution and meet the food hygiene requirement.
Technical Features 02
The process of sorting, conveying , feeding and packaging are fully automated, without manual operation.Customer can not only dump products on feeding belt by manual, but also connect with the production line Work in coordination, Speed change, automatic stop/start in case of material absence/supply and other intelligent control.
Technical Features 03
The automatic sticks sorter counting system realizing intelligently control the whole machine through the touch screen and embedded PLC real-time interactive operation. It collocates the product menu function that’s easy and quick to adjust the product.
Technical Features 04
PLC and servo control,touch screen display, packaging process visualization. Work stable, simple and convenient operation.
High precise and high sensitive SICK electric eye-tracking system to control accurately.
Technical Parameters
|
Model |
TFP-ZT300 |
|
Counting format |
Optoelectronic+ equal-grid belts |
|
Production capacity |
Max 120packs/min |
| Main belt width |
100/200 mm |
|
Power supply |
220V, 3Kw(customized) |
|
Machine dimension |
6000x1750x1300mm |
|
Machine weight |
1000Kg |
Basic Configuration
|
No |
Items |
Brand |
|
1 |
PLC |
Schneider/SIEMENS |
|
2 |
HMI |
Schneider/SIEMENS |
|
3 |
Photo sensor |
SICK |
|
4 |
Main Drive |
SEW |
|
5 |
Electronic parts |
Schneider |
|
6 |
Pneumatic parts |
SMC/FESTO |
|
7 |
Frequency converters |
Schneider/Danfoss |
|
8 |
Main structure |
Stainless steel and Aviation aluminum |
Company Advantages
· Techflow Pack packaging machine supplier is known for excellent quality and reliable performance.
· Strict quality tests are conducted to ensure longevity and cost effectiveness of this offered product.
· 上海利湃机械设备有限公司 keeps customers' need in mind and apply the state-of-art technology to provide professional services.
Company Features
· 上海利湃机械设备有限公司 is a highly competitive company which integrates R&D, manufacture, sale and service of packaging machine supplier.
· In order to meet up with market's high demands, 上海利湃机械设备有限公司 has successfully set up its own professional R&D base.
· Above and beyond the product needs, we strive to establish global logistics and support network to continuously deliver the extra services customers require to make their projects a success. Call now!
Application of the Product
The packaging machine supplier produced by Techflow Pack is very popular in the market and is widely used in industry.
Since the establishment, Techflow Pack has always been focusing on the R&D and production of Auger Filler,Pouch Case Packer,Case Packer/Carton Packaging Machine,Case Erector/Carton Erector,Packing Line. With great production capability, we can provide customers with personalized solutions according to their needs.
No.99#Shenmei Road, Pudong District, Shanghai，China
