Newautomatic Packing Machine
Product details of the automatic packing machine
Quick Detail
Techflow Pack's machinery is deeply favored by most customers for the following advantages: reasonable and novel design, compact structure, stable performance, and easy operation and installation. While producing Techflow Pack automatic packing machine, we highly value the importance of raw materials and choose the top one of them. The product conforms to the strict quality standard. 上海利湃机械设备有限公司 has been recognized by the industry for its integrity, strength and product quality.
Product Introduction
To better learn about automatic packing machine, Techflow Pack will provide detailed pictures and detailed information in the following section for your reference.
product description

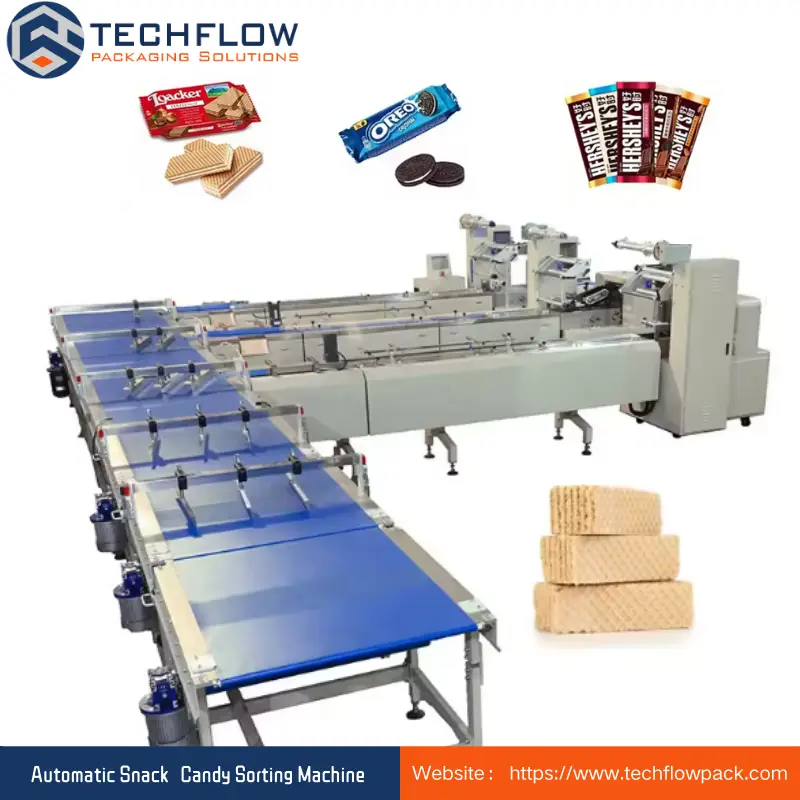

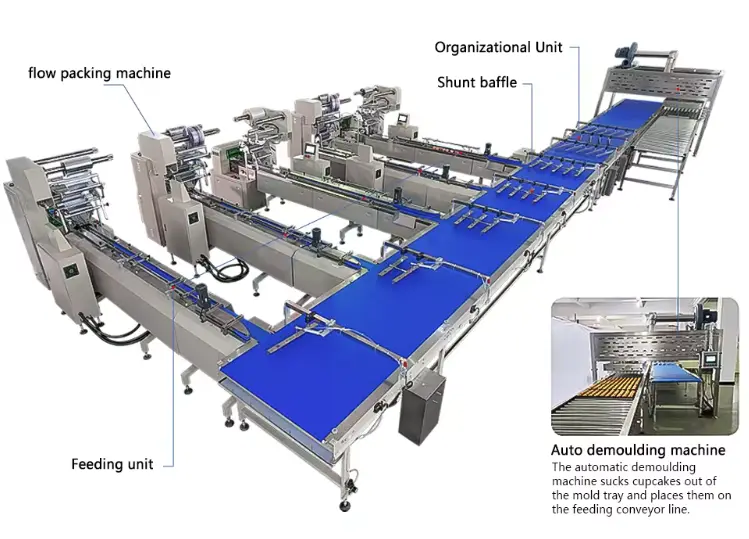

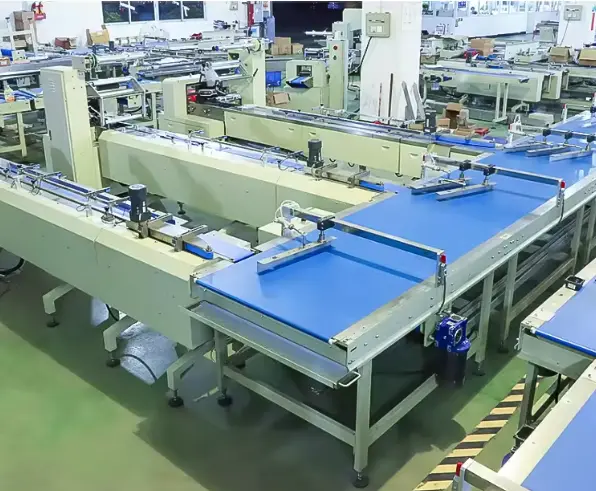

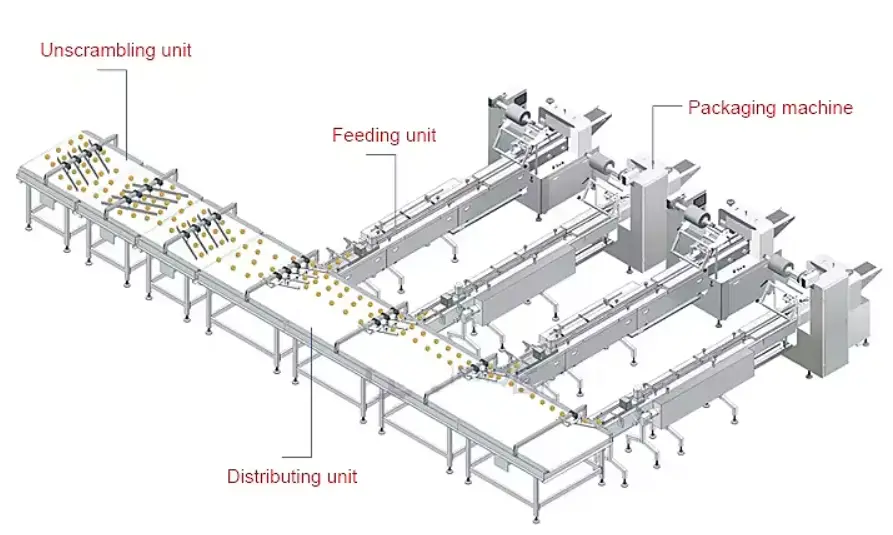

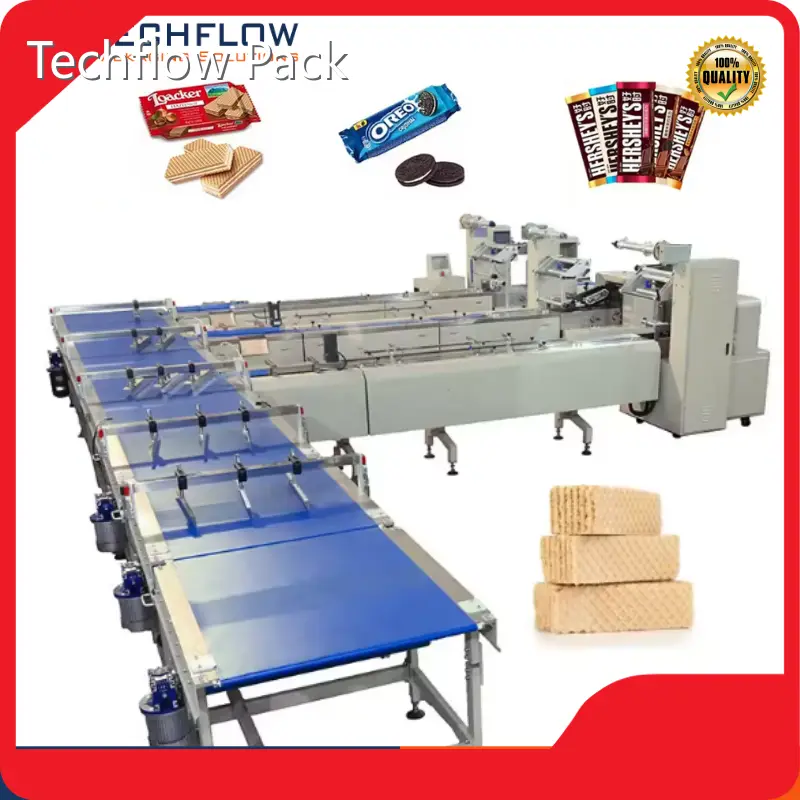

Automatic Candy Sorter Feeding Machine uses multi-stage Industry food-grade belt conveyor adding with SICK photoelectric tracking and set up the corresponding multi-lane dividing mechanisms based on the packaging format and outlet requirements of the subsequent packaging then feed the rows of candy products to the feed end of the packaging machine in an orderly manner. This Candy Sorter Feeding Machine is usually inserted in the middle of the Candy production line with the upstream connected to the candy making machine and the downstream connected to the candy Flow Wrap packaging machine or cartoner machine.
Applications
Automatic Candy Sorter Feeding Machine is mainly used for Candy, Cake, Chocolate snack food and other products of automatic grouping, arraying, sorting and feecding to achieve the purpose of secondary packaging preparation.
Technical Features 01
Using multiple sections of food-grade industrial conveyor lines with speed differences, supplemented by photoelectric tracking and visual recognition, the grouping and sorting are more efficient and accurate.
Technical Features 02

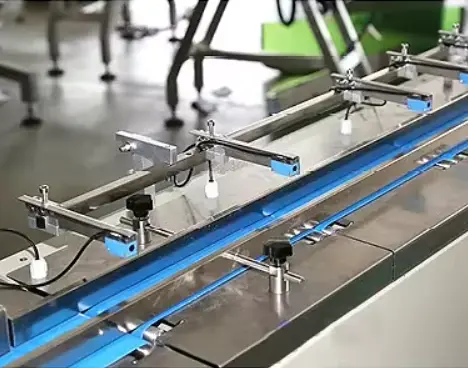

Set up a multi-column lane separation mechanism according to production capacity requirements, so that the products can travel in the established guidance direction after grouping to prepare for subsequent packaging.
Technical Features 03
lt adopts multi-level frequencyconversion speed regulation and servo drive control, which issimple to operate, stable in operation, high in control precision and low in energy consumption.
Technical Features 04
Using stainless steel and aluminum alloy structure, humanized design, installation, export-specific aviation wiring connector,disassembly and maintenance are simple and fast.
Technical Parameters
|
Model |
TFP-SC300 |
|
Arraying format |
Electric+Pneumatic |
|
Main conveyor width |
600/800/1000/1200mm |
|
Production capacity |
Max300pcs/min |
|
Gas consumption |
50L/min |
|
Gas pressure |
0.6-08Mpa |
|
Power supply |
AC 380V, 3P 50Hz,3.5Kw |
|
Machine dimension |
9000x950x1600mm |
|
Machine weight |
700Kg |
Basic Configuration
|
No |
Items |
Brand |
|
1 |
PLC |
Schneider/SIEMENS |
|
2 |
HMI |
Schneider/SIEMENS |
|
3 |
Photo sensor |
SICK |
|
4 |
Main Drive |
SEW |
|
5 |
Electronic parts |
Schneider |
|
6 |
Pneumatic parts |
SMC/FESTO |
|
7 |
Frequency converters |
Schneider/Danfoss |
|
8 |
Main structure |
Stainless steel and Aviation aluminum |
