Techflow Pack has been a professional automatic packaging machine manufacturer since 2006.
Techflow Pack Vffs Machine Manufacturers -
Product details of the vffs machine manufacturers
Product Overview
vffs machine manufacturers is manufactured based on high-quality materials. It has advantages such as stable performance, reliable quality, flexible operation, high firmness, and long-lasting durability. It receives trust and support from many customers. Monitored production process: the production process of Techflow Pack vffs machine manufacturers is strictly and constantly monitored. A 24 hours shift system is carried out to ensure high-efficiency production. The products are distinguished by reliable quality, stable performance and long service life. vffs machine manufacturers is widely used in the production, processing, and packaging of various types of food. 上海利湃机械设备有限公司 evolves each day to meet the dynamic needs of this industry.
Product Introduction
Techflow Pack's vffs machine manufacturers has more advantages over similar products in terms of technology and quality.
Product Description

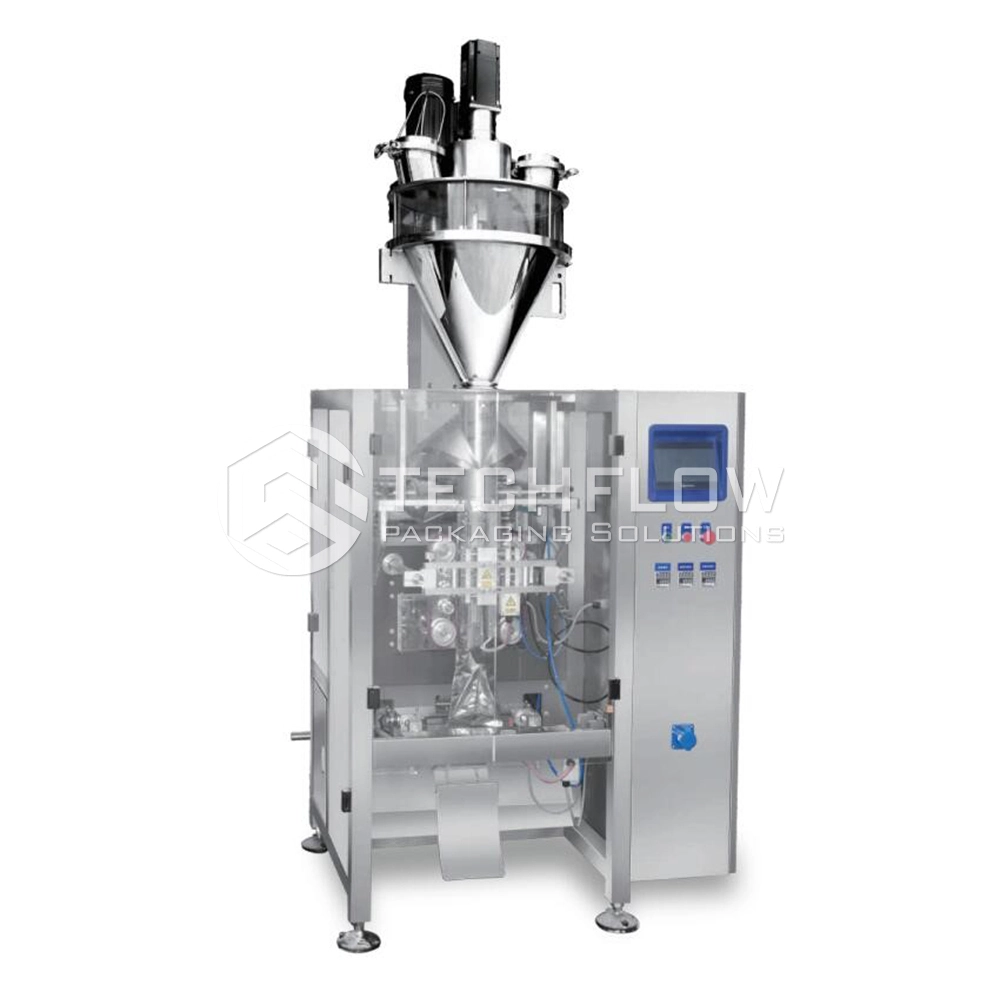

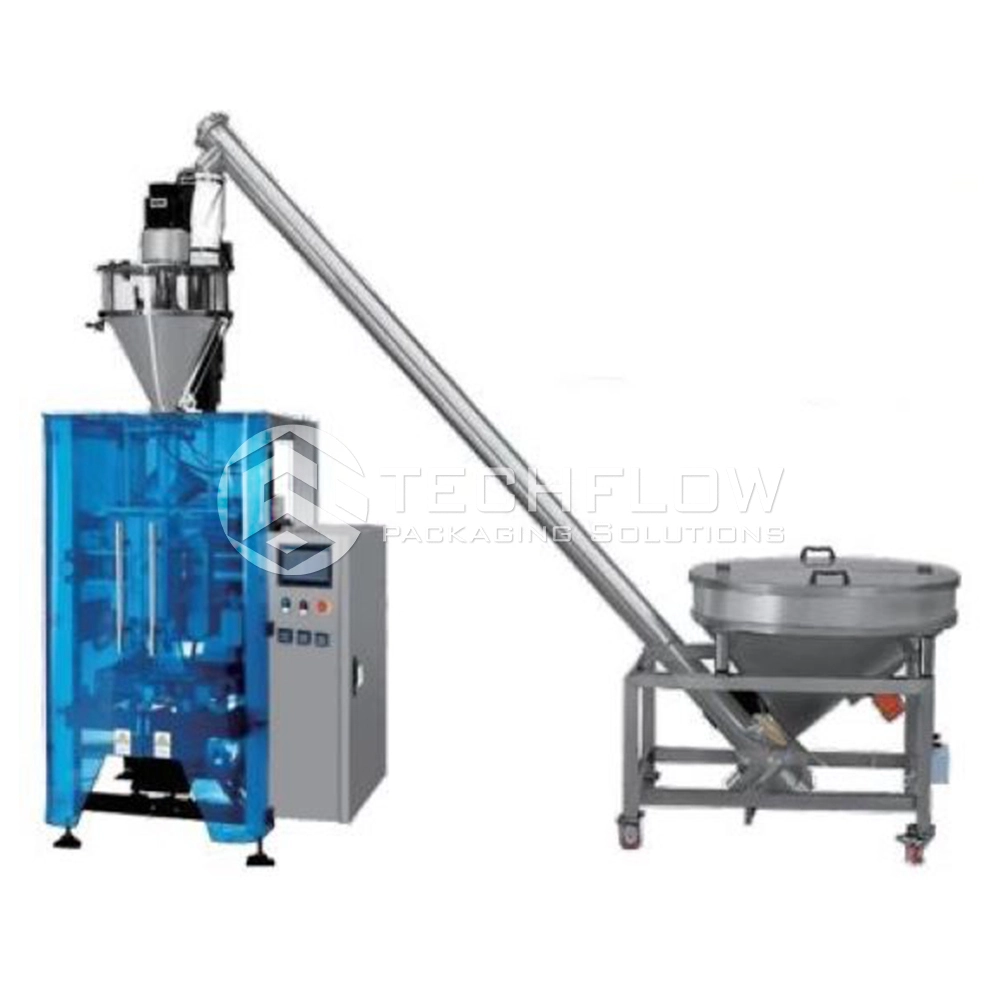

Automatic VFFS Powder Packaging Machine also called VFFS powder filler or VFFS powder packaging machine, is mainly used for powdery or fine granule products auto forming filling sealing by the packaging roll film. The working method is the screw conveyor linked to the VFFS machine to get powdery materials auto infeeding and conveying into Auger Filler's hopper, with screw running to auto dosing the product into pouch for auto forming filling and sealing. According to the pouch or bag's shape, there are some types bag to produce on the VFFS machine such as Pillow bags, Gusset Bags, Standing Box Bags. And the packing speed could be adjustable according to the production capacity from 30-80bags per minute.
Applications
VFFS Powder Packing Machine is the most common dosing equipment in the powder metering and powder packaging industry. It's suitable for filling and dosing a variety of powders or fine particles such as flour, coffee powder, milk powder, tapioca flour, seasoning powder, chemical powder and other materials into pillow bags or gusset bags with auto forming and sealing. It's widely used in food, condiments, seasoning,coffee, beverage, pharmaceutical and other industries
Technical Features 01
Use PLC Servo System and pneumatic control system and super touch screen to compose the drive control center which maximize the whole machine's control precision,reliability and intelligentized level.
Technical Features 02
Equipped with safety protection, comply with firm's safety management requirements.Use intelligent temperature controller to have accurate temperature, which ensures the artistic and neat seal.
Technical Features 03
With error indicating system , which help to handle the trouble immediately.Make pillow bags and hanging bags in terms of customers' different requirements.
Technical Features 04
The unique mechanical structure can adapt to a variety of packaging materials, especially for the single-layer PE film, which can significantly save the cost of consumables.
Technical Parameters
|
Machine Model |
VFFS420 |
|
Metering method |
Screw quantitative |
|
Bag's application size |
(L)80-300mm, (W)80-200mm |
|
Production capacity |
Max 80pcs/min |
|
Filling volume |
100-5000ml(by screw changover) |
|
Gas pressure |
6-8 kg/cm2 0.3m3/min |
|
Power supply |
220/380V 50-60Hz, 3.5Kw |
|
Machine dimension |
1650x1100x1500mm |
|
Machine weight |
350Kg |
Basic Configuration
|
No |
Items |
Brand |
|
1 |
Main motor |
GPG |
|
2 |
Vibrating motor |
CPG |
|
3 |
Material Level sensor |
SICK |
|
4 |
Vibrating inverter |
INOVANCE |
|
5 |
Vacuum pump |
Roots |
Company Introduction
上海利湃机械设备有限公司 has been in the vffs machine manufacturers sector for several years. The products are quality controlled in each step of production. 上海利湃机械设备有限公司 has been striving for higher status in the industry of vffs machine manufacturers. Get quote!
Hello, thanks for visiting the site! If you have any interests or questions about Techflow Pack's Auger Filler,Pouch Case Packer,Case Packer/Carton Packaging Machine,Case Erector/Carton Erector,Packing Line, you can call our hotline. We are dedicated to serving you.
No.99#Shenmei Road, Pudong District, Shanghai，China
