Product details of the packaging machinery manufacturers
Product Introduction
The product is tested by the team of professional to ensures its durability. As any defects are completely eliminated in the inspection process, the product is always in the best quality state. By virtue of the size of the company and a strict management system, 上海利湃机械设备有限公司 provides customers with cost-effective products and services.
Screw metering principle

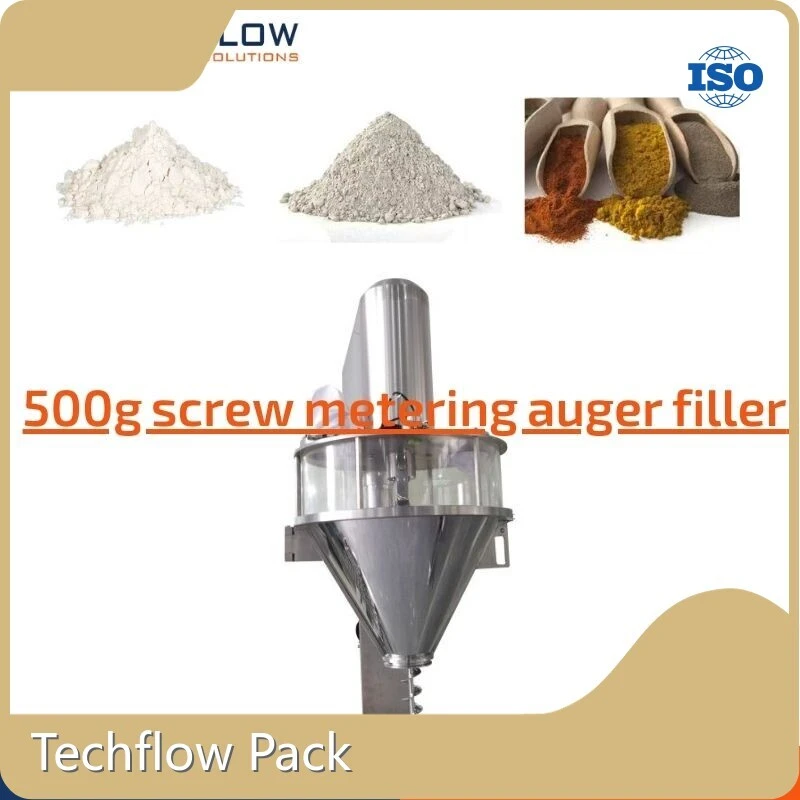

Auger Filler Head is mainly composed of drive motor, hopper, screw, shaft, agitator, screw mounting sleeve, etc. The rotary feeding of the screw is powered by the servo motor, and the control signal of the number of rotation turns of the screw is calculated by the PLC according to the set weight value and material density to obtain the corresponding pulse signal, and then transmitted to the servo motor drive, and then driven by the servo drive according to the input signal of the PLC to rotate the corresponding number of turns, and drive the screw rotation by the synchronous belt to complete each filling feeding process, which can accurately control the number of rotation turns of the screw, thereby improving the accuracy of feeding.
Applications
The auger head is the most common feeding device in the powder metering and powder packaging industry, which can be applied to the quantitative measurement of a variety of powders or fine particles such as flour, coffee powder, milk powder, tapioca flour, seasoning powder, chemical powder and other materials. The head is usually assembled into the FFS pouch packaging machine or Powder Filler for quantitative metering and dispensing of materials.
Technical Features 01
The structure of whole machine is made by stainless steel material except of motor,in particular the application of GMP,food sanitation certification.
Technical Features 02
Servo motor driving screw is characteristics of high-precision orientation,high-speed,stable performance.
Technical Features 03
Weight feedback and proportion track get rid of the shortage of variable packaged weight for various proportion of different material.
Technical Features 04
It can match a variety of packaging equipment, such as vertical machine, horizontal machine, linear filling machine, rotary filling machine, etc
Technical Parameters
|
Machine Model |
TFP-3AL |
|
Metering method |
Screw quantitative |
|
Filling range |
Max500ml |
|
Filling accuracy |
<0.3%-1% |
|
Dosing speed |
Max70 pcs/min(according to dosing weight and material's flowing ability) |
|
Hopper volume |
25L |
|
Power supply |
380/220V 50-60Hz, 0.8Kw |
|
Machine weight |
100kg |
|
Machine size |
1050x800x850mm |
Basic Configuration
|
No |
Items |
Brand |
|
1 |
Photo sensor |
SICK |
|
2 |
Main motor |
GPG |
|
3 |
Servo motor |
INOVANCE/SIEMENS |
|
4 |
Main structure |
S.S304 |
Company Advantage
• In the past years, Techflow Pack has been focusing on the R&D and manufacturing of machinery. Our machinery gains the trust and recognition for high cost performance, good quality, and favorable price.
• Our machinery is provided with advantages of compact structure, novel design, stable performance and convenient operation and so on.
• Our company has an elite team of experienced and highly skilled professionals.
• Our company adheres to the customer-oriented service concept. We always provide customers with efficient, professional and high-quality custom services from the perspective of customers.
• Our company has a mature service team to provide suitable services for consumers.
If you want to know more detailed information, feel free to consult Techflow Pack.
