Automatic Powder Packing Machine Techflow Pack Company

Product details of the automatic powder packing machine

Product Description

Our distinguished design makes automatic powder packing machine more attractive. This product is widely appreciated by customers, with excellent performance and longer service life. There is room for continuous development for this product.

Screw metering principle

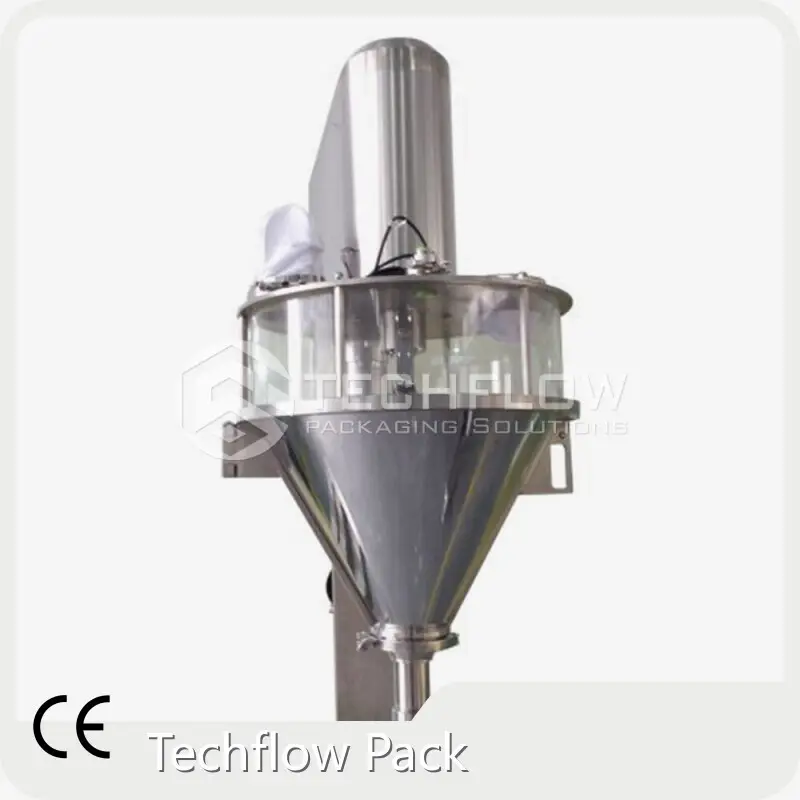

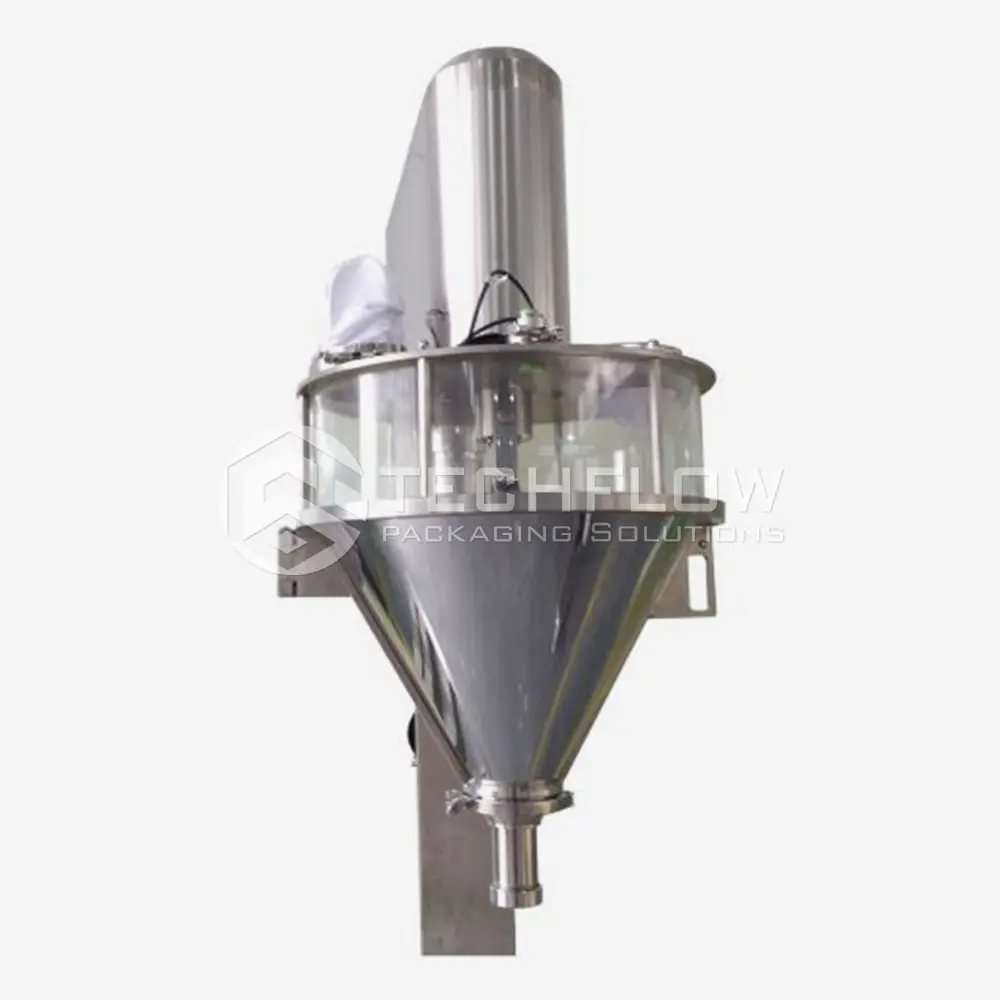

Auger Filler Head is mainly composed of drive motor, hopper, screw, shaft, agitator, screw mounting sleeve, etc. The rotary feeding of the screw is powered by the servo motor, and the control signal of the number of rotation turns of the screw is calculated by the PLC according to the set weight value and material density to obtain the corresponding pulse signal, and then transmitted to the servo motor drive, and then driven by the servo drive according to the input signal of the PLC to rotate the corresponding number of turns, and drive the screw rotation by the synchronous belt to complete each filling feeding process, which can accurately control the number of rotation turns of the screw, thereby improving the accuracy of feeding.

Applications

The auger head is the most common feeding device in the powder metering and powder packaging industry, which can be applied to the quantitative measurement of a variety of powders or fine particles such as flour, coffee powder, milk powder, tapioca flour, seasoning powder, chemical powder and other materials. The head is usually assembled into the FFS pouch packaging machine or Powder Filler for quantitative metering and dispensing of materials.

a1

a3

a2

Technical Features 01

The structure of whole machine is made by stainless steel material except of motor,in particular the application of GMP,food sanitation certification.

Technical Features 02

Servo motor driving screw is characteristics of high-precision orientation,high-speed,stable performance.

Technical Features 03

Weight feedback and proportion track get rid of the shortage of variable packaged weight for various proportion of different material.

Technical Features 04

It can match a variety of packaging equipment, such as vertical machine, horizontal machine, linear filling machine, rotary filling machine, etc

Company Advantage

• Our company has a strong customer service team to offer customers pre-sales, on-purchase and after-sales services.
• We introduce and cultivate talents to form a team of high quality. They make contribution to the construction of complete management system.
• With a focus on customers, Techflow Pack can develop and produce quality machinery products and provide efficient and professional custom services, according to customers' actual needs.
• Techflow Pack was founded in For many years, we have been making progress and advancing with the times. We have constantly learned advanced manufacturing technology at home and abroad and have introduced professional production equipment. This enables us to maintain our leading position in the fierce competition.
• Techflow Pack's mechanical equipment has reasonable design, compact structure and stable performance. Besides, our product is easy and convenient to be operated and installed.
Techflow Pack's tools are quality and affordable. Feel free to call us or visit our company. We sincerely look forward to your guidance and cooperation.
