Product details of the pouch packing machine
Product Introduction
The whole production process of Techflow Pack pouch packing machine relies on our advanced production technology. All incoming materials are inspected to ensure they match the quality requirement. 上海利湃机械设备有限公司 greatly makes an emphasis on the before sale, sale and after-sale technical support.
Product Description

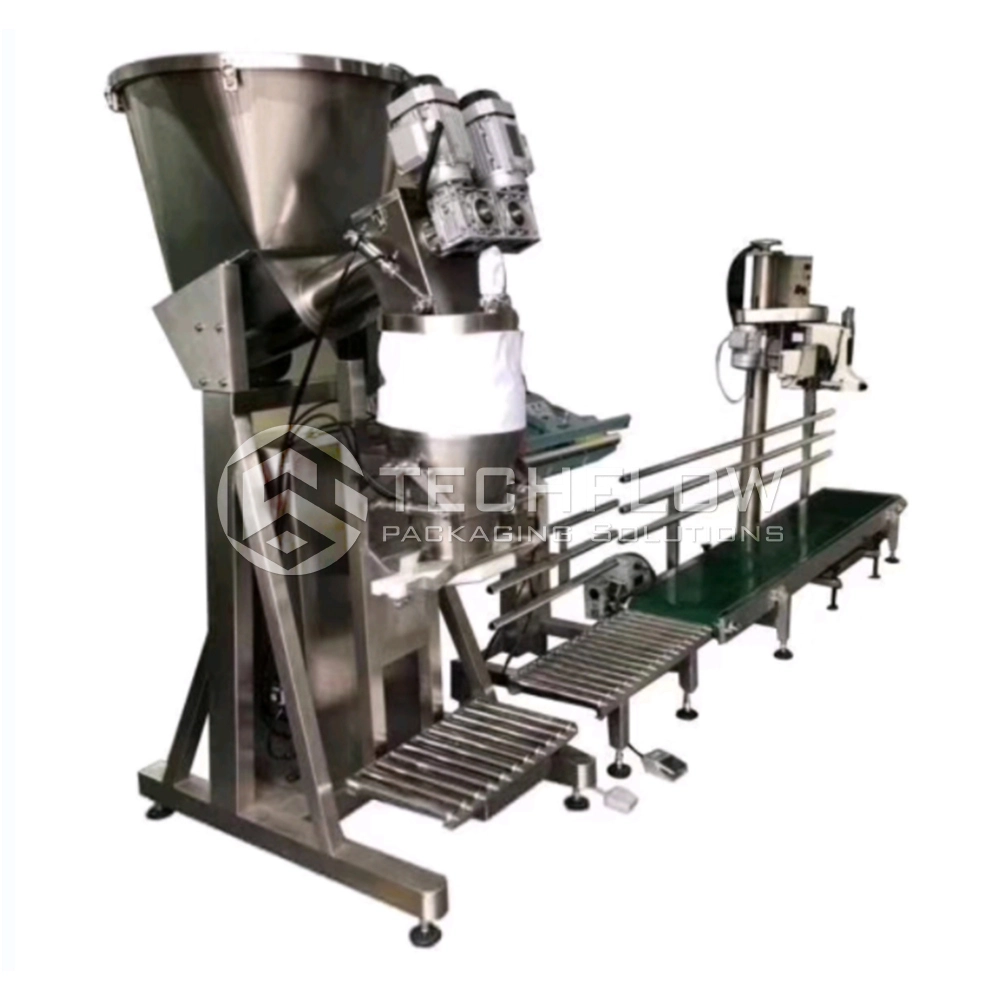

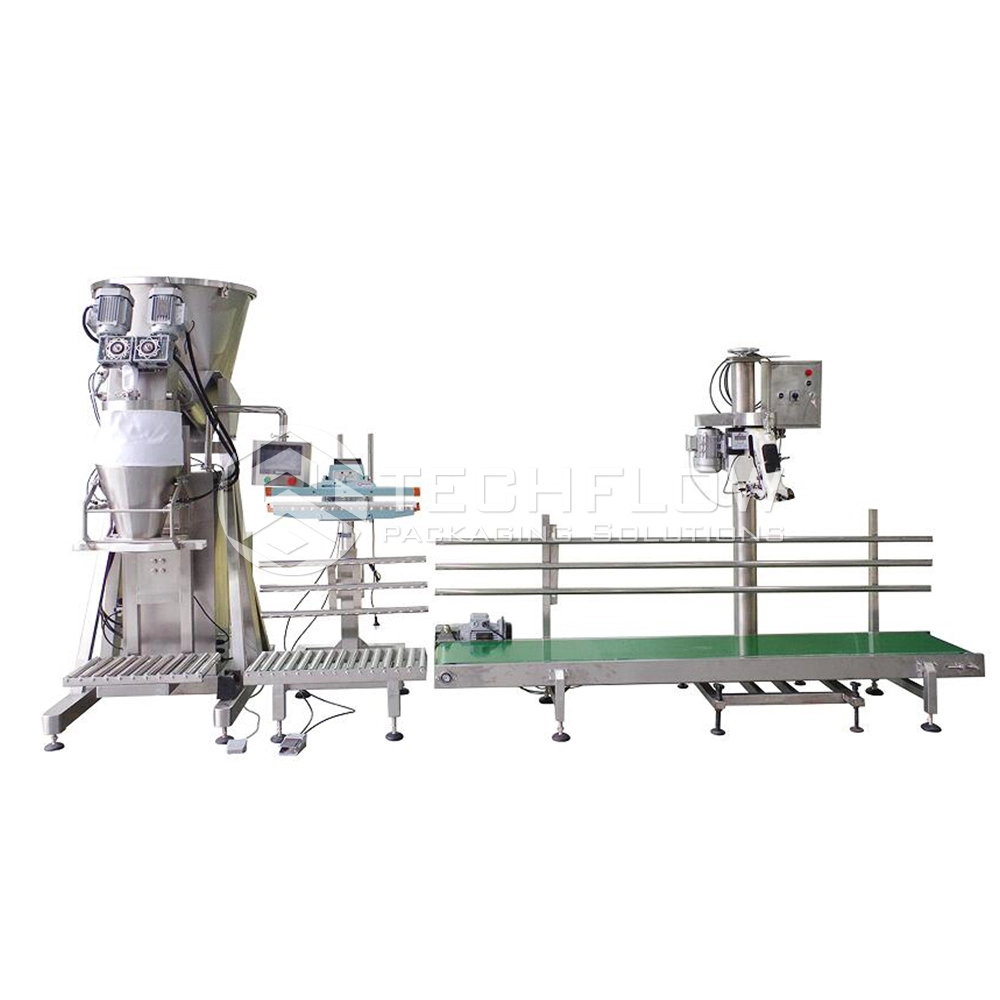

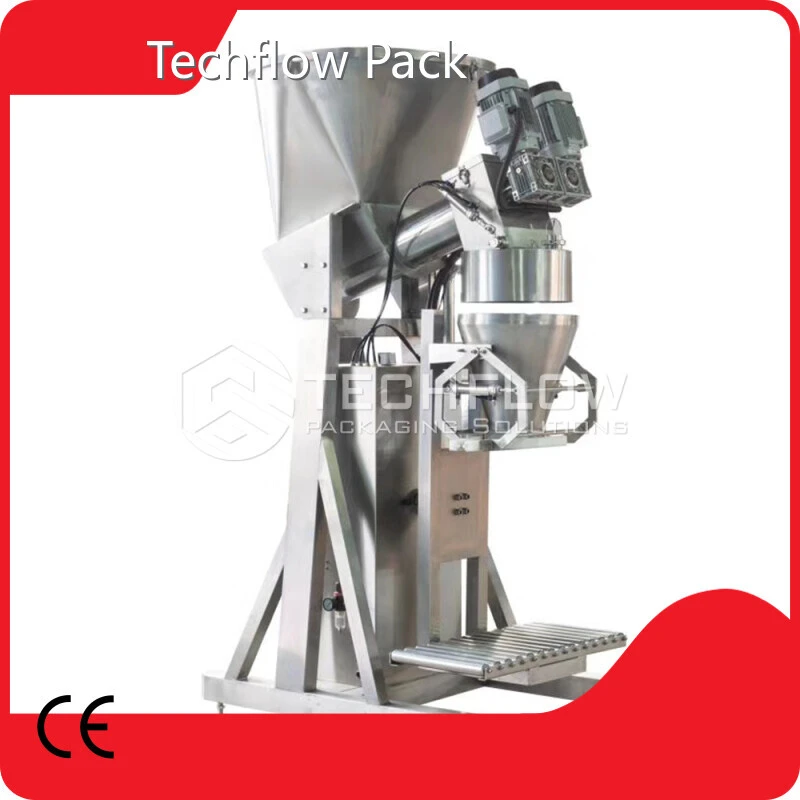

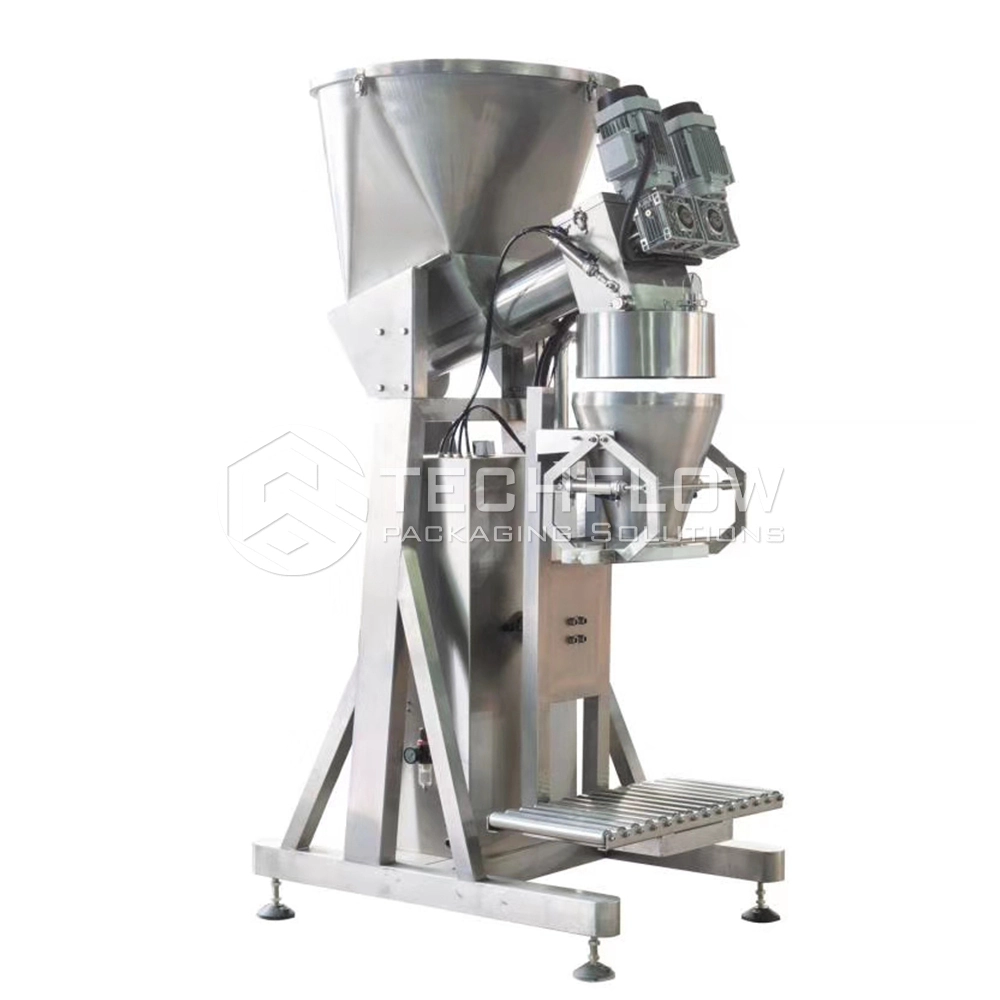

The Semi-automatic Open-mouth Bag Filling Machine also called semi-auto Auger Filler is OEM designed for Europe Agent. It can be applied to the quantitative measurement of a variety of powders or fine particles with big dosing 10-50kg such as flour, coffee powder, milk powder, tapioca flour, seasoning powder, chemical powder and other materials.
Applications
Semi-Automatic Open-Mouth Bag Powder Filling Machine is mainly used for powdery or fine granular product’s 25-50kg quantitative open-mouth bag filling and dosing such Kraft paper bag, pre-formed plastic bag, woven bag.
Technical Features 01
Adopt a new type of international popular production control system: high-precision and high-speed special metering control instrument, with strong functions, high reliability, greater flexibility and scalability characteristics, fully adapted to the production process repeated and highly continuous production.
Technical Features 02
The machine is a new type of mechatronics equipment, using computer control technology, imported high-precision load cells, and the material contact place is uniform for 304 manufacturing.It has the functions of overshoot suppression, automatic correction of drop, automatic alarm of out-of-tolerance, etc.
Technical Features 03
It adopts large and small double screw feeders and is equipped with turbo geared motors. The double spiral pipe diameter is different, and the large feeding spiral pipe diameter is 159 speed ratio 1/7.5, and the material is quickly filled. The diameter of the small feeding screw pipe is 89 speed ratio of 1/10, and the slow feeding speed is used to ensure accuracy.
Technical Features 04
Configure the top negative pressure discharge port, which is closed with a filter bag during installation to effectively reduce the air content in the packaging bag.
Technical Parameters
|
Model |
TFP-1C1 |
|
Metering Mode |
Gross weight with double screw feeding |
|
Weight Range |
15-50kg |
|
Packing Accuracy |
≤0.3% |
|
Packing Speed |
1-3bags/min |
|
Power Supply |
380/220 50HZ |
|
Total Power |
3.9KW |
|
Machine Weight |
280kg |
|
Air source |
6-8 kg/cm²; 0.2 m³/min |
Basic Configuration
|
No |
Items |
Brand |
|
1 |
PLC |
SIEMENS |
|
2 |
HMI |
SIEMENS |
|
3 |
Photoelectric |
Autonics/SICK |
|
4 |
Electronic parts |
Schneider |
|
5 |
Invertor |
DELTA |
|
6 |
Motor |
SEG |
|
7 |
Scale Sensor |
Zemic |
