Company Advantages

· Techflow Pack draws inspiration from history to create packaging machinery manufacturers.

· We make use of guaranteed raw material that is procured for trusted vendors to guarantee the quality of this product.

· 上海利湃机械设备有限公司 has realized high standardized governance, high management efficiency, high degree of marketization and strong operating capabilities.

Working principle

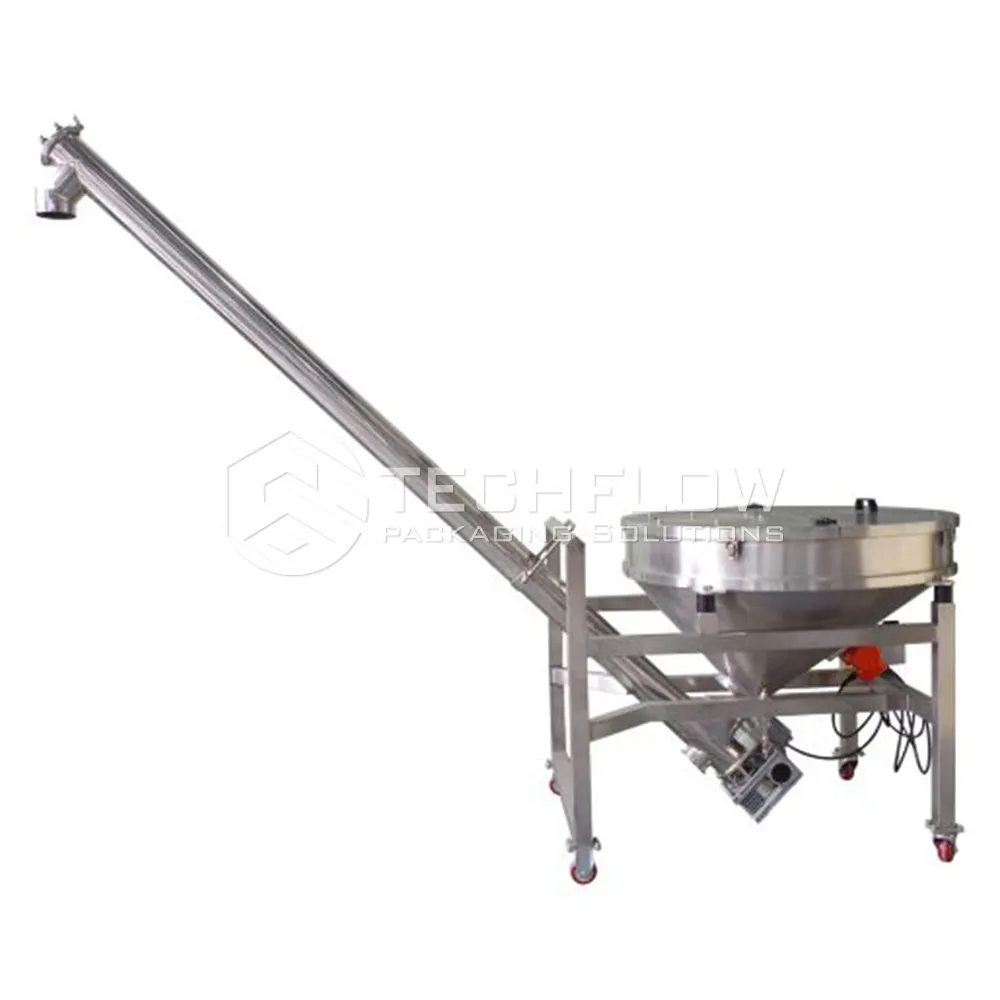

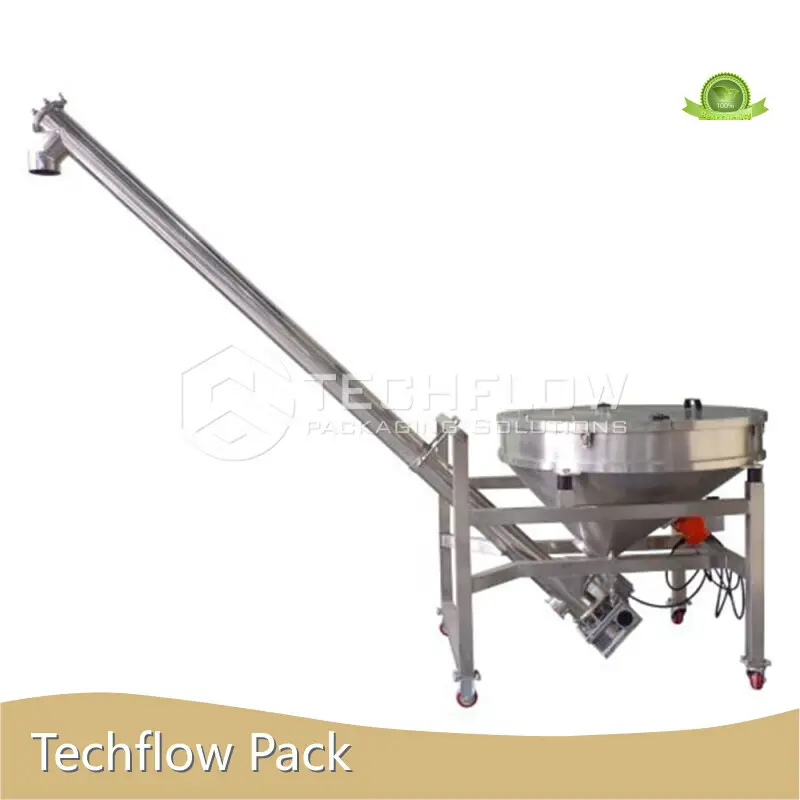

Screw conveyor also called Screw feeder or Screw type Bucket Elevator,  is a kind of machinery that uses a motor to drive the screw rotation and push the material to achieve the purpose of conveying. The working principle is that when the screw shaft rotates, due to the gravity of the material and the friction generated by the trough wall, the material can only move forward along the bottom of the conveyor under the push of the blades, as if the nut that cannot be rotated makes translational movement along the rotating screw. The main forward force of the material is the force that comes from the helical blade to move the material up and forward in the tangential direction of the blade when it rotates axially.

未标题-1 (12)

In order to make the screw shaft in a more favorable tensile state, the drive device and the discharge port are generally placed at the same end of the conveyor, and the feeding port is placed near the tail of the other end as much as possible. The rotating screw blades move the material and convey it, so that the force of the material not rotating with the screw conveyor blade is the weight of the material itself and the frictional resistance of the screw conveyor casing to the material. The surface type of the blade has solid surface type, belt surface type, blade surface type and other types according to the different materials to be conveyed. The screw shaft of the screw conveyor has thrust bearings at the end of the material movement direction to give the axial reaction force of the screw with the material, and when the length of the machine is long, an intermediate hanging bearing should be added.


Screw conveyor is applicable of conveying various of powder materials to form a complete set of packaging system. With the level sensor to realize the auto level tracking feeding and controlling.It is the most common feeding device in the powder feeding and powder packaging industry, which can be applied to the quantitative measurement of a variety of powders or fine particles such as flour, coffee powder, milk powder, tapioca flour, seasoning powder, chemical powder and other materials.

12 (3)
12 (3)
11 (3)
11 (3)
13 (3)
13 (3)

Technical Features 01

The structure of whole machine is made by stainless steel material except of motor,in particular the application of GMP,food sanitation certification

23 (20)
21 (24)

Technical Features 02

Using high quality stable vibration motor to avoid the sticky powder products poor fluidity during the working.

Technical Features 03

Separation modular designing for Screw feeding tube and Vibration hopper ensure the running more smoothly.

24 (17)
25 (3)

Technical Features 04

The Level sensor and intelligent control also available to add on to carry on material level control and overload alarm.

Technical Parameters




Feeding height

normal 2meter(or customized)

normal 2meter(or customized)

Bucket volume

120L or customized

120L or cusomtized

Pipe diameter



Production capacity



Power Supply

380/220 50HZ

380/220 50HZ

Total Power



Machine Weight




S.S304 or customized

S.S304 or customized

Basic Configuration





Main motor



Vibrating motor



Material Level sensor



Vibrating inverter

Domestic brand


Main switch+Start Switch +Emergency Switch + Intermediate relay + Contractor +Thermal protection



Sieve size

20x20mm or customized


Top cover

Cover with 4 locks, and opened in 1/3 and 2/3


Air vent hole diameter

100mm and this hole located in the top cover's 2/3


Inverter for screw right and left - hand rotation

Domestic brand

Company Features

· 上海利湃机械设备有限公司 has set foot in the development, design, and manufacture of packaging machinery manufacturers years ago. We have gained market recognition over the years.

· We own a manufacturing plant that is near to the material source and packaging machinery manufacturers market, which greatly contributes to reducing and saving transportation costs. We have a team of professionals in charge of customer service. They are qualified in communication and language skills. Besides, they can always offer clients valuable information regards to product types, functions, prices, delivery, customization, after-sales services, etc. Our company has a pool of talents in R&D. Most of them are highly educated and well qualified in the packaging machinery manufacturers field with years of experience. They are able to offer any product development or upgrading solutions for clients.

· To further promote the company’s corporate competitiveness, Techflow Pack pays more attention to the application of packaging machinery manufacturers. Call now!

Product Comparison

Compared with the products in the market, the packaging machinery manufacturers produced by our company has the following advantages.

Enterprise Advantages

With abundant talents resources, Techflow Pack established an experienced elite team. They have rich experience in relevant fields, including brand management, marketing promotion, and technology development. All this provides strong support for corporate development.

Techflow Pack carries out the service model of 'standardized system management, closed-loop quality monitoring, seamless link response, and personalized service' to provide comprehensive and all-around services for consumers.

Our company abides by the business philosophy of 'people-oriented, harmony and unity, cooperation and win-win'. We hold the spirit of focusing on innovation and pursuing excellence during the development. With the focus of meeting customer's needs, we improve the service management system and enhance brand awareness. By actively exploring new markets, we strive to be the industry leader.

Techflow Pack becomes a modern enterprise with great social influence after years of development.

We sell our products well in the domestic market and export them to different countries and regions all over the world, depending on the high-quality product and service.
